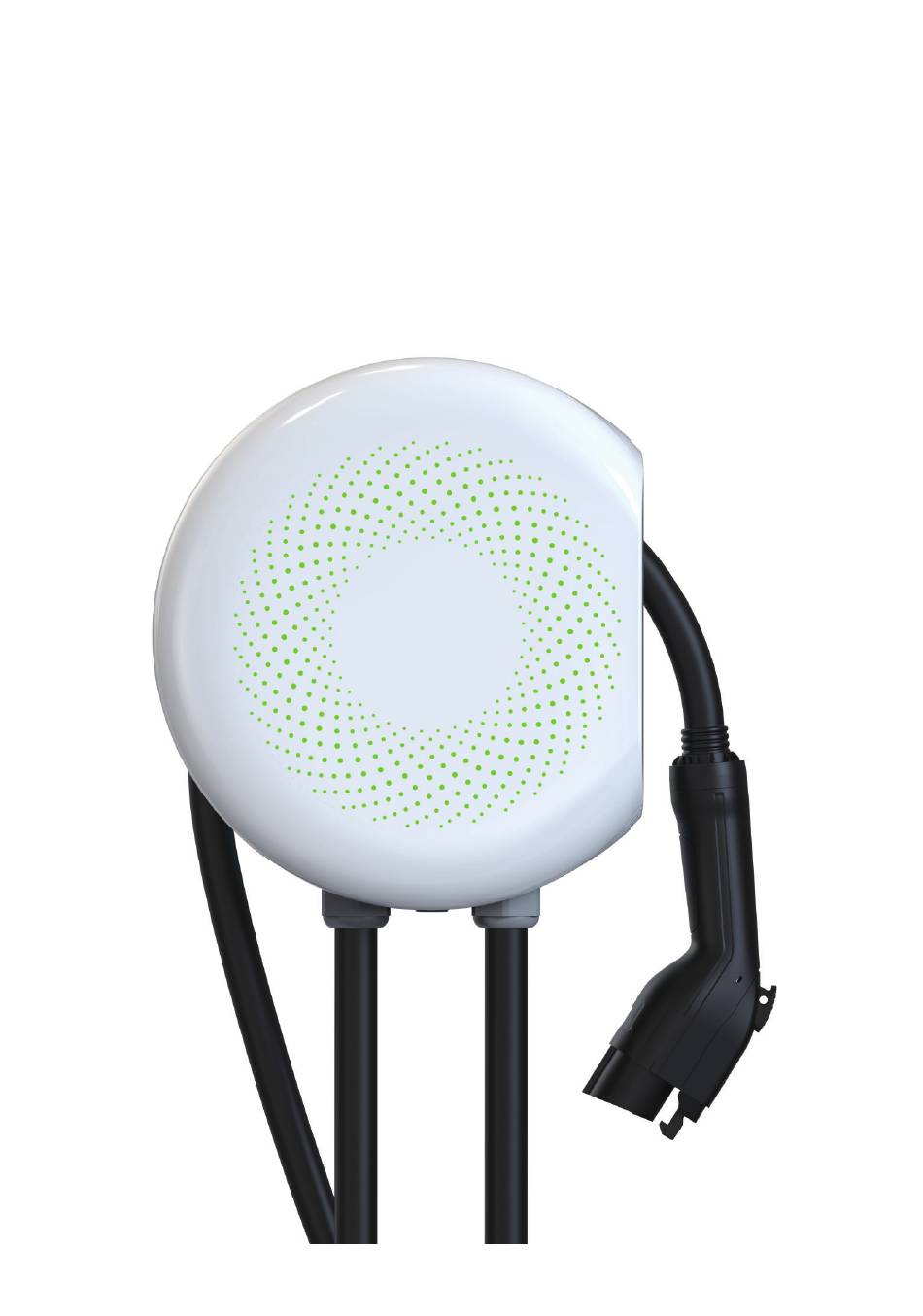

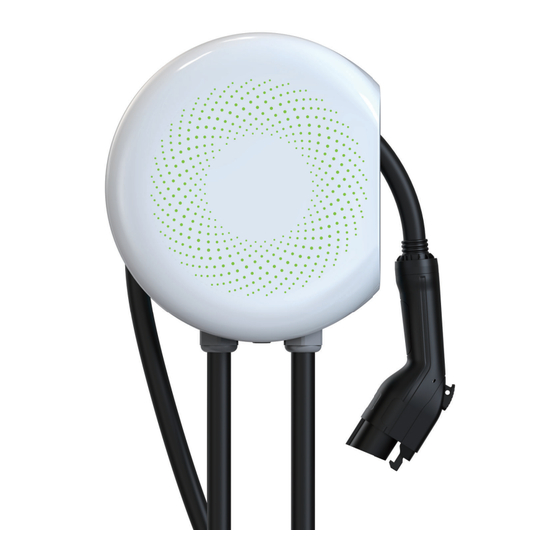

- Page 1 Izar AC Charger User & Installation Manual...
- Page 2 Sinexcel Electric Co,. Ltd. 12. Do not operate Izar in temperatures outside its operating range. For Sinexcel Co., Ltd is not responsible for any charging stations set to 40A/48A, the range is -22˚F to +122˚F (-30˚C to damages that may occur resulting from custom +50˚C).
- Page 3 The copyright of contents, pictures, logos, symbols, etc. used in this manual are all owned by Sinexcel. Without written authorization, it is forbidden to disclose, excerpt and copy part or all of the contents of this manual (including materials and publications).
- Page 4 WiFi and Bluetooth Wireless Function Declaration This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Table Of Contents
CONTENT CONTENT INSPECTION BEFORE INSTALLATION TOOLS NEEDED LOCATION DECISION INSTALLATION INSTRUCTION INSTALLATION STEPS PRODUCT NAMING PRINCIPLE PRODUCT APPEARANCE INTRODUCTION DATA SHEET LED LIGHT INDICATION APP DOWNLOAD HOW TO CHARGE TROUBLESHOOTING FCC SUPPLIER’S DECLARATION OF CONFORMITY MAINTENANCE AND REPAIR STORAGE AND TRANSPORTATION CONDITIONS CYBER SECURITY WARRANTY CONTACT US... -
Page 6: Inspection Before Installation
INSPECTION BEFORE INSTALLATION WARNING: The Izar AC charging station must be installed by a licensed electrician in accordance with instructions in this manual. Failure to do so may lead to death, injury or property damage which shall be borne by the user. NOTE: Please check whether you have the following parts. -
Page 7: Tools Needed
TOOLS NEEDED Before installation, you need to get the following ready: One NEMA 6-50P outlet, NEMA 14-50P outlet or a waterproof box and a non-GFCI breaker Drill PVC insulation tape Tape measure Hex key Wrench Screw driver Insulation gloves Wire stripper Crimpling tool... -
Page 8: Location Decision
LOCATION DECISION Decide the charge station’s location before installation. As Izar’s protection reaches to TYPE 4 (IP65) /IK10, it can be installed both indoors and outdoors except for hazardous area such as sites that are vulnerable to fire or explosion. Wall-mounted installation 1. -
Page 9: Installation Instruction
INSTALLATION INSTRUCTION WARNING: The Izar AC charging station must be installed by a licensed electrician in accordance with instructions in this manual. Failure to do so may lead to death, injury or property damage which shall be borne by the user. NOTE: Read this part carefully before working and install as instructed. - Page 10 B. Hard-wire (SEA 240/48I-U-H/HW/HY) installation WARNING: The Izar AC charging station must be installed by a licensed electrician in accordance with instructions in this manual. Failure to do so may lead to death, injury or property damage which shall be borne by the user. NOTE: Read this part carefully before working and install as instructed.
-
Page 11: Installation Steps
INSTALLATION STEPS DANGER: Be aware of electric shock. Cut off the power of the electrical panel or open the breaker for hard-wired installation. Never resume the power before the installation is finished. Failure to do so can lead to electric shock and death. NOTE: Please read Installation Instruction above before work and follow the steps below. - Page 12 4. Put the 4 drywall anchors (φ15/64*1-11/64 inches (φ6*30mm)) inside holes. 5. Match the holes on the sheet metal with the holes on the wall. Fix the metal with Philips-head screws (self-drilling stainless screws ST11/64*1-11/64 inches (ST4.2*30mm)) and a screw driver. 6.
- Page 13 8. Plug the charger’s plug in the outlet. 9. Installation finished. Resume the power and check whether the LED light is turned on. If not, cut off the power and check the circuit and connections.
- Page 14 B. Hard-wired installation (SEA 240/48I-U-H/HW/HY) WARNING: Be aware of electric shock. Cut off the power of the electrical panel or open the breakerfor hard-wired installation. Never resume the power before the installation is finished. Failure to do so can lead to electric shock and death. NOTE: Please read Installation Instruction above before work and follow the steps below.
-
Page 15: Product Naming Principle
PRODUCT NAMING PRINCIPLE... -
Page 16: Product Appearance Introduction
PRODUCT APPEARANCE INTRODUCTION 1. NEMA 6-50P plug 2. LED light 3. Reset button 4. NEMA 14-50P plug 5. 31-1/2 inches (0.8m) input cable 6. Charging connector Name Functions NEMA 6-50P plug To get power from the grid with NEMA 6-50R outlet LED light To display charging and standby status Reset button... -
Page 17: Data Sheet
DATA SHEET American-standard AC Charger (residential) Izar Model 240/40I-U-6/6W/6Y 240/40I-U-14/14W/14Y 240/48I-U-H/HW/HY Product name Izar 6-50P Plug Izar 14-50P Plug Izar Hard wired 31-1/2 inches (0.8m) Basic specifications Input/output current Input/output voltage Single phase 240V (±15%) Dimension L13-15/64*W11-25/32*D4-23/32 inches (L336*W299*H120mm) 13.2 Ibs (6 kg) 15.4 Ibs (7 kg) -
Page 18: Led Light Indication
LED LIGHT INDICATION State LED Light Indication Standby Green light on Connected Blue light on Charging Blue light flickering Under/over voltage Red light on, blue flashes for 2s RCD failure Red light flashes for 2s Over current Red light flashes for 5s Relay adhesion Red light on, green flashes for 5s Meter fault... -
Page 19: App Download
APP DOWNLOAD Download APP For Apple users, please search for Sinexcel AC in the Apple App Store to download and install it. For Android users, please search for Sinexcel AC in the Google App Store to download and install it. -
Page 20: How To Charge
HOW TO CHARGE NOTE: The reset button is only used for a soft reboot of the charger system and is not an emergency stop button or power restart button. In case of an emergency, please immediately disconnect the circuit breaker or unplug the power plug to cut off the power supply. There are three charging methods for Izar: Charge with APP, Charge with RFID card, Plug and charge. - Page 21 Plug and charge For the first-time use of the plug and charge mode, the charging mode should be set to "plug and charge" in the app. Subsequent usage does not require setting the charging mode again. (Charging will begin when the connector is plugged into the socket, and it will stop when the connector is unplugged.) D.
-
Page 22: Troubleshooting
TROUBLESHOOTING Error code Error type Description Solution Check if the input voltage is The input voltage is greater than Error 2 Overvoltage fault greater than the default 276V. overvoltage value. Check if the input voltage is Error 3 Undervoltage fault The input voltage is less than 204V. -
Page 23: Fcc Supplier's Declaration Of Conformity
FCC SUPPLIER’S DECLARATION OF CONFORMITY... -
Page 24: Maintenance And Repair
MAINTENANCE AND REPAIR Every time before use the Izar AC charger, please visually inspect whether the shell, charging cable and connector is broken or damaged. If yes, contact the local customer support. Every time before charging, please visually check whether the vehicle inlet is broken or damaged. -
Page 25: Cyber Security
SINEXCEL ELECTRIC CO., LTD. shall not be liable for any damage and/or loss caused by the above security vulnerabilities, any unauthorized access, interference, intrusion, data or information disclosure and/or theft. -
Page 26: Warranty
SN number of the purchased product to our service personnel during maintenance. At the same time, the nameplate on the product should be clearly visible, otherwise Sinexcel has the right not to repair. B. Warranty Condition The user has fully complied with the storage, installation and use rules stipulated in this manual and the product has quality problems. -
Page 28: Contact Us
Our company provides customers with a full range of technical support, if you have any questions about the product or technical problems, please feel free to contact us. Huizhou Sinexcel Electric Co., Ltd. Address: No.31, Huifeng West 2nd Road, Zhongkai Hitech District, Huizhou, China.
