INSTALLATION STEPS

DANGER: Be aware of electric shock. Cut off the power of the electrical panel or open the breaker
for hard-wired installation. Never resume the power before the installation is finished. Failure to do
so can lead to electric shock and death.
NOTE: Please read Installation Instruction above before work and follow the steps below. Any
consequence led by failure to do so should be borne by the user.
A. Plug-in installation (SEA 240/40I-U-6/14/6W/14W/6Y/14Y)

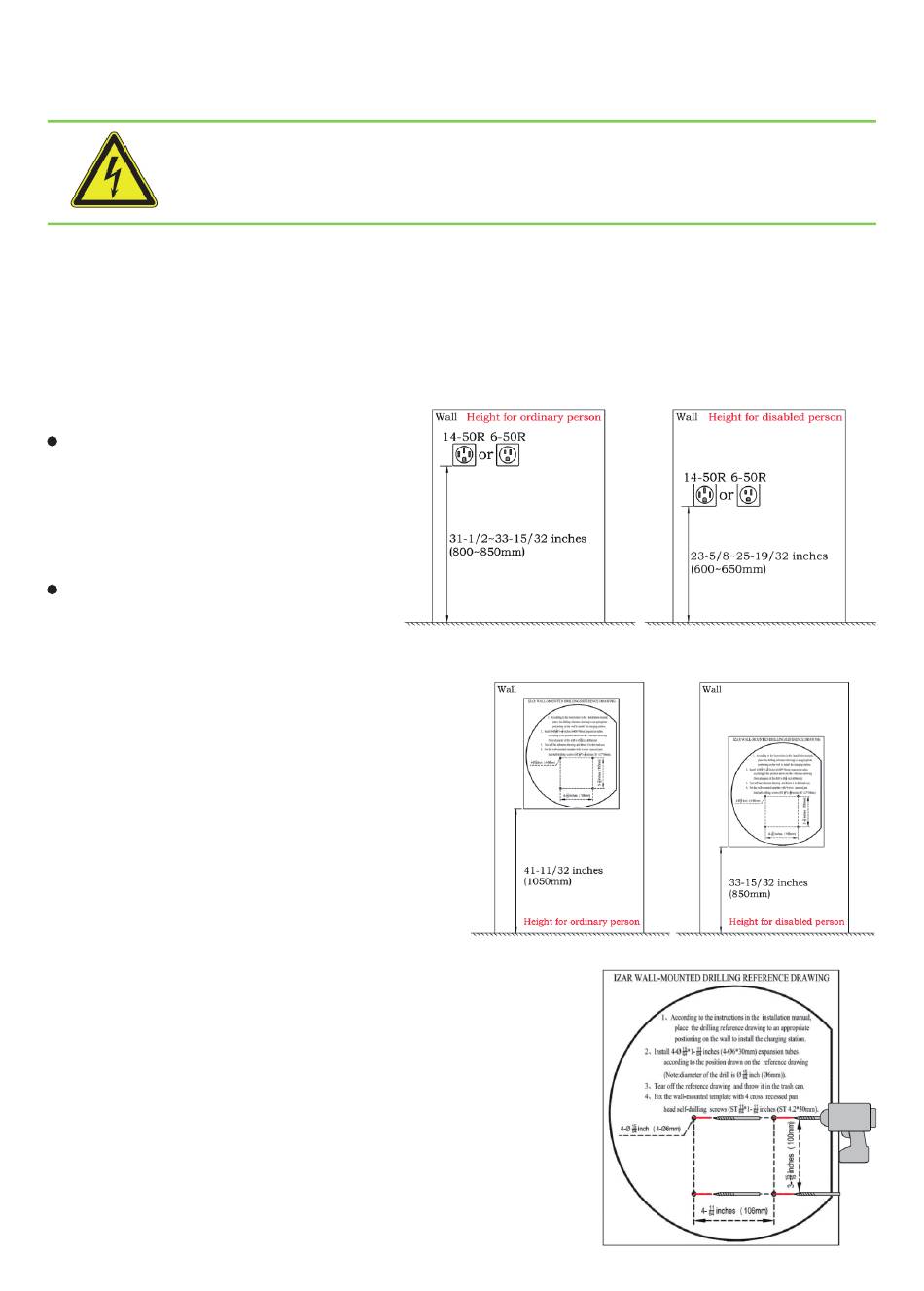

1. Install the outlet
Please put the grounding hole at
the down side when installing the
outlet so that the plug of Izar can
plug in easily. Cut off the power
during installation.
If the charger is going to be
installed outdoors, a waterproof
box is needed to cover the outlet and to prevent water getting inside the outlet.
2. Stick the reference drawing on the wall,
ensuring the bottom of the label be 41-11/32
inches (1050mm) from the ground in
normal, and 33-15/32 inches (850mm) for
the disabled.
3. Drill holes (φ15/64 inch (φ6mm)) on the wall as the
reference drawing indicated. The holes' depth is 1-11/64
inches (30mm). After drilling, the reference drawing can
either be taken off or stay on the wall.
