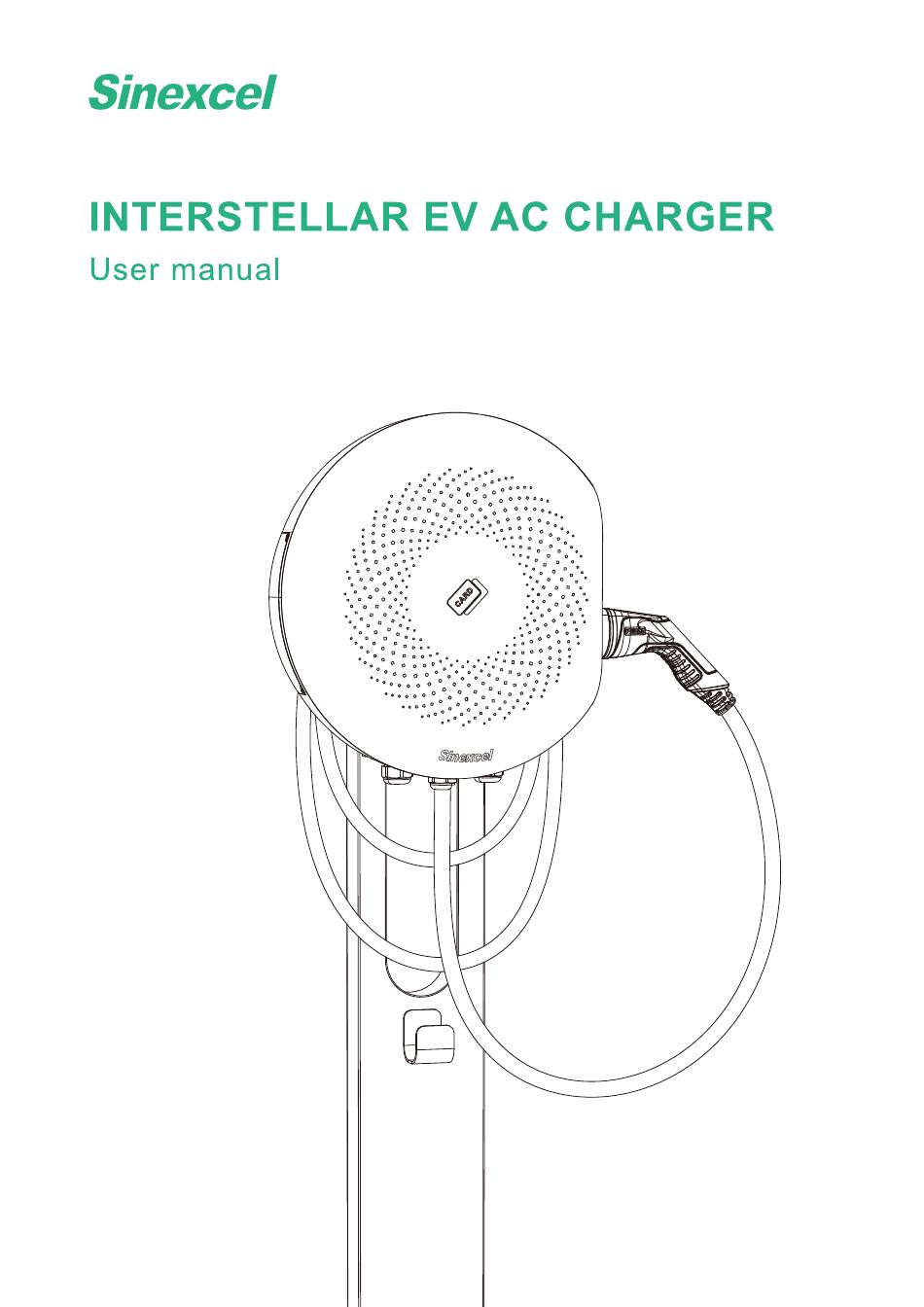

Sinexcel SEA400/32-Y-E-P User Manual

Hide thumbs Also See for SEA400/32-Y-E-P:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEA400/32-Y-E-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sinexcel SEA400/32-Y-E-P

Summary of Contents for Sinexcel SEA400/32-Y-E-P

  • Page 2: Table Of Contents

    Contents About the document Symbol conventions 1. Safety 2. Description 3. Operation 4. Maintenance and cleaning 5. Troubleshooting 6. Cyber security 7. Warranty 8. Contact us Version1.1...

  • Page 3: About The Document

    3)The contents, pictures, logos, symbols, etc. used in this manual are all owned by Sinexcel. Without written authorization, it is forbidden to disclose, excerpt and copy part or all of the contents of this manual (including materials and publications).

  • Page 4: Symbol Conventions

    Symbol conventions Symbol Description Warning If you do not obey the instruction it might cause injury or death. Danger Risk of electrocution Caution of fire Note A note gives more details to make easily use.

  • Page 5: Safety

    1. Safety 1.1 General safety instructions ●This product is an integrated charger that can charge electric vehicles in indoor and outdoor areas. ●Please use and save the product information and accessories that are shipped with the device properly. ●If the user has any problems or failures during use, please consult the manufacture directly. During the warranty period, if you privately find a third party or non-professional person for maintenance, any security consequences will be borne by the user.

  • Page 6: Description

    2. Description 2.1 General description Interstellar is an AC charger supplies electricity to the EV. The product adopts DLM system and IMD technology which makes strong charging performance and great product quality. It has multiple safety protection functions and protection rating of IP65, suitable for indoor or outdoor use. 2.2 Overview 2.2.1 Overview of EVSE, outside emergency button...
  • Page 7 2.2.2 Overview of EVSE, inside Light board Smart meter(optional) Mainboard Circuit breaker Maintenance cover Terminal block RFID reader Part Function Maintenance cover For maintenance and operation of on&off For short circuit protection,overload protection and leakage Circuit breaker protection Smart meter For metering Mainboard To control the EVSE...
  • Page 8 2.2.3 Pedestal 2.3 Working principle...
  • Page 9 2.4 Specification Interstellar (Residential Use) Rated Power 22kW Input/Output Three-Phase 400V Single-Phase 230V Voltage Dimensions W406*H450*D162 W406*H450*D162 Weight 7.5KG Input/Output Current Frequency 50Hz Connector IEC Type 2 Cable Length 3m(5m optional) Charging Status Information Authorization Plug and Charge Metering MID Meter(optional) Installation Floor-mounted/Wall-mounted Over current protection,over/under voltage...
  • Page 10 Interstellar (Commercial Use) Rated Power 22kW Input/Output Single -Phase 230V Three-Phase 400V Voltage Dimensions W406*H450*D162 W406*H450*D162 Weight 7.5KG Input/Output Current Frequency 50Hz Connector IEC Type 2 Cable Length 3m(5m optional) Charging Status LED/Display(optional) Information Authorization NFC/RFID/Plug and Charge/APP(optional) Metering MID Meter(optional) Communication LAN/4G/Wifi(optional) Method...
  • Page 11 2.5 Parts included in the delivery Wall-mounted Parameter Specification Quantity EVSE Materials：PBT+PC Wall-mounted template L160*W299*D15mm RFID card Sabotage-proof hexalobular Stainless steel M4X10 socket screw Cable ties Product manual & installation manual Product certification Wrench Stainless steel T20 Expansion tube ￠6*30mm（PE) Cross recessed pan head self- Type C stainless steel drilling screw...
  • Page 12 2.6 Product model number S E A 400/32-Y-E-P S E A 230/32-Y-E-P...
  • Page 13 2.7 Standards Interstellar is designed according to the European standard and meets the industrial standards in terms of function and performance. The specific technical standards are shown in the table below. Standard Title number Electric vehicle conductive charging system. General IEC61851-1:2019 requirements Plugs, socket - outlets, vehicle connectors and vehicle inlets -...
  • Page 14 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz - EN 62311:2008 300 GHz) Assessment of the compliance of low power electronic and electrical equipment with the basic restrictions related to EN 62479:2010 human exposure to electromagnetic fields (10 MHz to 300 GHz) EN 61851-1:2011 Electric vehicle conductive charging system - Part 1: General...

  • Page 15: Operation

    3. Operation 3.1 Prepare before operation 1）Ensure that there is no open flame around the EVSE and the surrounding space is not blocked 2）Ensure there is no damage on the cable. 3）Ensure that the EVSE is maintained regularly. Refer to section 4. 4）No need to set network or change any system settings following section 3.2/3.3.
  • Page 16 3.2.2 Standby screen 1）The display shows the standby screen as shown in the figure when the EVSE is in the idle status. 2）The lights on the enclosure turn from dark to green, as shown in the figure below. 3.2.3 Prepare to charge screen Authorize the use of EVSE by RFID card，password and operator APP.
  • Page 17 3.2.4 Start to charge screen 1）The interface jumps to charging information screen when the EVSE start to charge, as shown in the figure below. 2）During the charging session, the lights on the enclosure turn from green to blue, as shown in the figure below.
  • Page 18 3.3 Charging procedure (EVSE without display) 3.3.1 Connect to the connector 1）Take out the connector from the enclosure or the hanger installed on the pedestal (refer to section 3.5) and connect it to the EV. 2）After the connector is plugged in correctly, the EVSE will be ready to charge. 3.3.2 Start to charge There are two ways to charge which depend on customer requirement.
  • Page 19 3.4 Description of the display screens (optional) 3.4.1 How to enter the administrator interface Tap this area twice. The numeric keypad will show up. Then enter the password 123456 to get into the adminis- trator interface.
  • Page 20 3.4.2 How to set time Choose manufacture setting. Tap the Set Time button and the numeric keypad will show up. Enter the correct time in the sequence of year, month, day, hour, minute and second (yyyy-MM-dd-HH-mm-ss). Please note that dots should be entered between each data. For example, for 2021/12/1 17:30:19, enter 21.12.1.17.30.19...
  • Page 21 3.4.3 How to set time zone Choose manufacture setting. Enter the parameter to set the time zone. The first and second digits means hours The third and fourth digits means minutes The last digit means either increment(1) or subtraction(0) For example: 12001: Subtract 12 hours and 0 minutes for UTC -12:00 8300: Increase 8 hours 30 minutes for UTC +8:30...
  • Page 22 3.4.4 How to connect to a Wifi network Choose the manufacture setting to enter the setting interface and tap WiFi button. Enter “1” to turn on WiFi.
  • Page 23 Get back to the Administrator interface and tap the Net Setting button. Enter the name and the password of Wifi to connect the Wifi network.
  • Page 24 3.4.5 How to connect to 4G or Ethernet Choose Net Setting to enter the Network interface and tap the network type button. Set the parameter to choose the network type. “0” means connect to 4G; “1” means connect to Ethernet. Enter the number to choose the network type that you want to connect to.
  • Page 25 3.4.6 How to connect a Bluetooth Choose manufacture setting to enter the Setting interface and tap Wifi button. Enter “0” to turn on Bluetooth. There is no interface for connecting to Bluetooth on the screen of EVSE so you should find the EVSE on your own device.
  • Page 26 3.4.7 Description of icons of idle screen 1）These icons mean the EVSE has connected to 4G/Ethernet/Bluetooth/Wifi. 2）These icons mean the EVSE has connected to 4G/Ethernet/Bluetooth/Wifi and the platform. 3）These icons mean the EVSE fails to connect to 4G/Ethernet/Bluetooth/Wifi...
  • Page 27 3.5 Cable Management System The cable management system is designed to keep the cable clean and suspended off the floor. The user can wrap the EV charge cable around the hanger which is installed on the pedestal for easy storage.

  • Page 28: Maintenance And Cleaning

    4. Maintenance and cleaning 4.1 Maintenance and cleaning 1）Please do a visual check for damage on the cabinet cover，outlets，cables and connectors at each use. 2）Please do a visual check for the damage on the display at each use. 3）Please use low pressure water to clean the enclosure of the EVSE every 4 months. In case of stubborn dirt, please apply a cleaning agent and clean it manually.
  • Page 29 3) Unscrew screws C, D, E, F on circuit board and G on copper busbar. Disconnect neutral wire (H), L1 (I), L2 (J), L3 (K), earth wire (L) 4) Unscrew screws N and O which are used to fix hose clamp M 5) Untighten the water-proof clamp P and pull out the cable...
  • Page 30 4.3 Assemble the connector cable Reverse to the process documented in 4.2.

  • Page 31: Troubleshooting

    5. Troubleshooting 5.1 Error code Error Problem Possible cause Possible solution code In an emergency If the problem has been situation, the solved, spin the emergency Emergency Error 1 emergency button is button gently in arrow indicat- shutdown pressed ing direction to reset. The voltage is over Check whether there is over Error 2...
  • Page 32 Check the connection at the Meter Error of the meter ID Error 7 communication communication circuit of the or damage on meter failure meter RFID card Damage on the RFID Check the connection at the reader Error 8 card reader card reader circuit communication failure...
  • Page 33 5.2 LED description Status Light description Standby Green -constant light Connection Blue-constant light Charging Blue-breathing light Emergency Red-constant light shutdown Red-2s flashing light; Blue -constant light Over/under voltage RCD fault Red-2s flashing light Over current Red-500ms flashing light Relay adhesion Red-constant light;...

  • Page 34: Cyber Security

    6.2 Operator platform After the EVSE starting, it is connected to the Sinexcel charging facility platform, which can realize functions such as remote management, diagnosis, configuration, maintenance, and upgrade. Sinexcel requires the use of secure communication protocols (HTTPS/TLS1.2 and above secure cryp- tographic algorithms) for product communication.

  • Page 35: Warranty

    ●Prepare the installation environment according to the requirements described in this manual ●Ensure that the EVSE has enough space for passage and maintenance ●It is necessary to be fully aware that changes and changes without the permission of Sinexcel may affect the user's operating authorization and may also affect the warranty...
  • Page 36 7.4 Disclaimer The EVSE needs to be used normally within a certain range of conditions. Sinexcel will not be responsible for accidents or damage caused by one of the following situations: ●Products and accessories not marked by our company; ●The product or component has exceeded the warranty period of our company;...
  • Page 37 8. Contact our partner in Vietnam ALENA ENERGY TECHNOLOGY CO., LTD Address: 2G Nguyen Thanh Y street, Da Kao ward, District 1, Ho Chi Minh city, Vietnam TEL: +84 (28) 39 26 26 83 Email: sales@alena-energy.com https://alena-energy.com...

This manual is also suitable for:

Sea230/32-y-e-p
