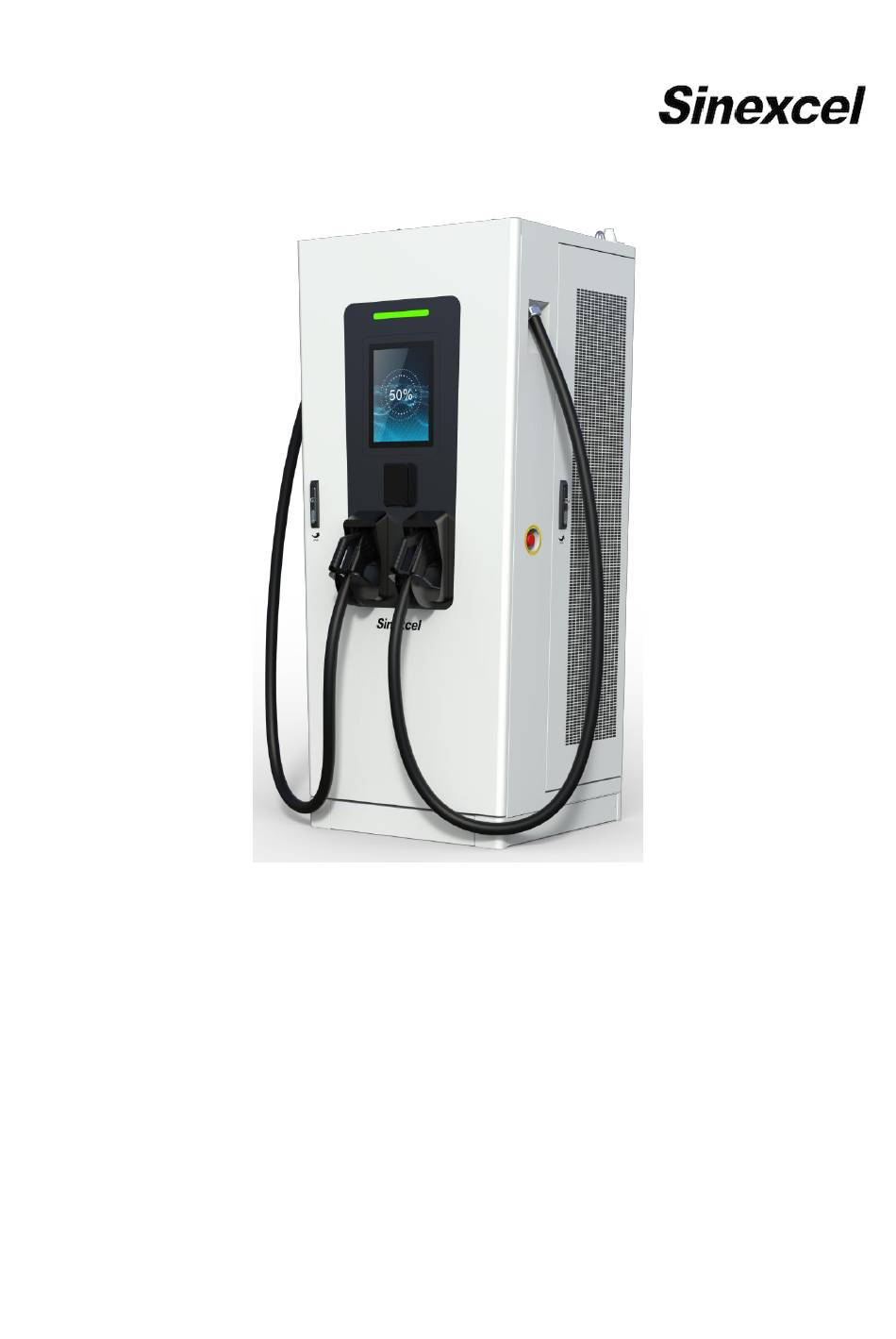

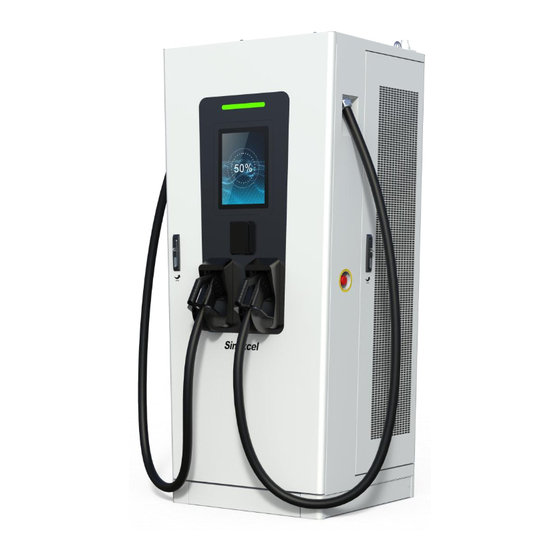

- Page 1 SEC 240kW Series DC Fast Charger User Manual Issue 2023-07-03 Date Copyright 2023 Sinexcel. All rights reserved ©...
- Page 2 SEC 240kW Series DC Fast Charger--- User Manual Disclaimer Sinexcel shall not be liable for any consequence caused by any of the following events: Warranty expiration of the warranty service. Failure to follow the operation instructions and safety precautions in this ...
- Page 3 SEC 240kW Series DC Fast Charger--- User Manual Foreword Reader Object This document (this guide) is primarily intended for the following engineers： Technical Support Engineer Maintenance Engineer Engineering installation team Symbol Conventions The following symbols may appear in this document and their description are as follows...
-
Page 4: Table Of Contents
SEC 240kW Series DC Fast Charger--- User Manual Table of Contents Safety Precautions ..........................1 Special symbols for warnings and dangers ................. 1 Safety instructions for use .......................2 Safety instructions for operation ....................2 Product Overview ............................ 4 SEC series products model ........................4 Product types description ........................ -
Page 6: Safety Precautions
SEC 240kW Series DC Fast Charger--- User Manual Safety Precautions Special symbols for warnings and dangers Symbol Symbol word Description Since some parts of this power system are under Danger high voltage during operation, it is fatal for direct contact or indirect contact with these parts. -
Page 7: Safety Instructions For Use
Without Sinexcel permission, do not unauthorized modifications to the product or removal of the product. Sinexcel will not be liable for any consequence caused by the violation of the safety operation regulations and design, production, and usage standards. - Page 8 SEC 240kW Series DC Fast Charger--- User Manual Do not connect or disconnect power cables with power on. When maintenance, turn off the power switch, ensure that electrical connections are correct, and putting warning board. Pay attention to the copper wire carries dangerous voltage of equipment, ...
-
Page 9: Product Overview
It supports the CCS2 & JPN double connector charging at same time, The Charger used in centralized fast charging station, it adopts 20kW charging power module of Sinexcel, and meet the charging demand of larger capacity and high endurance electric on the market. -
Page 10: Product Views
SEC 240kW Series DC Fast Charger--- User Manual Power distribution Maximum current Specification Connector A Connector B Connector A Connector B CCS1:80kW or CCS1:80kW or SEC1000/160Y-CC-U 200A 200A 160kW 160kW SEC1000/160Y-H-U HCCS1:160kW 300A HCCS1:80kW or SEC1000/160Y-HJ-U JPN:62.5kW 300A 125A 160kW... -
Page 11: Product Characteristics
DC1000V. It can not only meet the low-voltage charging of small cars, but also meet the charging requirements of buses and high-voltage vehicles. User experience is highly considered by Sinexcel. Cable management system is optional in this charging system, which make it easier for the customer to charge and protect the cable. -
Page 12: Parameter Table Of Product Specifications
SEC 240kW Series DC Fast Charger--- User Manual With overload, short circuit, leakage, lightning protection, overcharge, over voltage, under voltage, reverse connection, over temperature and other multiple protection functions. The intelligent standby mode can effectively reduce the operation cost of ... - Page 13 SEC 240kW Series DC Fast Charger--- User Manual Specification Category Item Parameter Display Screen 15 inches Method of QR Code/RFID/NFC/Bank card (Optional) payment Language English Cooling method Forced air cooling Full power Environmental operating -25 ~ 50 ℃ conditions temperature...
-
Page 14: Installation Instructions
SEC 240kW Series DC Fast Charger--- User Manual Installation instructions Equipment dimensions The shape and dimension of the charger are shown in Figure 3.1-A. charger Figure 3.1-A Outline and dimension of The hole size of charger base is shown in Figure 3.1-B. - Page 15 SEC 240kW Series DC Fast Charger--- User Manual The charger is opened in front, left and right, and the connectors are used from both sides. Space should be reserved around. See Figure 3.2-A for the reserved size; Installation on the foundation of channel steel or concrete; The cable shall be embedded in advance, the reserved length of Ethernet cable should not be less than 4000mm;...
-
Page 16: Construction Of Distribution Cables
SEC 240kW Series DC Fast Charger--- User Manual Figure 3.2-B Base and cable reservation requirements Construction of distribution cables 3.3.1 Layout requirements of distribution cables The input cable of the system is introduced from the inlet hole at the bottom of the charger, and the cable shall be laid through the cable trench. -
Page 17: Process Requirements Of Distribution Cables
SEC 240kW Series DC Fast Charger--- User Manual 3.3.2 Process requirements of distribution cables Cable laying shall be free from external force, distortion and damage of insulation layer. It is strictly forbidden to twist, flatten, break the protective layer and wear the protective layer seriously. -
Page 18: Cable Specifications For Ac Input (Recommended)
SEC 240kW Series DC Fast Charger--- User Manual 3.3.3 Cable specifications for AC input (Recommended) Capacity of Capacity Cable specification superior Screw specification Cable terminal (kW) (Copper cable) distribution (diameter: mm) switch L1/L2/L3/ N: L1/L2/L3/ N：M16 160kW 4*185mm²+1*95mm² 400A DT185-16 PE：M12... -
Page 19: Internal Wiring Diagram Of Equipment
SEC 240kW Series DC Fast Charger--- User Manual 3.3.4 Internal wiring diagram of equipment The internal input cables are N, L1, L2, L3, PE, Ctrl and Eth from left to right. The ‘Ctrl’indicates a control signal cable and the ‘Eth’indicates a Ethernet cable .The cabinet grounding is divided into two parts, one is the grounding bar inside the cabinet, and the other is the grounding of cabinet shell, as shown in Figure 3.4-A . -
Page 20: Inspection After Installation
SEC 240kW Series DC Fast Charger--- User Manual Inspection after installation Stability After the pile is installed, shake the cabinet from different directions, and there should be no obvious loosening and shaking. Clean up Dispose of all transportation and packaging materials in accordance with ... - Page 21 SEC 240kW Series DC Fast Charger--- User Manual Figure 3.5...
-
Page 22: Operation Interface
SEC 240kW Series DC Fast Charger--- User Manual Operation interface Charging process Note: when the charger is in standby mode, the screen is in the energy-saving mode. Before operation, touch the screen with your finger to light up the screen! The screen has been split, which can be used for advertising below the operation interface. -
Page 23: Waiting For Connector Insertion Interface
SEC 240kW Series DC Fast Charger--- User Manual 2. Click “language”in any interface to switch the language mode of the UI. At present, Chinese, English and Korean are supported. 4.1.2 Waiting for connector insertion interface Tip: connecting the connector to the car will jump to the connector insertion... -
Page 24: Connecting Interface
SEC 240kW Series DC Fast Charger--- User Manual 4.1.3 Connecting interface Prompt: click next to enter the interface of charging mode selection. -
Page 25: Select Charging Mode Interface
SEC 240kW Series DC Fast Charger--- User Manual 4.1.4 Select charging mode interface Notice: click the payment method you want to enter the next charging operation. - Page 26 SEC 240kW Series DC Fast Charger--- User Manual Code scanning charging interface process Scan the QR to enter the start charging interface . Charging interface Click "End" to end charging and enter the settlement interface . Tip: after charging, click back. If the other charging connector is in charging state, it will jump to the charging interface of the other charging connector, otherwise it will jump to the main interface.
- Page 27 SEC 240kW Series DC Fast Charger--- User Manual Interface process of pay by card charging Select or enter the precharge amount to enter the card swiping interface. Pay by card according to the interface prompt to enter the charging start interface.
- Page 28 SEC 240kW Series DC Fast Charger--- User Manual Click "End" to end charging and enter the pay by card interface. Enter the settlement interface after paying by card according to the interface prompt.
- Page 29 SEC 240kW Series DC Fast Charger--- User Manual Password charging interface process Enter the password to enter the start charging interface. Charging interface. Click "End" to charging and enter the pay interface. Tip: click the input box to pop up a small keyboard. Enter the complete password through the keyboard and click OK to verify the password.
-
Page 30: Simple Troubleshooting
SEC 240kW Series DC Fast Charger--- User Manual Simple troubleshooting Analysis and treatment of common faults Refer to the maintenance manual for detailed treatment Error Name of alarm or Processing method code fault Check the status of lightning arrested. If the visual ... -
Page 31: After-Sales Service
SEC 240kW Series DC Fast Charger--- User Manual After-sales service If you have any questions or questions, please contact the equipment supplier. Before contacting the equipment supplier: Please check the troubleshooting measures in the chapter "5. Simple troubleshooting". Please record the model and serial number of the equipment (name plate of ...
