MFC Function on the LCD Screen

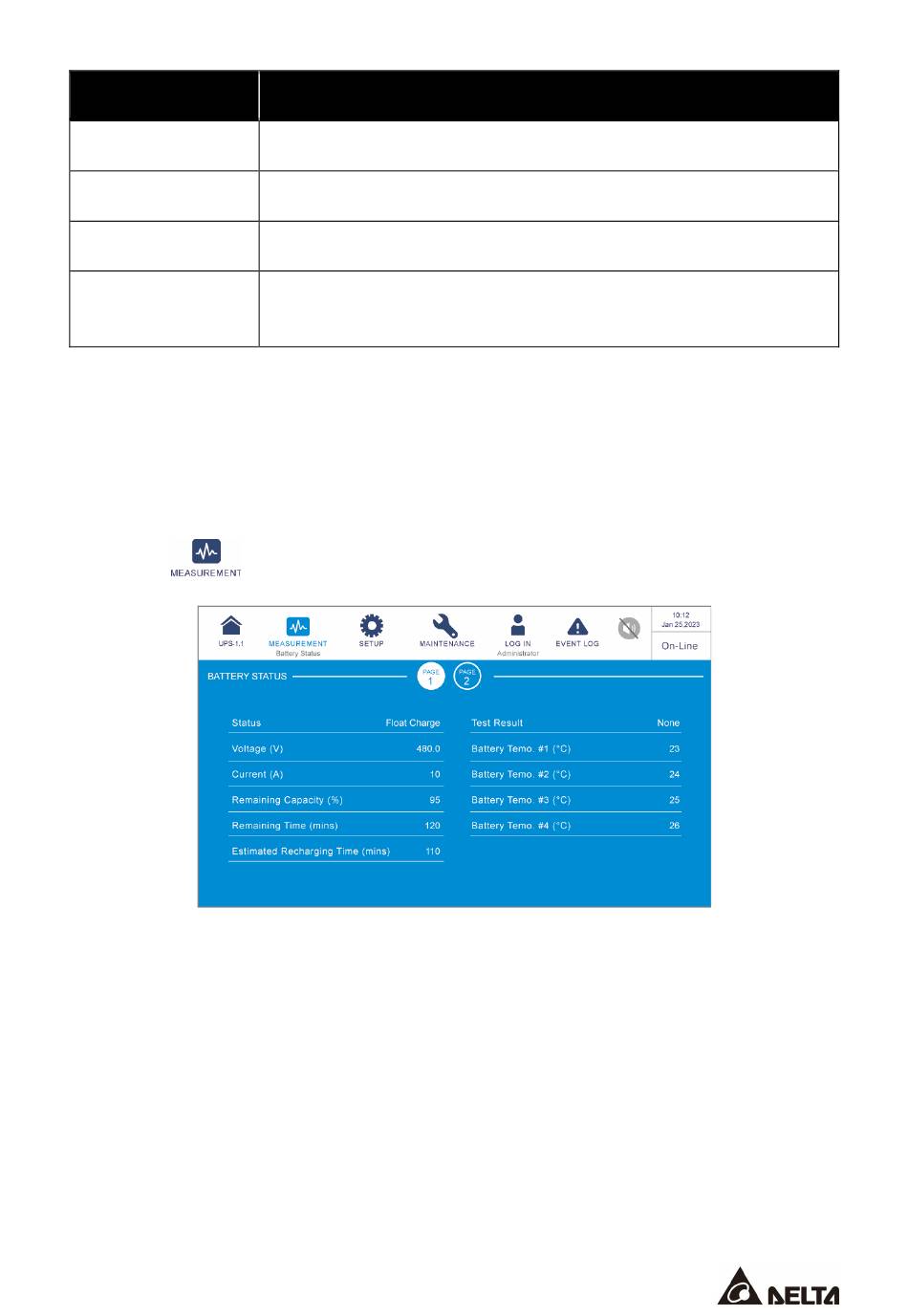

The PAGE 3 & MFC screens (see the figures below) will appear on the LCD only if you
use the Delta lithium-ion batteries with the optional multifunctional communication
(MFC) card being installed in the SMART slot (see
customer service if you need more information.
Path:
•
In the screen shown above, you can use the three drop-down lists in the upper left
corner to choose the Cabinet, String, and Battery Module to view the corresponding
String Voltage, String Current, battery module's SOH (State of Health) and the battery
cell's Voltage and Temperature.
Select Main/ Ext #n module.
Set the module address.
Set the module type as Voltage Type/ Internal Resistance.
'Enable/ Disable' the display of the Main and Ext #n modules'
information on the BMS screen.
→ Battery Status
Description
Figure 4-1
165
). Please contact Delta
