SMC Networks JMDB 32 Series Operation Manual page 14

Table 4.

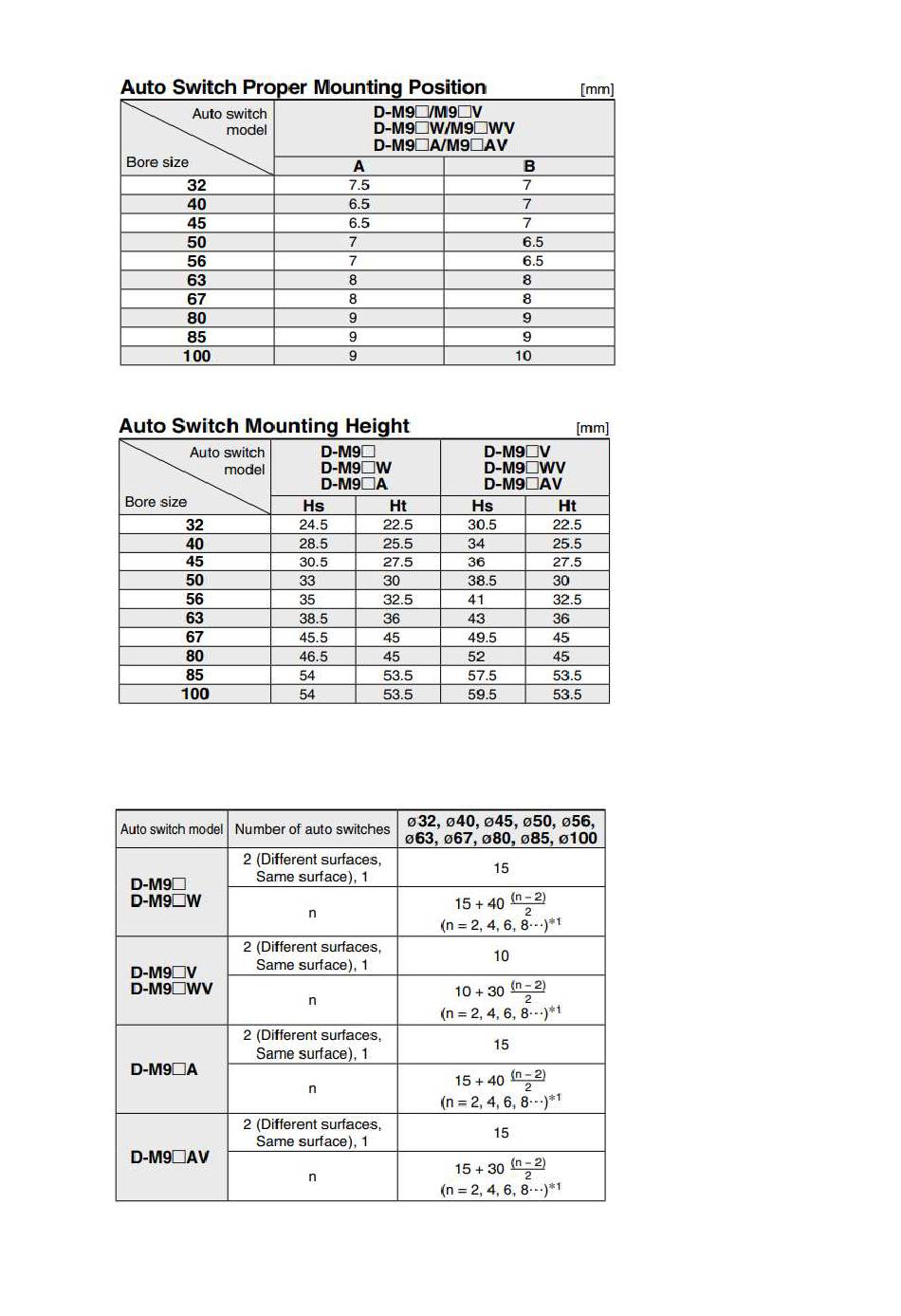

Auto Switch Proper Mounting Position (Detection at stroke end) and Mounting Height
* Adjust the auto switch after confirming the operating conditions in the actual setting.
Table 5. Min. Stroke for Auto Switch Mounting
*1 When "n" is an odd number, an even number that is one larger than
the odd number is to be used for the calculation.
n: Number of auto switches [mm]
-13-
