Queclink GV600 Series Quick Start

GV600 Series Quick Start
Page 1 : Basic Operation
Check Parts List
The USB Data_Cable_M is just for sample
test only. In mass production, there is only
an 18-pin cable for the device.
Connect the GV600
external power supply for battery
charging.
Find"PL2303_Prolific_Driverinstaller_Vxxxx"
and choose the suitable driver for your
computer system. If you have already
installed it, please go to Step 6.
It is better to place the GV600 Series
under the open sky, and let the surface
which has tag face the sky.
Here is GPS Antenna.
series to

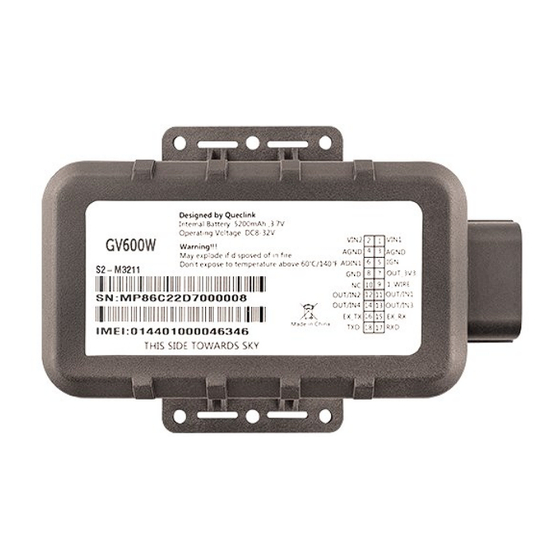

Check The Appearance
Install the SIM card.
Connect GV600 Series to computer by the
USB cable for configuration.
Find "Queclink GV600 Series_Manage_Tool_Vx.x.exe"
in develop suit and run it to configure the running
parameters of GV600 Series. Please refer to Page 2 for
details.
Use the 18-pin wire harness to connect the device to
the car.
