Summary of Contents for Queclink GV65

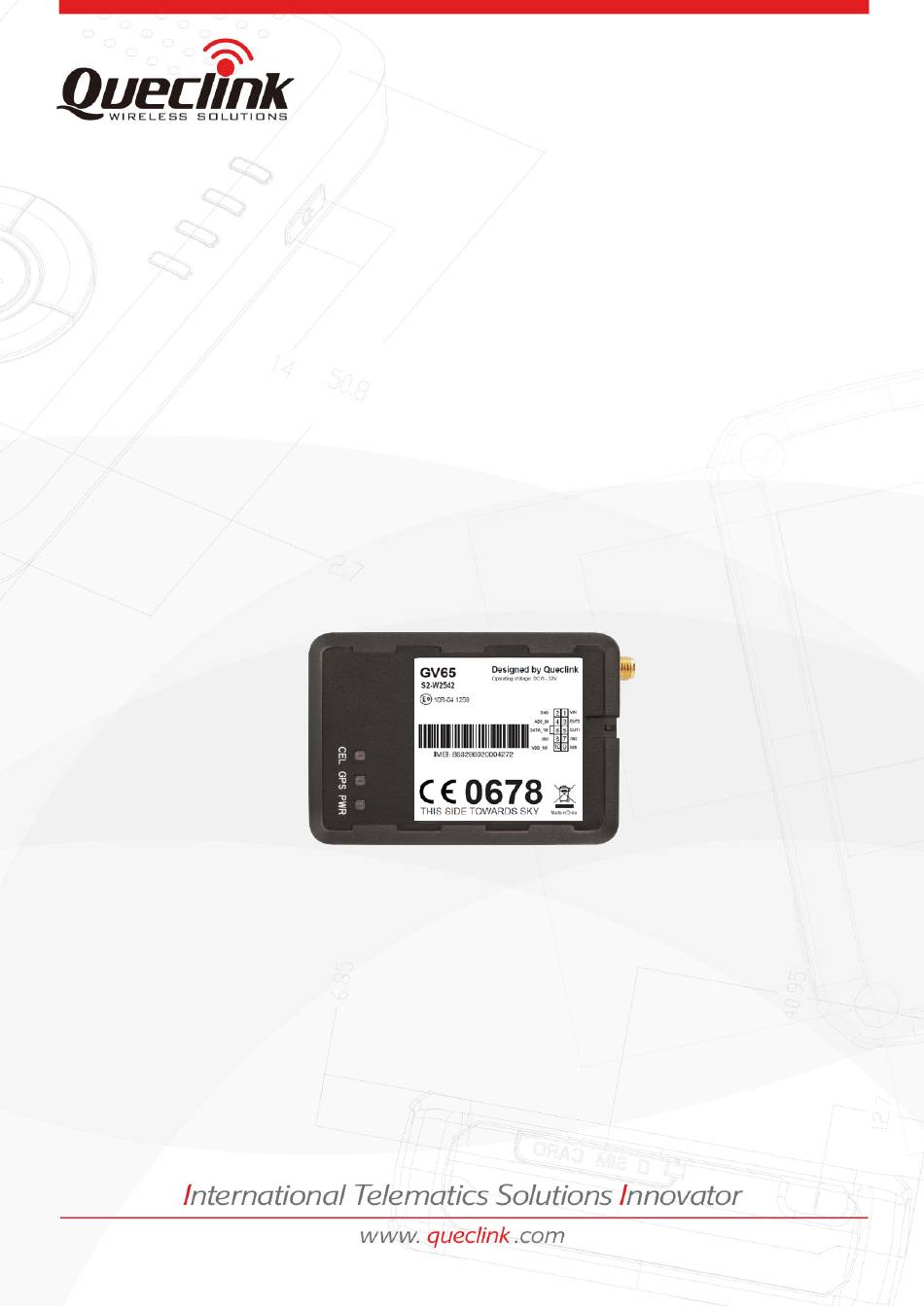

- Page 1 GV65 User Manual GSM/GPRS/GNSS Tracker TRACGV65UM001 Version: 1.00...
- Page 2 TRACGV65UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
2.1. Check Parts List ........................7 2.2. Parts List ..........................7 2.3. Interface Definition ......................8 2.4. GV65 User Cable Colour ...................... 8 3. Getting Started ..........................10 3.1. Open the Case ........................10 3.2. Close the Case ........................10 3.3. - Page 4 Table 3. Parts List ..........................7 Table 4. Description of 10 PIN Connections ..................8 Table 5. GV65 User Cable Colour Definition ..................8 Table 6. GPS Antenna Specifications ....................12 Table 7. Electrical Characteristics of Ignition Detection ..............12 Table 8.
- Page 5 GV65 User Manual Figure Index Figure 1. Appearance of GV65 ......................7 Figure 2. The 10 PIN Connector on the GV65 ................... 8 Figure 3. Open the Case ........................10 Figure 4. Close the Case ........................10 Figure 5. SIM Card Installation ......................11 Figure 6.
-
Page 6: Revision History
GV65 User Manual 0.Revision History Version Date Author Description of Change 1.00 2015-06-09 Caesar Geng Initial TRACGV65UM001 - 5 -... -
Page 7: Introduction
GPS position and many other useful reporting features. Users can also use GV65 to monitor the status of a vehicle and control the vehicle by its external relay output. System integrators can easily set up their tracking systems based on the full-featured @Track protocol. -
Page 8: Product Overview
GV65 User Manual 2.Product Overview 2.1. Check Parts List Before starting, check whether all the following items have been included with your GV65. If anything is missing, please contact your supplier. Figure 1. Appearance of GV65 2.2. Parts List Table 3. Parts List... -
Page 9: Interface Definition
DATA_CABLE_M (Optional) 2.3. Interface Definition The GV65 device has a 10 PIN interface connector. It contains the connections for power, I/O, etc. The sequence and definition of the 10PIN connector are shown in the following figure: Figure 2. The 10 PIN Connector on the GV65 Table 4. - Page 10 GV65 User Manual DATA_1W White/Black Blue OUT1 /IN1 Orange Orange/Black /IN2 VDD_1W Purple White TRACGV65UM001 - 9 -...
-
Page 11: Getting Started
GV65 User Manual 3.Getting Started 3.1. Open the Case Figure 3. Open the Case Insert the triangular-pry-opener into the gap on both sides of the case as shown above, and push the opener up until the case is unsnapped. 3.2. Close the Case Figure 4. -
Page 12: Install A Sim Card
Figure 5. SIM Card Installation 3.4. Install the External GPS Antenna (Optional) There is a SMA GPS antenna connector on GV65. The GV65 device will automatically detect and use an external antenna when connected. Figure 6. The External GPS Antenna of GV65... -
Page 13: Gps Antenna Specification
GV65 User Manual 3.4.1.GPS Antenna Specification Table 6. GPS Antenna Specifications GPS Antenna Specification Frequency 1575.42MHz Bandwidth >5 MHz Beam width >120 deg Supply voltage 2.7V-3.3V Polarization RHCP Gain Passive: 0 dBi min Active: 15 dB Impedance 50Ω VSWR <2 Noise figure <3... -
Page 14: Digital Inputs
IGN signal can be configured to start transmitting information to the backend server when ignition is on and enter power saving mode when ignition is off. 3.7. Digital Inputs There are two general purpose digital inputs on GV65. They are both negative triggers. Table 8. Electrical Characteristics of the Digital Inputs Logical state... -
Page 15: Analog Inputs
Figure 10. Typical Digital Input Connection 3.9. Digital Outputs There are two digital outputs on GV65. Both are of open drain type and the maximum drain current is 150 mA. Each output has the built-in overcurrent PTC resettable fuse. TRACGV65UM001... - Page 16 GV65 User Manual Figure 11. Digital Output Internal Drive Circuit Table 9. Electrical Characteristics of Digital Outputs Logical state Electrical characteristics Enable <1.5V @150mA Disable Open drain Figure 12. Typical Connection with Relay TRACGV65UM001 - 15 -...
-
Page 17: Device Status Led
If this diode is not internal, it should be added externally. A common diode such as a 1N4004 will work in most circumstances. 3.10. Device Status LED Figure 14. GV65 LED on the Case TRACGV65UM001 - 16 -... -
Page 18: 1-Wire Device Connection
4. Slow flashing is about 60ms ON/ 1940ms OFF. 3.11. 1-wire Device Connection There is 1-wire bus on GV65, which supports temperature sensors and iButton. The bus includes 3 signals, namely, VDD-1W, DATA-1W and GND. VDD-1W is the power output for 1-wire device, and DATA-1W is the data signal, with which GV65 can get information from 1-wire device. - Page 19 GV65 User Manual Figure 15. Typical Connection with 1-wire Device Figure 16. Typical Connection with iButton Reader TRACGV65UM001 - 18 -...
-
Page 20: Motion Sensor Direction
Figure 17. Typical Connection with Temperature Sensor 3.12. Motion Sensor Direction GV65 has an internal 3-axis accelerometer supporting driving behavior monitoring, power conservation and motion detection. The following shows the direction of the motion sensor. Figure 18. Motion Sensor Direction...
