    GV55 User manual GV65 Plus GSM/GPRS/GPS Tracker TRACGV65PUM001 Revision:1.01 User Manual TRACGV3SUM001 - 0 -...
  • Page 2: Tracgv65Pum001

    TRACGV65PUM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
  • Page 3: Table Of Contents

    2.1. Check Parts List ........................7 2.2. Parts List ..........................8 2.3. Interface Definition ......................8 2.4. GV65 Plus User Cable Colour ....................9 3 Get Started ........................... 10 3.1. Open the Case ........................10 3.2. Close the Case ........................10 3.3.
  • Page 4 TABLE 3. PARTS LIST........................8 TABLE 4. DESCRIPTION OF 10 PIN CONNECTIONS................9 TABLE 5. GV65 PLUS USER CABLE COLOUR DEFINITION ..............9 TABLE 6. GPS ANTENNA SPECIFICATION ..................13 TABLE 7. ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ..........13 TABLE 8.
  • Page 5 GV65 Plus User Manual Figure Index FIGURE 1. APPEARANCE OF GV65 PLUS ................... 7 FIGURE 2. THE 10 PIN CONNECTOR ON THE GV65 PLUS ..............8 FIGURE 3. OPEN THE CASE ......................10 FIGURE 4. CLOSE THE CASE ......................10 FIGURE 5.
  • Page 6: Revision History

    GV65 Plus User Manual 0 Revision History Revision Date Author Description of change 1.00 2014-12-17 Lulu Gao Initial World Chu Richard Deng Pam Pan 1.01 2015-01-23 World.Chu Add acc sensor xyz description TRACGV65PUM001 - 5 -...
  • Page 7: Introduction

    GV65 Plus User Manual 1. Introduction The GV65 Plus is a powerful GPS locator designed for vehicle or asset tracking. It has superior receiving sensitivity, fast TTFF (Time to First Fix) and supports quad-band GSM frequencies 850/900/1800/1900. Its location can be monitored in real time or periodically tracked by a backend server or other specified terminals.
  • Page 8: Product Overview

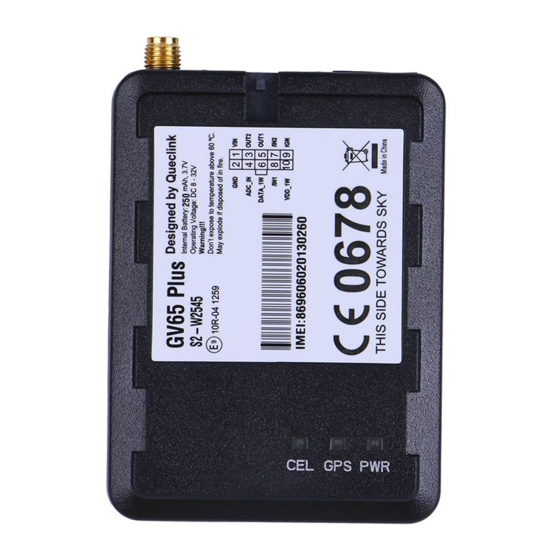

    GV65 Plus User Manual 2 Product Overview 2.1. Check Parts List Before starting, check whether all the following items have been included with your GV65 Plus. If anything is missing, please contact your supplier. Figure 1. Appearance of GV65 Plus...
  • Page 9: Parts List

    GPS Antenna (Optional) DATA_CABLE_M (Optional) 2.3. Interface Definition The GV65 Plus has a 10 PIN interface connector. It contains the connections for power, I/O, etc. The sequence and definition of the 10PIN connector are shown in the following figure: Figure 2.
  • Page 10: Gv65 Plus User Cable Colour

    /IN2 Digital input, negative trigger /IN1 Digital input, negative trigger Ignition input, positive trigger VDD_1W 1-wire device power output 2.4. GV65 Plus User Cable Colour Table 5. GV65 Plus User Cable Colour Definition Definition Definition Colour Cable Colour Black ADC_IN...
  • Page 11: Get Started

    GV65 Plus User Manual 3 Get Started 3.1. Open the Case Figure 3. Open the Case Insert the triangular-pry-opener into the gap on both sides of the case as shown above, and push the opener up until the case is unsnapped.
  • Page 12: Install A Sim Card

    GV65 Plus User Manual 3.3. Install a SIM Card Open the case and ensure the unit is not powered (unplug the 10Pin cable). Slide the holder right to open the SIM card. Insert the SIM card into the holder as shown below with the gold-colored contact area facing down.
  • Page 13: Switch On/Off The Internal Backup Battery

    The control bit of Backup Battery Switch in GTCFG is designed to control whether the backup battery of GV65 Plus is working. As to the detailed explanation of GTCFG command, please refer to related content in ”GV65 Plus @Track Air Interface Protocol”.
  • Page 14: Power Connection

    GV65 Plus User Manual Table 6. GPS Antenna Specification GPS antenna Specification Frequency 1575.42MHz Bandwidth >5 MHz Beam width >120 deg Supply voltage 2.7V-3.3V Polarization RHCP Gain Passive: 0 dBi min Active: 15 dB Impedance 50Ω VSWR <2 Noise figure <3...
  • Page 15: Digital Inputs

    3.9. Digital Inputs There are two general purpose digital inputs on GV65 Plus. They are all negative triggers. Table 8. Electrical Characteristics of the Digital Inputs Logical status...
  • Page 16: Analog Inputs

    Typical Digital Input Connection 3.11. Digital Outputs There are two digital outputs on GV65 Plus. All are of open drain type and the maximum drain current is 150 mA. Each output has the built-in over current PTC resettable fuse. TRACGV65PUM001...
  • Page 17: Table 9. Electrical Characteristics Of Digital Outputs

    GV65 Plus User Manual Figure 12. Digital Output Internal Drive Circuit Table 9. Electrical Characteristics of Digital Outputs Logical status Electrical characteristics Enable <1.5V @150 mA Disable Open drain Figure 13. Typical Connection with Relay TRACGV65PUM001 - 16 -...
  • Page 18: Device Status Led

    GV65 Plus User Manual Figure 14. Typical Connection with LED Note: 1 - OUT1 will latch the output state during reset. 2- Many modern relays come with a flyback diode pre-installed internal to the relay itself. If the relay has this diode, ensure the relay polarity is properly connected. If this diode is not internal, it should be added externally.
  • Page 19: Figure 15. Gv65 Plus Led On The Case

    GV65 Plus User Manual Figure 15. GV65 Plus LED on the Case GV65 Plus has three status LEDs, namely, CEL, GPS and PWR. TRACGV65PUM001 - 18 -...
  • Page 20: 1-Wire Device Connection

    4 - Slow flashing is about 60 ms ON/1940 ms OFF. 3.13. 1-wire Device Connection It has 1-wire bus on GV65 Plus, which supports temperature sensors and iButton. The bus includes 3 signals, namely, VDD-1W, DATA-1W and GND. VDD-1W is the power output for 1-wire device, and DATA-1W is the data signal, with which GV65 Plus can get information from 1-wire device.
  • Page 21: Figure 16. Typical Connection With 1-Wire Device

    GV65 Plus User Manual Figure 16. Typical Connection with 1-wire Device Figure 17. Typical Connection with iButton Reader TRACGV65PUM001 - 20 -...
  • Page 22: Motion Sensor Direction

    GV65 Plus User Manual Figure 18. Typical Connection with Temperature Sensor 3.14. Motion Sensor Direction GV65 Plus has an internal 3-axis accelerometer supporting driving behavior monitoring, power conservation and motion detection.The following is the direction of the motion sensor. TRACGV65PUM001...
  • Page 23: Figure 19. Motion Sensor Direction

    GV65 Plus User Manual Figure 19. Motion sensor direction TRACGV65PUM001 - 22 -...
