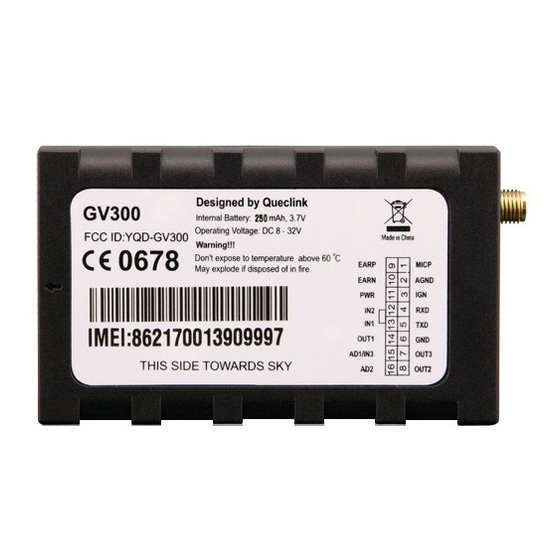

GV300
GSM/GPRS/GPS Tracker
Manage Tool User Guide
TRACGV300MT001
Revision: 1.24
http://www.queclink.com
sales@queclink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Queclink GV300

Summary of Contents for Queclink GV300

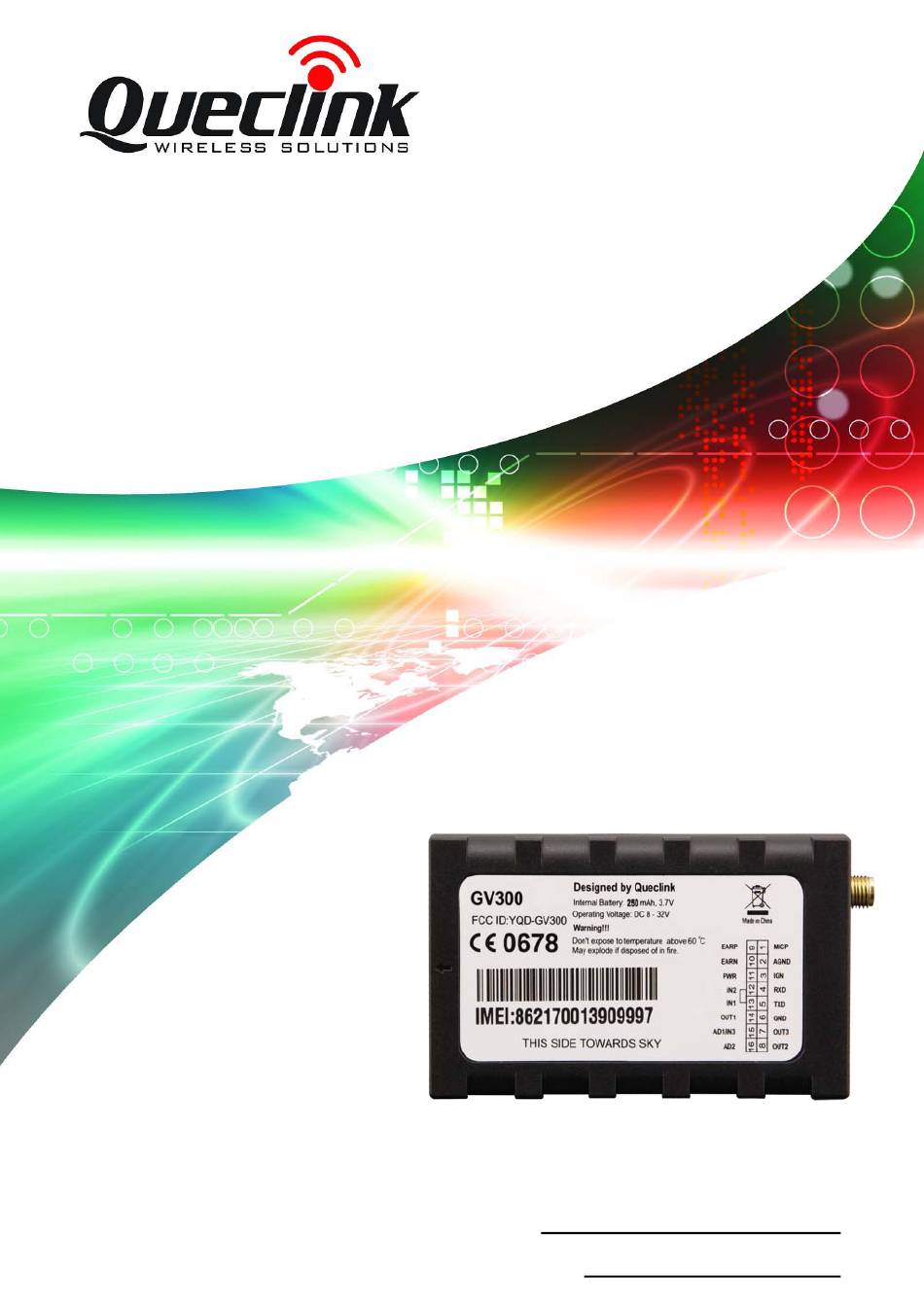

  • Page 1 GV300 GSM/GPRS/GPS Tracker Manage Tool User Guide TRACGV300MT001 Revision: 1.24 http://www.queclink.com sales@queclink.com...
  • Page 2 TRACGV300MT001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.

  • Page 3: Table Of Contents

    GV300 Manage Tool User Guide Contents Contents ............................2 1. Revision History ........................... 3 2. GV300 Manage Tool Interface ..................... 9 2.1. System Requirements ......................9 2.2. COM Setting ........................10 2.3. Quick Setting Wizard ......................10 2.4. Professional Setting Windows ................... 12 2.4.1.

  • Page 4: Revision History

    GV300 Manage Tool User Guide 1. Revision History Revision Date Author Description of change 1.00 2011-08-22 Wogle zhou Initial 1.01 2011-11-16 Moon Xie 1) Add AGPS function to AT+GTCFG 2) Add GSM function to AT+GTCFG 1.02 2012-06-18 Happy Peng 1) Add chapter3.2.10 to introduce how to configure the jamming behavior function.
  • Page 5 GV300 Manage Tool User Guide Interval> to the command AT+GTDOG 2） Update the support version to GV300R00A06V15M128_NMX 1.05 2012-10-25 Leaf Ye 1) Update the support version to GV300R00A06V17M128_NMX 1.06 2012-12-06 Ada Jiang 1) Add chapter3.2.12to introduce how to Leaf Ye...
  • Page 6 GV300 Manage Tool User Guide AT+GTPDS 2) Add Command E in AT+GTRTO 3) Change “Sub AT Command” to “ Sub AT Command | Configuration Mask” in AT+GTRTO 4) Change “ Bit 7- Reserved” of Information Mask to “Expand INF Mask” in AT +GTHRM 5) Add Mode 5 “Fixed Time or Mileage Report”...
  • Page 7 GV300 Manage Tool User Guide 8) Add chapter3.2.39 to introduce how to configure the Main Serial Port Setting function 9) Add chapter3.2.40 to introduce how to configure the Uart Data Transfer function 10) Add Mode 2 in AT+GTJDC 11) Add parameter <Jamming Cell Number Threshold>, <Enter Jamming Timer...
  • Page 8 GV300 Manage Tool User Guide 8） Add chapter3.2.45 to introduce how to configure the Take Picture Command 9） Add PEO，RMD，CMS to Single AT Command and Configuration Mask in AT+GTRTO 10) Change Bit15 to GEO Status Mask in AT+GTUDT 11) Add parameter <ID Validity Time>and change the range of <Timeout after Ignition off>to...
  • Page 9 GV300 Manage Tool User Guide 4） Add mode 14 for AT+GTMUT 5） Add mode3 to <Location By Call> in AT+GTCFG 6） Add < +RESP:GTEXP> to <Event Mask> in AT+GTCFG 7） Add parameter <Report Sensor Data>in AT+GTEFS 8） Add parameter <Server Type> in AT+GTCMS 9）...

  • Page 10: Gv300 Manage Tool Interface

    GV300 Manage Tool 2. GV300 Manage Tool Interface GV300 manage tool is PC software which can be used to configure GV300 through UART. It is easy for the backend server developers to configure GV300 with manage tool, which has friendly user interface.

  • Page 11: Com Setting

    GV300 Manage Tool 2.2. COM Setting Select the COM port, baud rate (115200bps in default), input the password (“gv300” in default), and click “OK” button, then setting window will display. 2.3. Quick Setting Wizard The quick setting wizard gives a basic setting for device. If you want use more functions of GV300, please change to enter professional setting mode.
  • Page 12 GV300 Manage Tool TRACGV300MT001 - 11 -...

  • Page 13: Professional Setting Windows

    GV300 Manage Tool 2.4. Professional Setting Windows Menus Toolbar Command Browser Command Operation Space Title Bar Status Bar 2.4.1. Title Bar Title Bar indicates current operational command title and the name of manage tool. 2.4.2. Menus It include “Start”, “Tool”, “Help” menu in menus.
  • Page 14 GV300 Manage Tool 3.1 for details. [Operation Log]: It is used to display/hidden the operation log. Operation [Options]: It is used to set the basic setting of manage tool. “Basic Options” include startup setting options and log save option. TRACGV300MT001...
  • Page 15 GV300 Manage Tool “Advanced Options” include COM settings and other settings. COM Settings is used to set COM setting. It is recommended using default setting for these settings. TRACGV300MT001 - 14 -...
  • Page 16 GV300 Manage Tool 2.4.2.3 Help Menu [About]: Select “About”. Then the following pop up window will display. “Manage Tool Version” indicates the version of this manage tool. “Support Version” indicates the firmware which this manage tool used for. “Device Version” indicates the firmware which connects to the PC. It is recommended using the same version of support version.

  • Page 17: Toolbar

    GV300 Manage Tool 2.4.3. Toolbar It include “COM Setting”, “Operation Log”, “Quick Setting Wizard”, “Real All Configuration”, “Send All Configuration” , “Save All Configuration”, “Connect/Disconnect to COM”. [COM Setting]: It is used to set the COM information and password. Setting details please refer to chapter 2.2.

  • Page 18: Command Browser And Command Operation Space

    GV300 Manage Tool 2.4.5. Command Browser and Command Operation Space This area is mainly read and set parameters of device. 2.4.5.1 Command Brower Command Brower separates all @track protocol command to several parts. Click Function in command Brower, reference parameters of this command will be shown in command operation space.
  • Page 19 GV300 Manage Tool Other Settings Voice Monitor GTMON Transparent Data Transmission GTDAT Hour Meter Counter GTHMC Real Time Operation GTRTO Serial Port Setting GTURT White List GTWLT AC100/AC200 Devices Setting GTACD Extend digit fuel sensor GTEFS ID Authentication GTIDA Main Serial Port Setting...

  • Page 20: Operation Result Interface

    GV300 Manage Tool [Parameters Area]: Set/Read parameters of this command in this area. [Command Display]: Command with parameters in parameters area display in this area. [Read]: Click this button to read this command from device. [Send]: Click this button to send this command to device.
  • Page 21 GV300 Manage Tool Please change to correct device password if Password Error. There are some issues with this com, please check your com wire or port. TRACGV300MT001 - 20 -...

  • Page 22: Operation Instruction

    3. Operation Instruction 3.1. Device Configuration with Quick Setting Wizard The manage tool is developed based on the @Track Air Interface Protocol. Please refer to “GV300 @Track Air Interface Protocol” for detail. The quick setting wizard gives a basic setting for device. If you want use more functions of GV300, please change to professional setting mode.

  • Page 23: Main Server Setting

    Main Server Setting Step_1: Set report mode, main server, main server port, and SMS gateway in this window. The meaning of these parameters, please refer to the “GV300 @Track Air Interface Protocol” for detail. Step_2: Click “Check if main backend server is available” to check if main server IP and port is valid in network.

  • Page 24: Fixed Time Report Setting

    3.1.4. Fixed Time Report Setting Step_1: Set check interval, send interval, discard no fix in this window. The meaning of these parameters, please refer to the “GV300 @Track Air Interface Protocol” for detail. Step_2: Click “Next”. TRACGV300MT001 - 23 -...

  • Page 25: Send Command To Device

    GV300 Manage Tool Step_1 Step_2 3.1.5. Send Command to Device Step_1: Click “Send Command”. Command GTBSI, GTSRI, and GTFRI will send to device. Step_2: If the settings download successfully, the result returns OK. Click “OK”, the result windows closed. Quick setting is completed.
  • Page 26 GV300 Manage Tool Step_1 Step_2 TRACGV300MT001 - 25 -...

  • Page 27: Device Configuration In Professional Setting Mode

    GV300 Manage Tool 3.2. Device Configuration in Professional Setting Mode The manage tool is developed based on the @Track Air Interface Protocol. Please refer to “GV300 @Track Air Interface Protocol” for detail. Following is a general procedure to configure GV300 with manage tool.

  • Page 28: Read/Save All Configuration

    GV300 Manage Tool 3.3. Read/Save All Configuration Step_1: It is recommended to read all configurations from device before save the configuration. Select “Read All Configuration””Read From Device”. NOTE：Command GTDAT will not be reade when ”Read From Device”. Step_2: After read successfully, click “Save All Configuration” in toolbar.

  • Page 29: Load/Send All Configuration

    GV300 Manage Tool 3.4. Load/Send All Configuration Step_1: Before send all configurations, please load the configuration file or set all parameters in commands. To load configuration file, please select “Read All Configuration” ” Load Configurations From File”. And then select the configuration file you needed.
