GV65 Manage Tool User Guide
GSM/GPRS/GNSS Tracker
TRACGV65MT001
Version: 1.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Queclink GV65

Summary of Contents for Queclink GV65

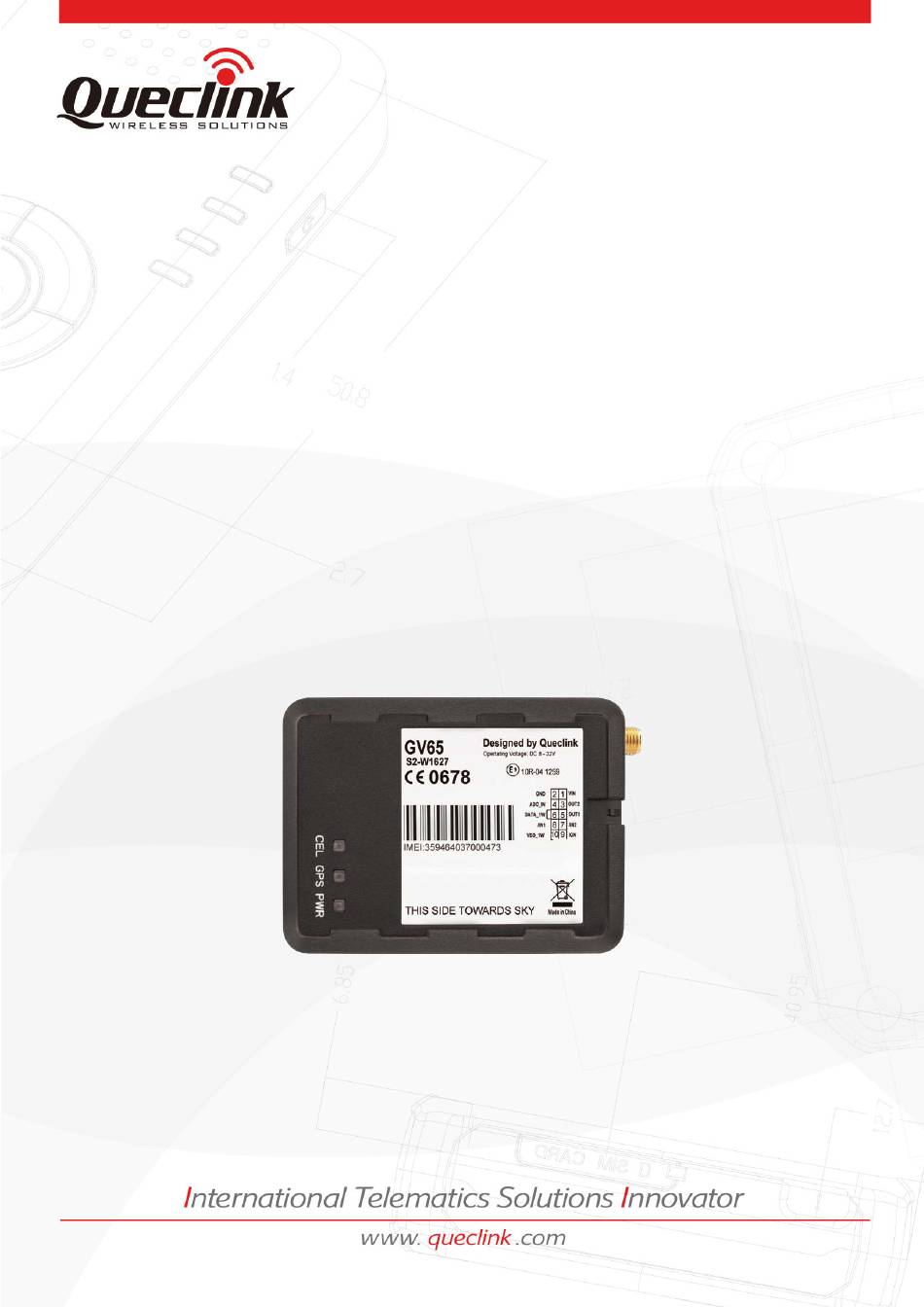

  • Page 1 GV65 Manage Tool User Guide GSM/GPRS/GNSS Tracker TRACGV65MT001 Version: 1.03...
  • Page 2 TRACGV65MT001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.

  • Page 3: Table Of Contents

    GV65 Manage Tool User Guide Contents Contents ............................2 0. Revision History ..........................3 1. GV65 Manage Tool Interface ......................4 1.1. System Requirements ......................4 1.2. COM Setting ........................4 1.3. Quick Setting Wizard ......................5 1.4. Professional Setting Windows ..................... 6 1.4.1.

  • Page 4: Revision History

    GV65 Manage Tool User Guide 0. Revision History Version Date Author Description of Change 1.00 2015-07-09 Jane Liu Initial. 1.01 2016-06-21 Penny Pei Added the AT+GTCFU command. 1.02 2016-11-28 Miracle Shi Added the commands AT+GTOEX and AT+GTIEX. 1.03 2020-02-27 Alfy Li Updated the picture in Help Menu to support Protocol Version.

  • Page 5: Gv65 Manage Tool Interface

    GV65 Manage Tool User Guide 1. GV65 Manage Tool Interface GV65 Manage Tool is PC software which can be used to configure GV65 through UART. It is easy for the backend server developers to configure GV65 with the Manage Tool, which has friendly user interface.

  • Page 6: Quick Setting Wizard

    The Quick Setting Wizard provides a basic setting for the device. If you want use more functions of GV65, please change to enter professional setting mode. Before you enter Quick Setting Wizard, you must make sure the COM connection is OK.

  • Page 7: Professional Setting Windows

    GV65 Manage Tool User Guide 1.4. Professional Setting Windows Title Bar Menus Toolbar Command Browser Command Operation Space Status Bar 1.4.1. Title Bar Title Bar indicates current command title and the name of this Manage Tool. 1.4.2. Menus There are “Start”, “Tool”, and “Help” in menus.
  • Page 8 GV65 Manage Tool User Guide [Quick Setting Wizard]: It is used to open Quick Setting Wizard directly. Please refer to Chapter 2.1 for details. [Operation Log]: It is used to display/hide the operation log. Operation [Options]: It is used to set the basic settings of the Manage Tool.

  • Page 9: Help Menu

    GV65 Manage Tool User Guide “Advanced Options” includes COM settings and other settings. COM Settings is used to configure COM settings. It is recommended to use default settings for these settings. 1.4.2.3 Help Menu [About]: Select “About”. Then the following pop-up window will be displayed.

  • Page 10: Toolbar

    GV65 Manage Tool User Guide “Manage Tool Version” indicates the version of this Manage Tool. “Support Protocol Version” indicates the Protocol which this Manage Tool is used for. “Device Version” indicates the firmware which connects to the PC. It is recommended to use the same version as Support Version.

  • Page 11: Status Bar

    GV65 Manage Tool User Guide “Read From Device”: It is used to read all configurations (except the command AT+GTRTO) from the device which connects to PC. “Load Configuration From File”: It is used to load configuration file to the Manage Tool.
  • Page 12 GV65 Manage Tool User Guide Hex Report Mask AT+GTHRM Jamming Behavior Setting AT+GTJBS Fixed Report Information AT+GTFRI Position Related Report Frequency Change of Fixed Report AT+GTFFC Information Geo-Fence Information AT+GTGEO Speed Alarm AT+GTSPD SOS Function AT+GTSOS AT+GTHBM Harsh Behavior Monitoring...

  • Page 13: Command Operation Space

    GV65 Manage Tool User Guide 1.4.5.2 Command Operation Space Command Description Parameters Area Command Display [Command Description]: There is a short description for the command. [Parameters Area]: Set/Read parameters of this command in this area. [Command Display]: Command with parameters in parameters area is displayed in this area.

  • Page 14: Operation Failed Interface

    GV65 Manage Tool User Guide Command sent successfully. 1.5.2. Operation Failed Interface There should be something wrong with COM port connection if the failure reason is timeout. TRACGV65MT001 - 13 -...
  • Page 15 GV65 Manage Tool User Guide There should be COM port that is occupied. Please close all other COM-related applications. Please change to correct the device password if Password Error occurs. Parameter setting error. Please modify the parameters. TRACGV65MT001 - 14 -...

  • Page 16: Operation Instruction

    2. Operation Instruction 2.1. Device Configuration with Quick Setting Wizard The Manage Tool is developed based on the @Track Air Interface Protocol. Please refer to “GV65 @Track Air Interface Protocol” for details. The Quick Setting Wizard provides basic settings for the device. If you want to use more functions of GV65, please change to professional setting mode.

  • Page 17: Main Server Setting

    Step_1: Set report mode, main server, main server port, and SMS gateway in this window. For the meanings of these parameters, please refer to the “GV65 @Track Air Interface Protocol”. Step_2: Click “Check if main backend server is available” to check if main server IP and port is valid in network.

  • Page 18: Fixed Time Report Setting

    Step_2 Step_3 2.1.4. Fixed Time Report Setting Step_1: Set send interval and discard no fix in this window. For the meanings of these parameters, please refer to the “GV65 @Track Air Interface Protocol”. Step_2: Click “Next”. TRACGV65MT001 - 17 -...

  • Page 19: Send Command To Device

    GV65 Manage Tool User Guide Step_1 Step_2 2.1.5. Send Command to Device Step_1: Click “Send Command”. Commands AT+GTBSI, AT+GTSRI, and AT+GTFRI will be sent to the device. Step_2: If the settings are downloaded successfully, the result returns OK. Click “OK”, the result windows will be closed.
  • Page 20 GV65 Manage Tool User Guide Step_1 Step_2 TRACGV65MT001 - 19 -...

  • Page 21: Device Configuration In Professional Setting Mode

    Step_1: Select “Quick Start Settings”. After that, the parameters of AT+GTQSS are shown in Command Operation Space. Step_2: The command message which shall be sent to GV65 will be generated based on input and displayed here. Please note this command message can also be sent to GV65 through SMS or GPRS.

  • Page 22: Read/Save All Configurations

    GV65 Manage Tool User Guide 2.3. Read/Save All Configurations Step_1: It is recommended to read all configurations from the device before saving the configuration. Select “Read All Configuration””Read From Device”. Note: Commands AT+GTOUT and AT+GTRTO will not be read when clicking “Read From Device”.

  • Page 23: Load/Send All Configurations

    GV65 Manage Tool User Guide 2.4. Load/Send All Configurations Step_1: Before sending all configurations, please load the configuration file or set all parameters in commands. To load configuration file, please select “Read All Configuration”  ”Load Configurations From File”. And then select the configuration file you need.
  • Page 24 GV65 Manage Tool User Guide Step_2: You can set the parameters in commands based on the configuration file, and then click “Send All Configuration” in toolbar. Note: The commands AT+GTQSS, AT+GTOUT, AT+GTRTO, AT+GTCFU, AT+GTFVR, AT+GTSMS and AT+GTUPC will not be sent when clicking “Send All Configuration”.
