- Page 1 Operation Manual BODR-7001 to 7004 Drying Oven www.biolabscientific.com...
-
Page 2: Table Of Contents
Drying Oven INDEX 1 Instructions for Safety.................3 2 Product Profile....................5 2.1. Outlook....................4 2.2. Power on....................5 2.3 Operation steps..................6 2.4 Ways to improve the accuracy of temperature control......7 2.5 Function parameter table................7 2.6 Operation of over-temperature protector as an optional component..7 3 Maintenance and Instructions..............9 4 Appendix....................10 www.biolabscientific.com... -
Page 3: Instructions For Safety
Drying Oven 01 Instructions for Safety: ! Dangerous (possible to cause serious loss to properties or injuries to personages) 1. The Product must be safely grounded (make sure not to use the ZL or neutral line as the earth wire). 2. -
Page 4: Product Profile

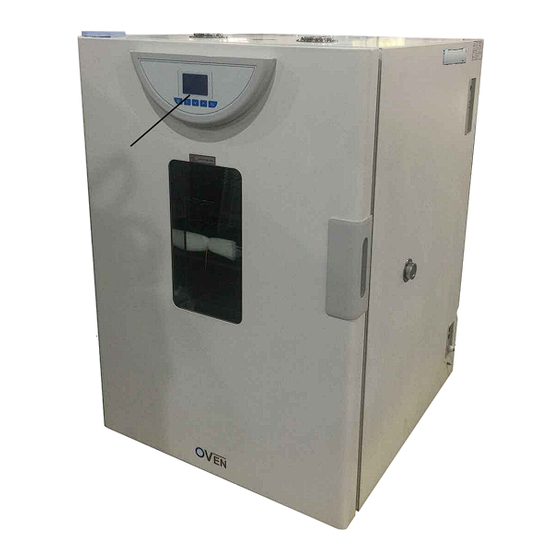

Drying Oven the box door, damage to the product and injury accident. 02 Product Profile 1. Outlook (1) Box Door (2) Damper Regulator (3) Display Penal of Thermal Controller (4) Door Handle (5) Test Hole (6) Power Switch ≥50cm side Back ≥50cm 2. -
Page 5: Power On
Drying Oven 1.5 For power voltage of the product, refer to technical indicators.（Table 1） 1.6 The product should be placed rationally with adjustment to the position and quantity of shelf unit, into which working articles are put. Sufficient space should be left up and down and all around. -
Page 6: Operation Steps
Drying Oven 2.6 Check temperature control accuracy ℃ 2.6.1 Select a digital thermometer with a resolution of 0.1 that has passed the verification and is within the verification period as a standard and put it into the product work room, and ensure that the sensor temperature sensor is in the geometric center of the work room. -
Page 7: Function Parameter Table
Drying Oven 05 Function parameter table In the standard state, press the SET key and the shift key at the same time for more than 3 seconds, the LCD screen displays the LK code, and you can enter the password setting level interface. -
Page 8: Operation Of Over-Temperature Protector As An Optional Component
Drying Oven ①When PO =0, after open the power, the controller in a stopped state, by long press star/stop key is up and running. ②When PO =1, Boot mode 0～2 after open the power, the controller will be running. ③When PO =2, running from last power began to run. -
Page 9: Maintenance And Instructions
Drying Oven 6.1 The set value of temperature limit should be bigger than or equal to（SV+AL）+ （10～15）℃ Temperature at over- and limiting-temperature Operating Temperature operating instructions 6.2 As is shown in Figure 2, the required the required limit temperature is set by the ＋ and — buttons on the over-temperature dial on the panel. -
Page 10: Appendix
Drying Oven 04 Appendix 1. Technical Indices The product is produced as per corporate standard Q/TIWY 2-2004 Model Index BODR-7001 BODR-7002 BODR-7003 BODR-7004 Power Supply Voltage 220V 50-60 Hz Thermal Control Range RT+10-250℃ Temperature Resolution 0.1℃ Fluctuation ±1℃ Chamber size (mm) 340×320×340... - Page 11 Drying Oven The dual-way silicon control is Replace (Model: BTA16 or BTA26). not connected The heating tube’s connection Repair or replace. is off or short-cut Heating graph is not lit and the Replace the silicon control out of temperature rises order.
- Page 12 Drying Oven Email: contact@biolabscientific.com Website: www.biolabscientific.com www.biolabscientific.com...
