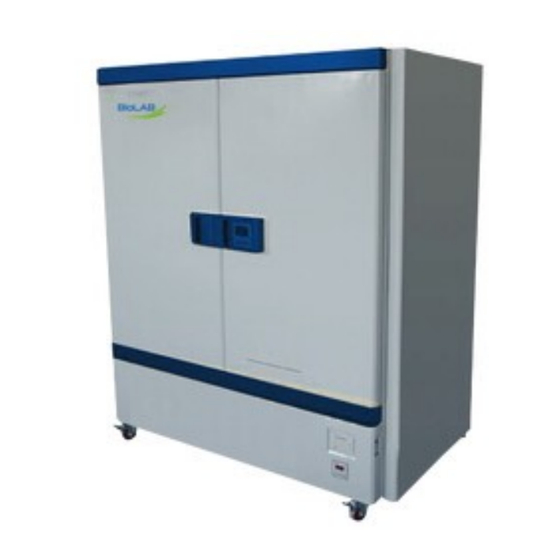

  • Page 1 Operation Manual BIBD-205 BOD Incubator www.biolabscientific.com...
  • Page 2: Table Of Contents

    BOD Incubator Index 1 Notification................3 2 Safety Instructions..............3 Safety Precaution..............6 3 Product (Application, operating principle, Parameters)...8 4 Structure.................9 5 Device Installation..............10 6 Operation Method..............12 Alarm and Security Functions..........16 7 Daily use, Maintenance and Care..........16 8 Troubleshooting..............18 9 Specification Configuration Table...........18 10 Product Packing List............19 www.biolabscientific.com...
  • Page 3: Notification

    BOD Incubator 01 Notification • To ensure the safe use of this equipment, please read this manual carefully before use. • Keep this manual in a place convenient for users of this equipment to consult. • The company does not undertake the safety guarantee for the use and operation methods other than those specified in this manual.
  • Page 4 BOD Incubator Protective conductor terminal Power on Power off Warning, Caution, Danger Warning This equipment shall not be placed outdoors for use. This equipment can only be installed by qualified engineering technicians or maintenance personnel. The equipment shall be installed on a solid ground and proper care shall be taken to prevent the equipment from overturning.
  • Page 5 BOD Incubator When storing toxic, harmful or radioactive substances, please use this equipment in a safe area. Before repairing or maintaining the equipment, be sure to turn off the power switch (if any) and disconnect the power supply of the equipment. Do not touch any electrical parts such as power plugs or any switches with wet hands.
  • Page 6: Safety Precaution

    Principle of Operation BOD incubator transforms the actual temperature felt by temperature sensor in chamber to electrical signal and control the work of heater and compressor by microcomputer to reach the required temperature. Technical Parameter Model BIBD-201 BIBD-202 BIBD- BIBD-204 BIBD-205 www.biolabscientific.com...
  • Page 7 BOD Incubator ℃ ℃ 4 ~70 Temp. Range ℃ ℃ ±1 (@37 ) Temp. Uniformity ±0.5℃ Temp. Fluctuation Power Supply ~220V ±10V, 50/60Hz Power 1000W 1100W 1350W 2000W Consumption Refrigerant R134 ℃ Ambient temp.:10~30 ; Relative humidity≤70%RH Work Ambient Equipment Class Class I Note: This machine has the function of low temperature automatic frost.
  • Page 8: Structure

    BOD Incubator 04 Structure Component Schematic diagram of single door product structure (for reference only) 1. water collector 2. truckle 3. compressor 4. overflow pipe 5. shelves 6. evaporator 7. fan 8. socket 9. lamp 10. glass door 11. outer door 12.
  • Page 9 BOD Incubator Schematic diagram of double door product structure (for reference only) 1. water 2. compressor 3. overflow pipe 4. shelves collector 5. glass door 6. outer door 7. outer door 8. display handle screen 9. door lock 10. power 11.
  • Page 10: Device Installation

    BOD Incubator 1 Set key: click into the set state, press the key for 3S to enter the internal parameter state; 2 Shift / Reservation key: in the setting state, click it to move the input cursor; in the standby state, click it and "ord"...
  • Page 11 BOD Incubator • With solid and flat ground. The equipment must be installed on a solid and flat ground. Uneven ground or inclined installation of equipment may cause equipment failure or personal injury. The shaking and noise of the equipment can be avoided by installing the equipment under stable conditions. •...
  • Page 12: Operation Method

    BOD Incubator Before closing the door and idling the device, make sure the device is completely dry. 5 Before moving the equipment Before moving the equipment, if there is a water collector, the water collector should be emptied. Spilled or splashed water may cause electric leakage or electric shock. Preparation Before Operation Before starting the equipment for the first time, please follow the following procedures: 1 Take out the shelves and other accessories inside the equipment.
  • Page 13 BOD Incubator Range Symbol Parameter Functional description (Initial value) name 30.0℃ setting Set temperature during temperature operation The unit h/min is setting time (0~9999) 60 determined by the parameters in the password When the constant value mode is selected, click the setting key to set the temperature and time in turn.
  • Page 14 BOD Incubator Lock key parameters Range Symbol Parameter Functional description (Initial value) name password screen lock (0,9999) 3min On the main interface, if no key is time pressed during unlock (0,9999) 32 the screen locking time, the screen password will be locked. Unlock: click the setting key to display "Lok", and enter the unlock password to unlock.
  • Page 15 BOD Incubator Measurement calibration Range Symbol Parameter name Functional description (Initial value) password chamber temperature zero (-10.0,10.0) temperature adjustment=actual temperature 0℃ zero adjustment value - instrument measured value temperature full adjustment=1000 chamber (-99,999) * (actual temperature value - instrument temperature measured value) / instrument full measured value...
  • Page 16: Alarm And Security Functions

    BOD Incubator timing mode (1,2) 1 Start timing when the temperature reaches Refrigeration parameters Range (Initial value) Symbol Parameter Functional name description password wind speed Wind speed (50~100) 100% setting gear setting Note: Other parameters are internal debugging parameters, please operate under the guidance of professionals! Alarm and Security Functions Fault code indication...
  • Page 17 BOD Incubator equipment. This machine is equipped with two sets of fuses. In case of failure during operation, please cut off the power supply first, check whether the fuses are in good condition, and then check other parts. Be sure to close the inner door, and then close the outer door. If the inner door is not fully closed, even if the outer door is closed, the equipment may not work at its maximum performance.
  • Page 18: Troubleshooting

    630×680×1250 650×680×1400 650×740×1726 Dimensions Internal 490×390×610 510×390×760 510×450×1090 Dimensions Volume 100L 150L 250L Model BIBD-204 BIBD-205 Housing 745×930×1695 1503×910×1820 Dimensions Internal 600×640×1050 1220×585×1123 Dimensions Volume 400L 800L Shell Made of cold-rolling steel with static spray plastic Inner vessel Made of mirror stainless steel...
  • Page 19: Product Packing List

    BOD Incubator Door double-door design Inner door Made of 5mm thickness of toughened glass Shelf Made of carbon steel with chromium plating and adjustable Insulation system Fill in Styrofoam Non-CFC refrigerant which is efficient and energy-saving; Refrigeration Integrated refrigeration system; system Heating system Adopt heating pipe...
  • Page 20 BOD Incubator 2 pcs (100L) 3 pcs (150L) Shelves 4 pcs (250L) 4 pcs (400L) 6 pcs (800L) Water Collector 1 pc Overflow Pipe 1 pc Plastic hard pipe www.biolabscientific.com...
  • Page 21 BOD Incubator Email: contact@biolabscientific.com Website: www.biolabscientific.com www.biolabscientific.com...
