- Page 1 Operation Manual BSCO-203 Cooled Shaking Incubator Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
- Page 2 Cooled Shaking Incubator Please send this "instruction manual" to the final operator! ● Please read and understand all the contents of the "Instruction Manual" before starting the operation. Our company will not be responsible for the adverse consequences caused by misoperation.
-
Page 3: Table Of Contents
Cooled Shaking Incubator Index 1 Safety tips....................4 2 Scope of application..................4 3 Structure introduction.................5 4 Working conditions..................6 5 Technical parameters.................7 6 Instructions for use..................8 www.biolabscientific.com... -
Page 4: Safety Tips
Cooled Shaking Incubator 01 Safety tips 1) Instruments and equipment must be effectively grounded. 2) The external power supply must meet the requirements of the thermostatic water tank. 3) Plug and socket with good contact should be used, and the power must match. 4) It is not allowed to lengthen or shorten the power connection at will. -
Page 5: Structure Introduction

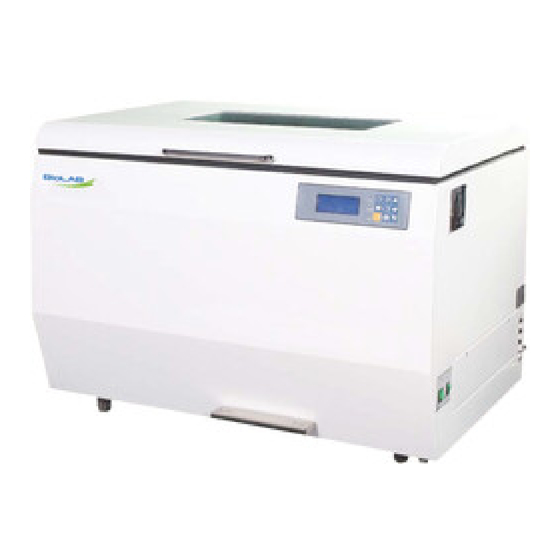

Cooled Shaking Incubator 03 Brief introduction of the structure This product is a shaking table with full temperature and constant temperature. The inner container is welded with stainless steel, and the outer shell is made of high-quality cold-drawn plate. At the same time, plastic spraying technology is adopted to improve the anti-corrosion effect, intelligent temperature control and temperature sensor Pt100 platinum resistance. -
Page 6: Working Conditions
Cooled Shaking Incubator 04 Working conditions ℃ 1. The ambient temperature is+5 ~ 40 . 2. Relative humidity ≤ 85% RH. 3. Atmospheric pressure is 86 ~ 106 kPa. 4. There is no strong vibration around, and the clearance around is more than 50cm. 5. -
Page 7: Technical Parameters
Cooled Shaking Incubator 05 Technical parameters product name Horizontal Thermostatic Shaker(Room temperature type) product model BSCO-203 ℃ ℃ Temperature 4~60 (when the ambient temperature is 25 ) control range Rotational speed 30~300 range (rmp) Oscillation Ф26 amplitude (mm) Tray size (mm) -
Page 8: Instructions For Use
Cooled Shaking Incubator 06 Instructions for use 1. Timing function When the total timing time (remaining time) is set to "0", it means that there is no timing function, and the remaining time is displayed (normally open) and the controller runs continuously;... - Page 9 Cooled Shaking Incubator The controller is in the running state: If the temperature control effect is not satisfactory, ℃ please start the self-setting function. After pressing the shift key for 5 seconds, the indicator light flashes, and the controller starts self-setting. After the self-setting is automatically ℃...
- Page 10 Cooled Shaking Incubator proportio speed. nal belt Heating 1 ~ 3600 The smaller the integral action time constant, integratio seconds Iu, the stronger the ability to correct static error. n time Heating Differential action time constant, the greater du, differentia 0～3600S the stronger the ability to prevent overheating.
- Page 11 Cooled Shaking Incubator setting Upper temperat -60.0～ Set the upper limit of measuring temperature 65.0 ure limit 100.0 setting Defrostin Time between defrosting (set temperature < 5 g interval 0～9999h degrees) Defrostin Defrosting holding time (set temperature < 5 0～9999s g time 1 degrees) Defrostin...
- Page 12 Cooled Shaking Incubator ≦ 6. set the compressor open mode when (Art) ambient temperature +8 degrees, and do not start the compressor when > (art) ambient temperature +8 degrees is set. （0～ cryogenic When the temperature is set to < ctt, the temperatur 100）...
- Page 13 Cooled Shaking Incubator when starting operation, and the speed is not controlled; Speed and its parameter setting 1. Click the "Speed" key to enter the speed setting state, and the speed display area displays the position selection, which can be modified to the required setting value by shifting, increasing and decreasing keys;...
- Page 14 Cooled Shaking Incubator (0-1) Starting direction of motor: 0 Starting direction forward rotation, 1 reverse rotation. (0-9999)h/m Forward rotation time, set to 0 to Forward rotation time cancel forward and reverse rotation function. (0-9999)h/m Reverse time, set to 0 to cancel the reversing time forward and reverse function.
- Page 15 Cooled Shaking Incubator para Paramet Set range functional description Range er name (ex- factory char value) acte （1） Power- 0～1 0, power-on motor stops; 1, power-on on mode operation; 2, power-off memory function （0） Program 0～2 0: fixed value control; 1:99 section slope control control;...
- Page 16 Cooled Shaking Incubator value, and the clock symbol is always on. Note: m is expressed as minutes; H is expressed as hours. 2. Press and hold the "Temperature" key for 3 seconds to display (enter the password) prompt in the display area. Enter the password value in the display area to enter the temperature internal parameter setting state, and then click the "Temperature"...
- Page 17 Cooled Shaking Incubator Email: contact@biolabscientific.com Website: www.biolabscientific.com www.biolabscientific.com...
