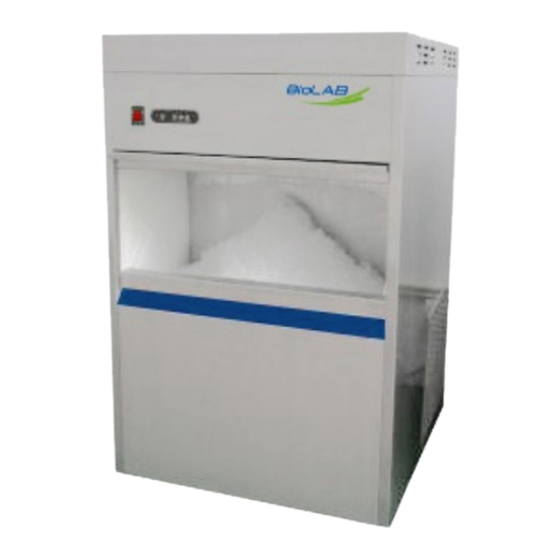

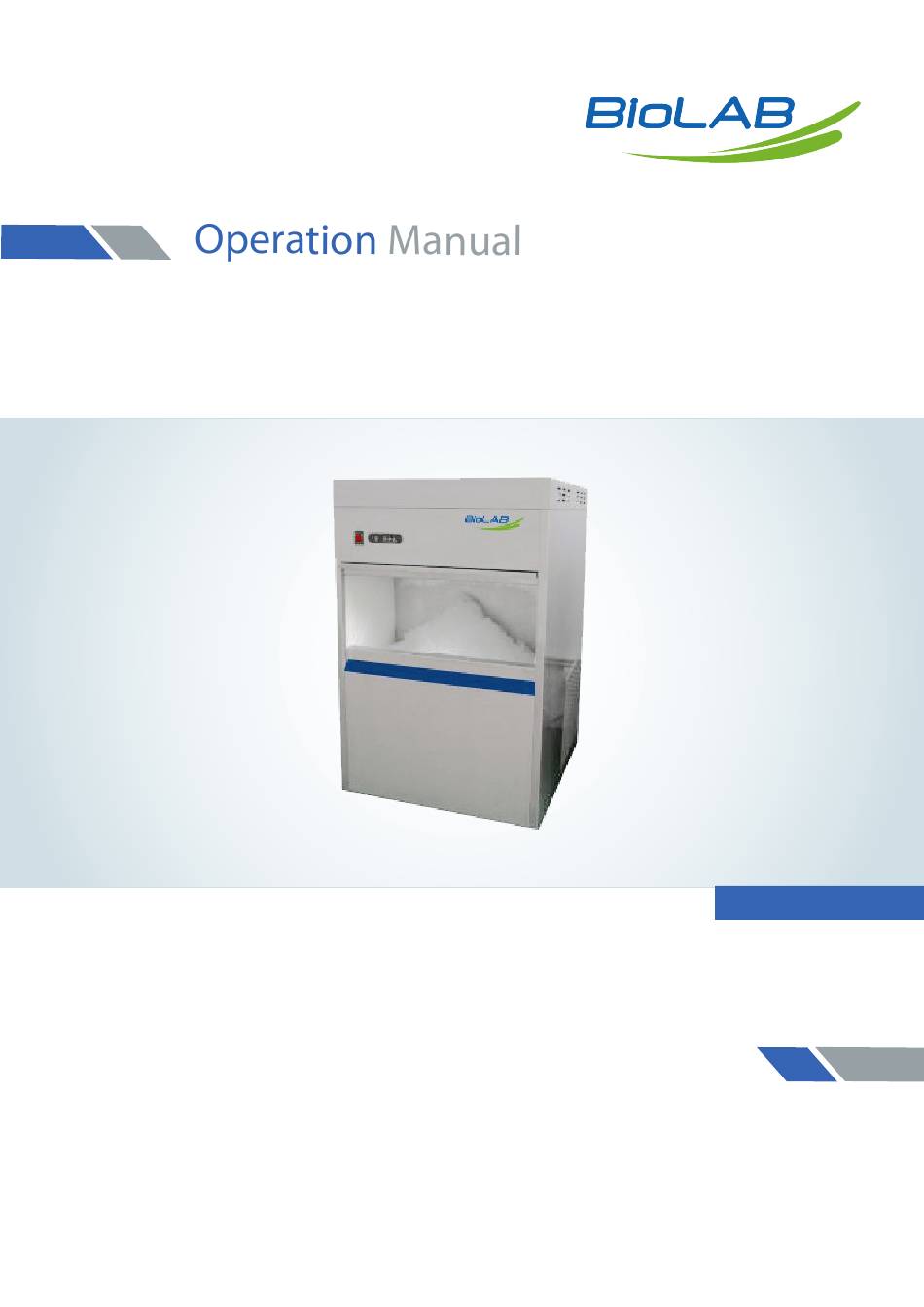

- Page 1 BIFL-202 Ice Flaker Thank you very much for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
- Page 2 Ice Flaker BIFL-202 Index 1. Features................................03 2. Notes Before Operation........................03 3. Structure..............................04 4. Operation Procedures...........................05 5. Maintenance.............................05 6. Technical Parameters..........................06 7. Troubleshooting............................06 8. Circuit Diagram............................07 www.biolabscientific.com...
- Page 3 Ice Flaker BIFL-202 Features Our Ice Flaker Series are designed in cubic shape with the curved front panel and curved door (or stainless steel flat front panel and flat door) for nice appearance. There are many advantages of the ice maker, such as quick ice making, great ice making capacity, nice ice shape and ice dropping quickly.
- Page 4 Ice Flaker BIFL-202 Structure 1. Switch 5. Ice Shovel 9. Water Outlet Tube 2. Operation Board 6. Back Panel 10. Foot Screw 3. Door 7. Power Cable 11. Water Inlet Tbe 4. Temperature Sensor 8. Screw for Drainage 12. Drainage Tube...
- Page 5 Ice Flaker BIFL-202 Operation Procedures 1. Unpack the package and take out the attached documents and spare parts such as the wa- ter inlet and outlet tubes, ice shovel and gaskets, etc. 2. Position the ice maker on a well ventilated place and leave at least 150mm space between the ice maker and the wall.
- Page 6 Ice Flaker BIFL-202 Technical Parameters Model BIFL-202 Capacity 30 kg/24 h Storage Bin Capacity 10 kg Refrigerant R134a Condenser Type Air cooled Overall Dimension 330x470x605 mm Packing Dimension 405x555x665 mm Weight 28/31 kg Power 300 W Power Supply 220 V, 60 Hz The specifications are subject to be changed without notice.
- Page 7 Ice Flaker BIFL-202 1. Recharge the refrigerant and check the leakage again. 1. Refrigerant leakage. 2. Charging N2 to check whether Compressor works, but the sysem is blocked and 2. The refrigerating system is no ice is made. replace the filler.
- Page 8 BIOLAB SCIENTIFIC LIMITED 91 Trafford Crescent, Markham, Ontario, L3R 7J3, Canada +1 707 533 1445 info@biolabscientific.com www.biolabscientific.com...
