- Page 1 Operation Manual Series 200 Orbital Shaker Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Orbital Shaker BSOT series 200 Index CHAPTER 1 SAFETY WARNINGS AND GUIDELINES----------------------------------3 CHAPTER 2 INTRODUCTION----------------------------------------------------------5 CHAPTER 3 SPECIFICATION-----------------------------------------------------------5 CHAPTER 4 PREPARATION------------------------------------------------------------6 CHAPTER 5 OPERATION GUIDE------------------------------------------------------9 CHAPTER 6 FAILURE ANALYSIS AND TROUBLE SHOOTING------------------------11 APPENDIX A: WIRING DIAGRAM OF ORBITAL SHAKER----------------------------12 www.biolabscientific.com... -
Page 3: Chapter 1 Safety Warnings And Guidelines
Orbital Shaker BSOT series 200 Safety Warnings and Guidelines 1 Important operation information of the security Users should have an entire conception of how to use the instrument properly before operating it. Please read this operation manual carefully before using the instrument. It is forbidden operating before read the operation manual. - Page 4 Orbital Shaker BSOT series 200 Power off when operation finished. If do not use the instrument for a long period, pull off the connector plug, cover a piece of cloth on the instrument to prevent from dust. Pull the connector plug from the jack at once in the following case, and contact the vendor.
-
Page 5: Chapter 2 Introduction

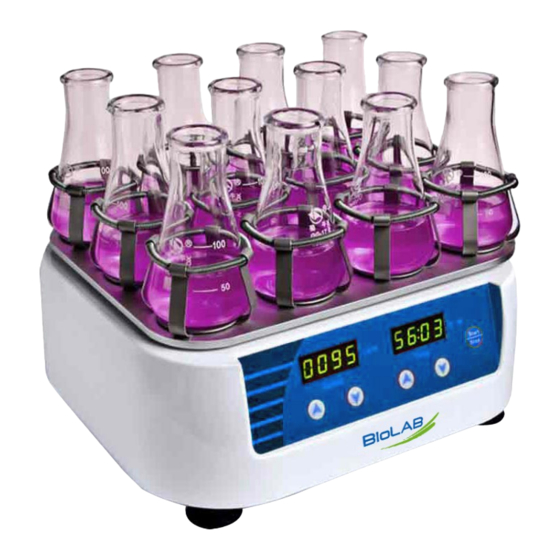

Orbital Shaker BSOT series 200 Introduction The orbital shaker is powerful variable speed shaker which provides efficient orbital motion. It is microprocessor controlled instrument with long-life brushless motor. It can be applicable in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology. -
Page 6: Chapter 4 Preparation
Orbital Shaker BSOT series 200 Max. Capacity 2.0kg 2.0kg 2.0kg Power Dimension (mm) 284x264x108 284x264x108 284x264x108 Net Weight (kg) Preparation This chapter mainly describes the instrument’s mechanical structure, the keyboard and functions of each key, as well as preparations before power on. Please learn this chapter well before the orbital shaker is to be operated at the first time. - Page 7 Orbital Shaker BSOT series 200 2. Keyboard and Display Panel 3.Key Function decrease the time value or speed value increase the time value or speed value Key for start or stop. Press Start/Stop key to start or stop the START/STOP program.
- Page 8 Orbital Shaker BSOT series 200 5. Platform Installation Six kinds of platforms BX-103555, BX-103551, BX-103554, BX-103553, BX-103552, BX- 103556 are optional for orbital shaker. BX-103551 BX-103555 BX-103553 BX-103554 1) Installation for BX-103555, BX-103551, BX-103552, BX-103556 Take out the pad Fix the platform with 4 Put back the pad to M4X8 screws.
-
Page 9: Chapter 5 Operation Guide
Orbital Shaker BSOT series 200 2) Installation for BX-103554 or BX-103553 Take out the 2 flask Fix the platform with Put back the 2 flask clamps in the 4 M4X8 screws. clamps to the platform. middle. Operation Guide 1. - Page 10 Orbital Shaker BSOT series 200 b) Press or of time key. It displays last setting time. Refer to the right chart, it is “00:35” (timing is 35 minutes). The last digit flickers. Press or of 00:35 time key to adjust the timing value.
-
Page 11: Chapter 6 Failure Analysis And Trouble Shooting
Orbital Shaker BSOT series 200 Failure Analysis and TroubleShooting Failure Analysis and Processing Procedures Phenomenon Possible Causes Processing Procedure No power Check the power No signal display when Broken switch Exchange the switch power on. Others Contact with the seller Samples placed Shaking heavily Place the samples evenly... -
Page 12: Appendix A: Wiring Diagram Of Orbital Shaker
Orbital Shaker BSOT series 200 Appendix A: Wiring Diagram of Orbital Shaker Below diagram is just for reference. It is subject to change without prior notice.） AC100V ~ AC240V J2 DC24V Main Board Motor PORT1 www.biolabscientific.com... - Page 13 Orbital Shaker BSOT series 200 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com www.biolabscientific.com...
