Summary of Contents for BioLAB BDIB-103
- Page 1 Operation Manual BDIB-103 Dry Bath Incubator Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
- Page 2 Dry Bath Incubator BDIB-103 Safety Warnings and Guidelines 1 Important Operation Information of The Security Users should have an entire conception of how to use the instrument properly before operating it. Please read this operation manual carefully before using the instrument.
- Page 3 Dry Bath Incubator BDIB-103 Make sure the voltage is complying with the voltage required. Make sure the rated electrical outlet load no lower than the demand. Power line should be replaced with the same type if it any damage. Make sure there is nothing on the power line. Hold the jack when pull out the power line.
-
Page 4: Table Of Contents
Dry Bath Incubator BDIB-103 Index Chapter 1: Introduction..................05 Chapter 2: Specifications.................05 Chapter 3: Basic Operation Instruction............07 Chapter 4: Operation Guide................07 Chapter 5: Error Analysis and Trouble Shooting..........12 Annex 1: Wiring Diagram of BDIB-103 ............13 www.biolabscientific.com... -
Page 5: Chapter 1: Introduction

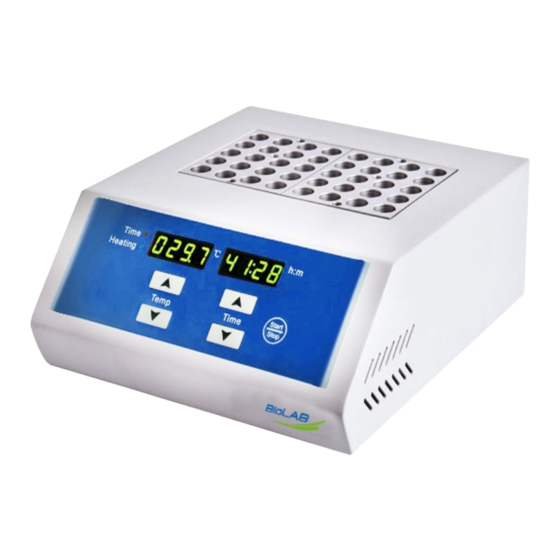

Dry Bath Incubator BDIB-103 Introduction The dry bath incubator is a microprocessor-controlled thermostat device with high precision of temperature control. It is good for sample preparation parallelism. And it is used as an alternative to the traditional water bath devices. It is widely used in the cultivation, preservation and reaction of various samples. - Page 6 Dry Bath Incubator BDIB-103 Block Temp.Uniformity ≤0.3°C @40°C Block Temp.Uniformity ≤0.5°C @>100°C Temp. Display 0.1°C Accuracy Heating Speed ≤30min (20°C to 150°C) Time Range 1min ~99h59min Sample Capacity 2 standard blocks Voltage AC 220V / 110V Power 400W Fuse 250V, 3A/6A...
-
Page 7: Chapter 3: Basic Operation Instruction
Dry Bath Incubator BDIB-103 Basic Operation Instruction This chapter mainly describes the instrument’s mechanical structure, the keyboard and functions of each key, as well as preparations before power on. Please learn this chapter well before the Thermo Shaker to be operated the first time. - Page 8 Dry Bath Incubator BDIB-103 2 Operation panel 3 Button instruction Decreasing button: decrease the value set Increasing button: increase the value set START/STOP Operation Guide 1. Temperature and time setting a) Power on, the LED displays “ ” as the right chart. The instrument enter to the initial state with sound of “du…”.
- Page 9 Dry Bath Incubator BDIB-103 change the temperature setting value. Keep press will lead the value changing speed tens, hundreds, or thousands times fast. When the value reaches the target, release key, the instrument automatically confirm and save the value.
- Page 10 Dry Bath Incubator BDIB-103 2) Both the environmental and the block temperature should be lower than 35 C when calibration. Adjustment Methods: a) Power on the instrument, it enters into waiting interface. Make sure the current temperature in display is below 35 C. If the temperature is higher than 35 C, please wait ...
- Page 11 Dry Bath Incubator BDIB-103 c). Press key simultaneously to enter the temperature calibration interface as the right chart. LED display “ ” in the time display, the temperature display the current temperature and the program auto control the temperature to 40 C.
-
Page 12: Chapter 5: Error Analysis And Trouble Shooting
Dry Bath Incubator BDIB-103 d) Screw the raiser out from the block, then fix the raiser to another block needed. Put the block in the instrument and fix it with screws. Notice: It is a little complicated to exchange the block, please be a bit patient. -
Page 13: Annex 1: Wiring Diagram Of Bdib-103
Dry Bath Incubator BDIB-103 Annex 1：Wiring Diagram of BDIB-103 （Below diagram is just for reference. It is subject to change without prior notice.） www.biolabscientific.com... - Page 14 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com...
