- Page 1 Operation Manual BODR 100 series Drying Oven Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Drying Oven BODR 100 series Index 1. Product Overview ....................03 2. Structural Features ....................03 3. Working Principle ....................04 4. Working Conditions ....................04 5. Main Technical Parameters ..................04 6. Instructions of Blast Drying Box .................05 7. Instructions of Thermostatic Drying Box ............06 8. -
Page 3: Product Overview

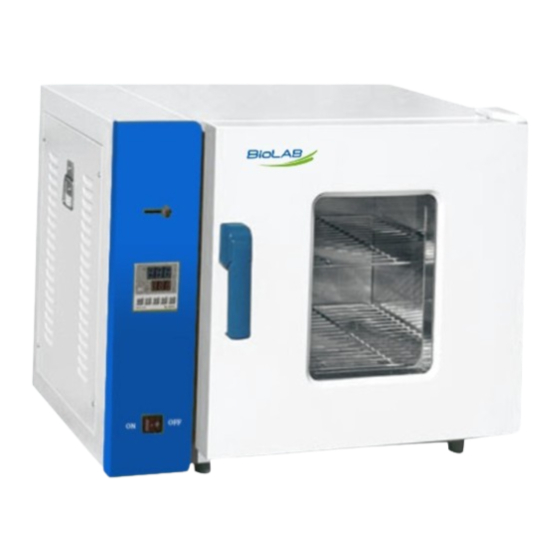

Drying Oven BODR 100 series Product Overview This product is applied to drying, melting, baking, sterilization, etc in the Industrial and mining enterprises, labs, universities and research institutes. Structural Features Cold rolling steel electrostatic spraying exterior, novelty and nice ·Stainless steel or cold rolling steel corrosion- resistant inner chamber ·Plastic window in the center of the door for observation... -
Page 4: Working Principle
Drying Oven BODR 100 series Working Principle After heated in the chamber, the air exchanges the heat with the item uniformly by natural convection (forced convection in air forced drying oven). Working Conditions Voltage: 220±22V; 50±1Hz ·Ambient Temperature: 5~40℃ ·Relative humidity: < 85% ·No strong shock and airflow around... -
Page 5: Instructions Of Blast Drying Box
Drying Oven BODR 100 series mode Timer 0-9999min(with timing wait function) Sensor pt100 Inner Chamber 550*450*5 350*350*350 450*350*450 600*500*750 size(W*L*H) (mm) Exterior size 852*572*7 652*472*587 752*472*687 902*622*986 (W*L*H)(mm) Packing size 955*715*9 1005*765*11 755*615*735 855*615*835 Specifica (W*L*H)(mm) tion Volume 136L 225L... -
Page 6: Instructions Of Thermostatic Drying Box
Drying Oven BODR 100 series Instructions of Thermostatic Drying Oven Open the door; put the item to be heated on the shelf; close the door; · Plug in the corresponding charge and ensure all the grounding terminals of the power outlet are grounded;... - Page 7 Drying Oven BODR 100 series Indicator definition 1) “RUN/AT”indicator: This indicator is bright when the controller is running, when the run time is over, this indicator is not bright. When the controller enters the auto-tuning of PID, this indicator is flashing.
- Page 8 Drying Oven BODR 100 series 3) When temperature alarm, the buzzer will sound," ALM" lights. If a change in temperature setting and over-temperature alarm," ALM" lights up, but no songs buzzer. 4) When the buzzer sounds, it can be muted by pressing any button.
- Page 9 Drying Oven BODR 100 series Parameter list-1: Param (Setting range) eter Instruction of the Parameter’s Name factory set indicat function value when Lc=3 ,then we can see and modify Password parameters When temperature is beyond “SP+AL ”, Alarming (0～100℃) the Alarm indicator turns on. The buzzer setting sounds and the heater output turns off.
- Page 10 Drying Oven BODR 100 series Parameter list-2: Paramet Instruction of the (Setting range) Name indicato Parameter’s function factory set value when Lc=9,then we can Password see and modify parameters Turn off the heat when“PV≥SP+Co”，Turn (0.0～50.0℃) 5.0 output deviation off the heating output Constant 0：minutes time；1：...
-
Page 11: Troubleshooting
Drying Oven BODR 100 series Troubleshooting Problems Reason Solution No power Plug is not plugged in or Plug well or replace the line breaks plug Fuse breaks Replace the fuse Temperature is set too Reset the temperature Temperature in the... -
Page 12: Storage And Delivery
Drying Oven BODR 100 series Storage and Delivery Please store the equipment in the dry and cool environment around -20~+40℃; Avoid collision and intensive shake and rain while deliver. Installation and Maintenance ·Ground (table) should be flat; ·No flammable, explosive and corrosive things or gas around;... - Page 13 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com...
