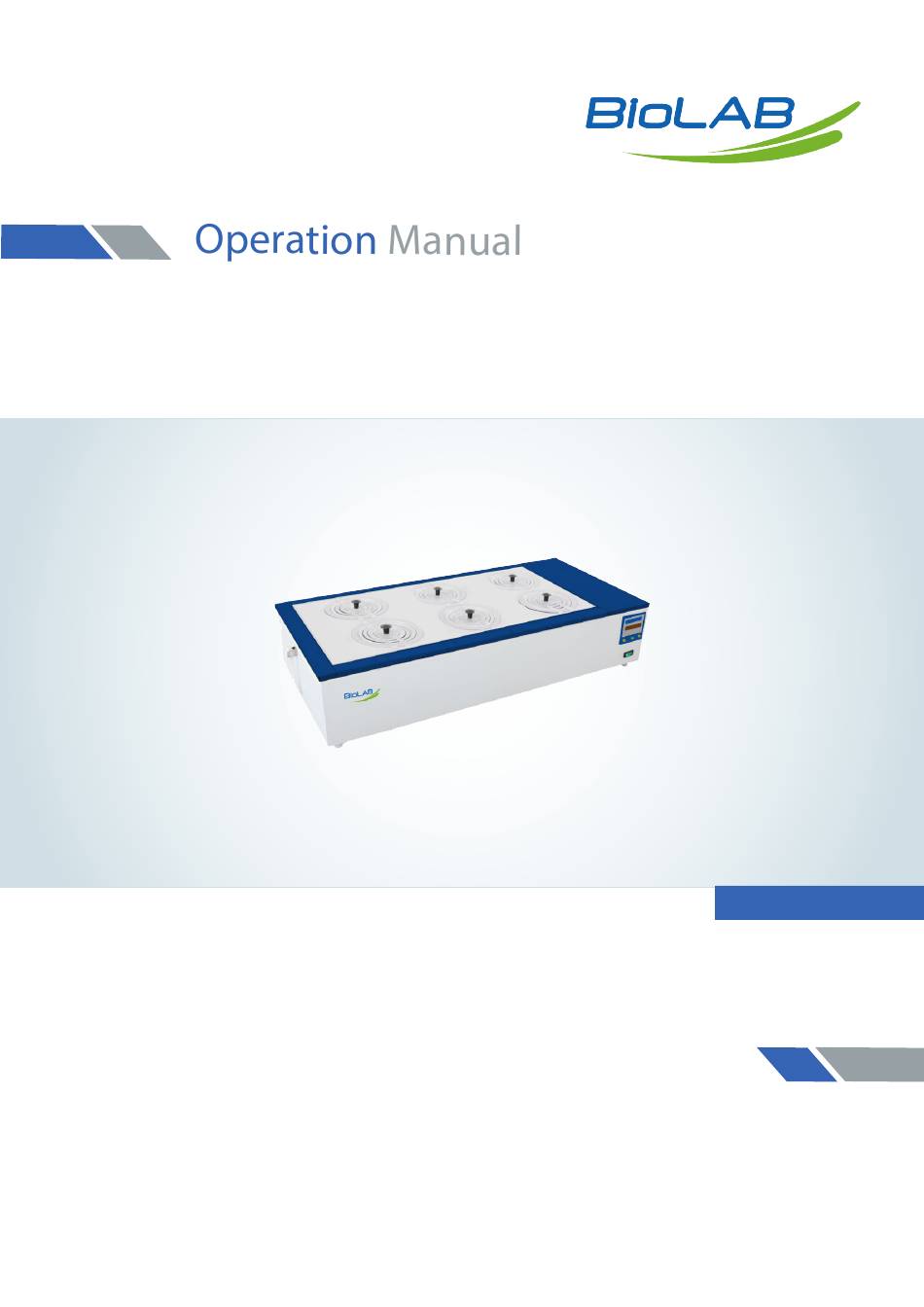

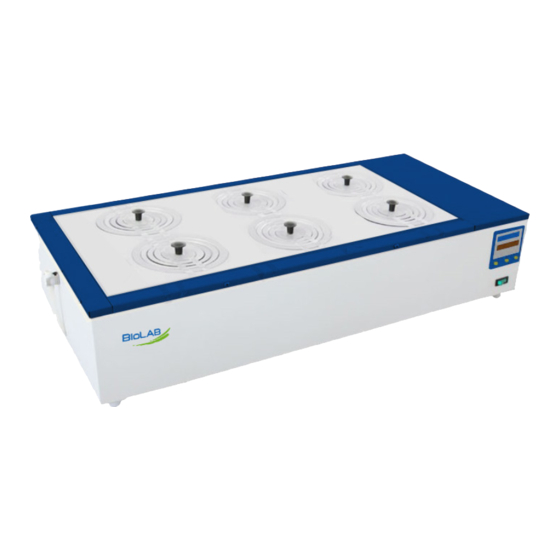

- Page 1 BBWA-100 Water Bath Thank you very much for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Water Bath BBWA Series 100 Index 1. Summary..............................03 2. Structure features...........................03 3. Main technical parameters.........................04 4. Working Conditions..........................04 5. Attentions..............................04 6. Temperature Controller Operation....................05 7. Wiring.................................07 8. Operation..............................08 9. Fault analysis............................09 www.biolabscientific.com... -
Page 3: Summary
Water Bath BBWA Series 100 Summary BBWA 100 Series Water Bath is applicable for distillation, concentration, drying and thermostatic heating of medical units, universities and colleges, scientific research units and laboratories of industrial and mining enterprises like chemical printing and dyeing enterprises and pharmaceutical enterprises. -
Page 4: Main Technical Parameters
Water Bath BBWA Series 100 Main technical parameters Model BBWA-101 BBWA-102 BBWA-103 BBWA-104 BBWA-105 BBWA-106 BBWA-107 voltage 220-240V/50-60Hz Temp. Range Room temperature +5°C~100°C Temp. ±0.5°C fluctuation 1 row 1 row 1 row 2 rows 2 rows 2 rows Specification 1 hole 2 holes 4 holes 6 holes... -
Page 5: Temperature Controller Operation
Water Bath BBWA Series 100 Temperature Controller Operation i. Meter panel instruction 1. Function key 2. Decrease key-Automatic tuning 3. Add key-Power-on duration 4. Master control output indicator light 5. Automatic tuning indicator light 6. Upper limit alarm indicator light 7. - Page 6 Water Bath BBWA Series 100 Parameter Setting Table 1: Setting Factory Prompt Name Description range value Master Full First menu control Random range setting Second Manual Setting Factory Prompt Name Description range value Alarm 999°C Timing when the Set value 0-9999 temperature reaches the set timing...
-
Page 7: Wiring
Water Bath BBWA Series 100 the measured upper limit. Note: when time function is used, pay attention to power failure. If power failure already exists, the previous timing becomes invalid. When the power supply is recovered, the timing is restarted from zero. Wiring www.biolabscientific.com... -
Page 8: Operation
Water Bath BBWA Series 100 Operation 1. The water bath shall be placed on a stable platform. 2. Add water to 50mm above the clapboard before use. 3. Connect to a power supply consistent with the requirement of this instrument and reliably ground the grounding terminals of the socket of power supply used. -
Page 9: Fault Analysis
Water Bath BBWA Series 100 Fault analysis Failure Cause Handling method 1. Replace the plug or socket 1. Bad contact between plug tube. and socket No power supply 2. Replace the fuse with same 2. The fuse is burnt. specification. 1. - Page 10 BIOLAB SCIENTIFIC LIMITED 91 Trafford Crescent, Markham, Ontario, L3R 7J3, Canada +1 707 533 1445 info@biolabscientific.com www.biolabscientific.com...
