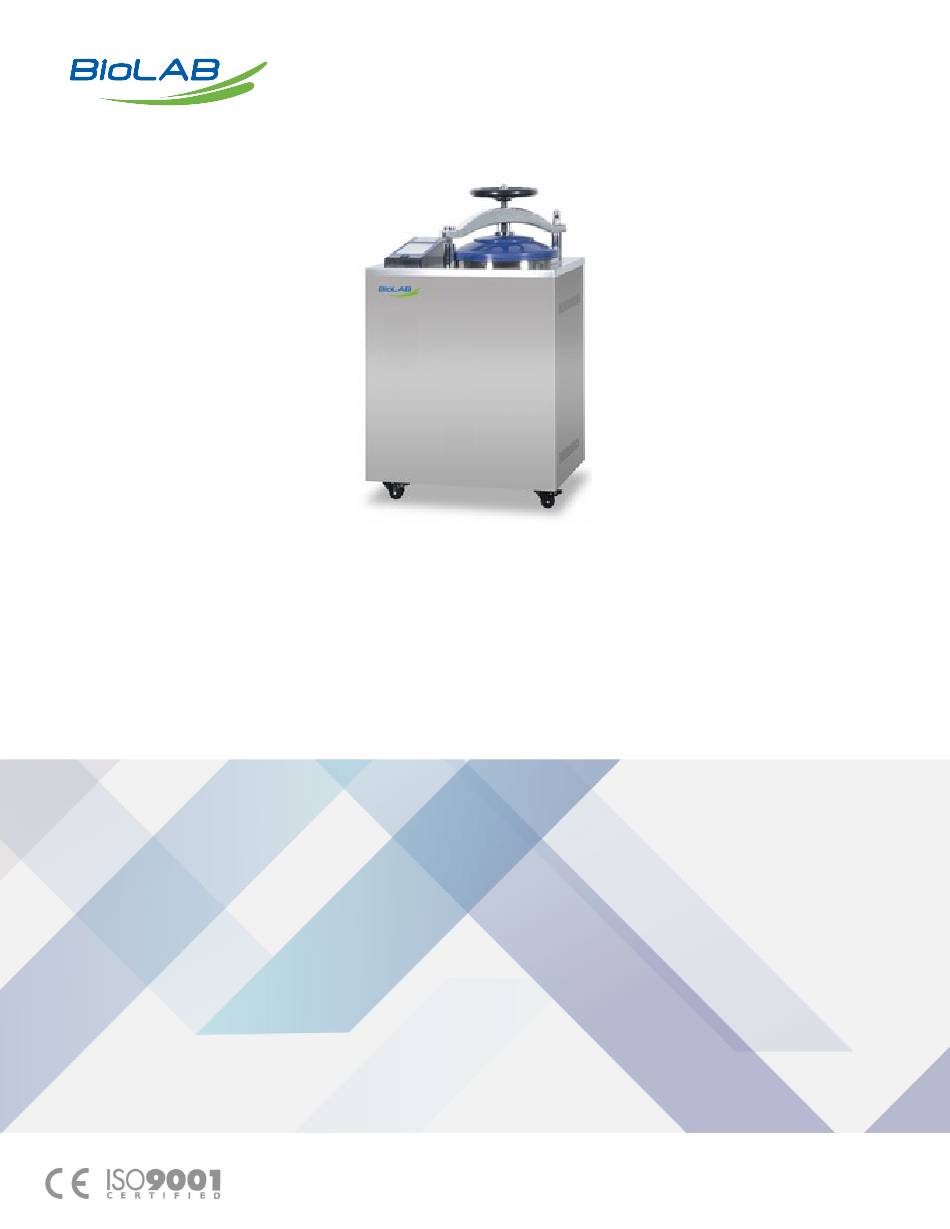

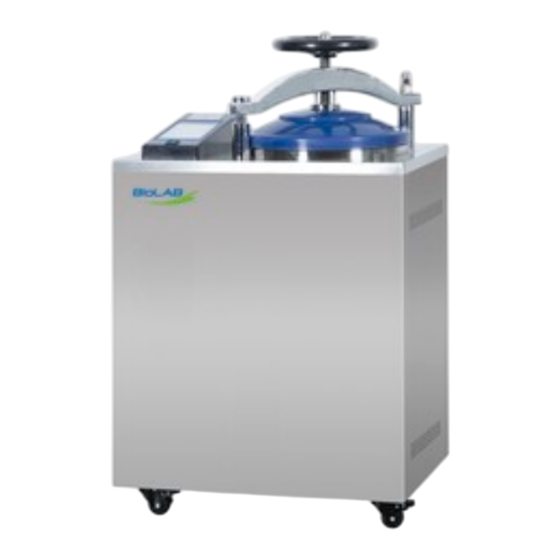

- Page 1 OPERATING MANUAL VERTICAL AUTOCLAVE BAVT-2901 BAVT-2902 BAVT-2903 BAVT-2904 www.biolabscientific.com...
- Page 2 INDEX 1. INTRODUCTION 2. Structural characteristics 3. Technical parameters 4. Installation requirements 5. Methodology of use 6. Attention And Maintenance 7. Common fault codes 8. Appendix VI...
- Page 3 Warning: To ensure the safe and correct use of the equipment, please read this instruction carefully before use and follow the instructions. Failure to use the method specified by the manufacturer may damage the protection provided by the equipment. 0.1 Introduction Welcome to use the vertical steam sterilizer (hereinafter referred to as sterilizer or machine or equipment).
- Page 4 connection of the grounding protection section. Otherwise, the protection function of the equipment will be invalid and electric shock will occur. (13) Be careful and keep away from the ironing area of the equipment to avoid scalding. (14) When the equipment fails, the total power supply of the equipment shall be disconnected immediately and then connected after troubleshooting.
- Page 5 level or water shortage to remind users to replenish water in time. 3. Technical parameters Max.sterilization Volum Max.working Sterilization Working Power pressure Time temperature 3.0K 3.5K 0.22 MPa 134℃ 4~120 min 4.5K 4.5K 100L 1. Power supply: AC220V/50H z or AC110V/60Hz 2.
- Page 6 into the sterilizer barrel. 5. Methodology of use The pressure vessel random documents shall be submitted to the local supervision and inspection agency for registration and record before the sterilizer is used. The operator of the sterilizer must be professionally trained, familiar with the operating essentials of the pressure vessel and operate strictly in accordance with the instructions.
- Page 7 ----------------------This icon is displayed when the door is closed 2. Select program and Parameter settings Touch the numeric keypad that needs to be changed, touch the “OK ”to save . Note: The user can change the sterilization temperature and time and drying time by entering the technologist interface.
- Page 8 You can exit the procedure midway after you confirm it This equipment is automatic water inlet type, start the evaporator to start water (ensure reliable water connection). After sterilization, the printer will print automatically. If sterilization process parameters need to be saved, insert the USB flash drive before the end of the procedure.
- Page 9 Note: Altitude offset(±90°C) Inner temperature offset (±10°C) Inner pressure offset (±30 Kpa)(iii) Preparation of instruments A、 Stacking (1) Turn the hand wheel several times counterclockwise (note that the hand is clamped and cause injury) until it is turned to the top so that the sterilizer cover is fully lifted and the crossbeam is pushed to the right to remove the sterilizer cover.
- Page 10 H、Drainage This product is water circulation and with water quality detection function, after sterilization without manual drainage. After the water quality reaches the alarm value, it is necessary to replace the water source and first close the machine power supply, open the left door, open the internal evaporator drain valve and the outer water storage tank drain valve to drain the water.
- Page 11 Program operation flow: Start -- pulsating vacuum -- heating -- sterilization -- exhaust -- pulsating vacuum drying -- end www.biolabscientific.com...
- Page 12 6. Attention And Maintenance Note : 1.Please ensure the EMC environment before use, so that the equipment works properly. 2.Recommend that users evaluate EMC before the device is used to ensure that the instrument works properly. 3.Prohibit the use of this instrument next to a strong radiation source, otherwise it may interfere with the normal operation of the instrument.
- Page 13 12.When troubleshooting requires replacement of components, there must be professionally trained qualified personnel or factory personnel. The power circuit breaker is disconnected, the remaining gas in the vessel is exhausted, the pressure gauge pointer can be returned to zero, and the safety valve is submitted for inspection at least once a year.Put up and down the safety valve several times a week to prevent the spool from scaling and leaking.
- Page 14 (If necessary, can provide circuit diagram and repair necessary information, electrical line maintenance if www.biolabscientific.com...
- Page 15 there are difficult problems, can contact our company.)Piping diagram www.biolabscientific.com...
- Page 16 7. Common fault codes The sterilization outdoor wall temperature Check the heating film Check the sensor wiring sensor failure(Short circuit: 0 is displayed. Open Replace the outer wall sensor circuit: 250.0 is displayed) The sterilization of the chamber temperature Check the PT100 Replace the inner chamber sensor failure(Short circuit: 0 is displayed.
- Page 17 NO Name Quantity Remarks Vertical steam sterilizer 1 Operating manual Basket or bucket 2 or 1 Feed water pipe 2 m length Drainage pipe 2 m length Filter of feed water pipe 1 EMC requirements: 8. Appendix VI EMC requirements: Table 201 Group B 1 Guide and manufacturer's statement ——...
- Page 18 Electric Fast ±2 kV Power cord ±2 kV Power Power supply should be of typical Instantaneous Pulse ±1 kV to cord commercial or hospital quality Group GB/T17626.4 input/output lines Not applicable ±0.5 kV line ±0.5 kV line Surge surge alignment alignment Power supply should be of typical GB/T17626.5...
- Page 19 Portable and mobile RF communication equipment shall not be closer to any part of the desktop sterilizer (including cables) than the recommended isolation distance, which shall be calculated using a formula corresponding to the frequency of the transmitter. recommended isolation distance d =1.2 d =1.2 MHz 80MHz ~80 0 RF conduction...
