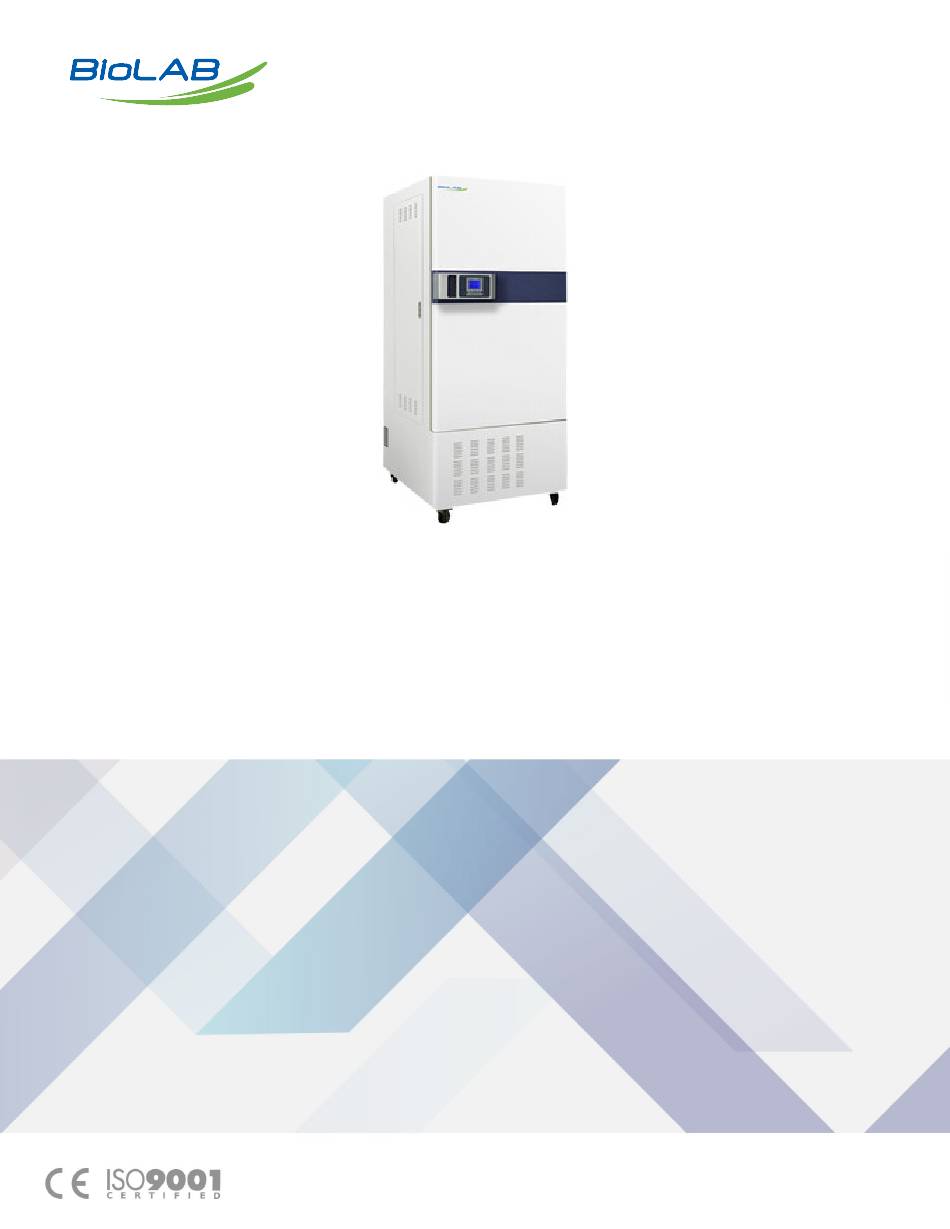

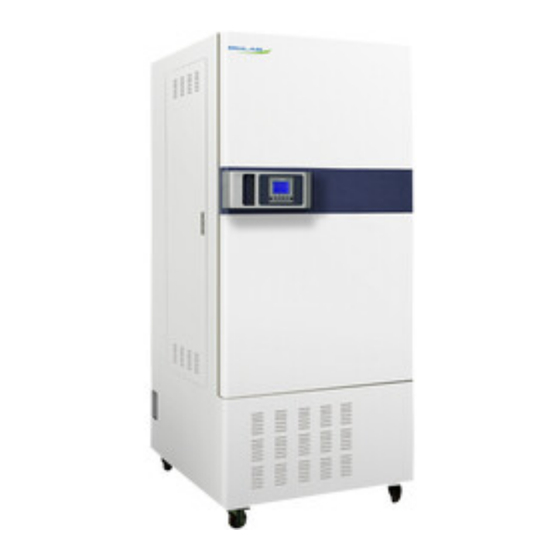

- Page 1 OPERATION MANUAL CLIMATIC CHAMBER BCCL-201 BCCL-202 BCCL-203 www.biolabscientific.com...
- Page 2 INDEX 1. Safety and warning signs , label explication 2.Safety operation and Preventive action 3.Safety operation and Preventive measure 4.Safety operation and Preventive measure 4.1 Instruction(application ,performance, technical parameters ) 5.Operation 5.1 Display Operation and usage 6. Alarm and safety functions 7.Optional using 8.
-
Page 3: Warning Symbol
Notices - In order to ensure safety to use this equipment, please read this manual carefully - Make sure put this manual in convenient place for later use - Our company doesn’t provide a safe guarantee if use not according to the instruction manual - This manual only for user and authorized technician, should be kept properly - No notice if any changes because of product improvement - No right to copy this manual in without our company authorization. - Page 4 2.Safety operation and Preventive action warning www.biolabscientific.com...
- Page 5 3.Safety operation and Preventive measure warning www.biolabscientific.com...
-
Page 6: Technical Parameters
4.Safety operation and Preventive measure Attention 4.1 Instruction(application ,performance, technical parameters ) Application LC series Lighting Incubator is a thermostatic equipment with heating, cooling and lighting function, highly precise and advanced. Widely used in medical and health service, biological pharmaceutical industry, agriculture, forestry, environmental science, animal husbandry, aquaculture etc. - Page 7 5. Lighting ：15000IX; 6. Power voltage ： 220V/50Hz; 7. Input power：1350W(250L) ; 1350W(300L) 1550W(400L); 8. Working ambient ：ambient temp 10~30C relative humidity70% below ; 9. refrigeration：R134; 10. Equipment class：class I Notice ：this equipment has low temperature auto-defrost function, it is normal if there is fluctuation when low temperature auto-defrost.
-
Page 8: Control Panel
1.storage water tank 2. wheel 3.compressor part 4.outlet pipe 5.mesh board 6. evaporator 7.temp. sensor 8.axial fan 9.glass door 10. outer door 11.outer door lamp 12 internal door key 13 door handle 14 controller 15. side door lamp 16 side door key 17. control panel 18.power supply switch 19 cool switch Structure Control panel Symbol definition... -
Page 9: Equipment Installation
T5: daytime: its lightening means the machine is in daytime mode. T6: night: its lightening means the machine is in night mode. T7: timer: its twinkling means the timer working, meanwhile, the (2) area displays setting time(count down). T8: lack of water: its lightening means lack of water, its twinkling means low-level water alarm. T9: door open: its lightening means the door is open T10: alarm: its lightening means temperature or humidity alarm;... -
Page 10: Installation
Warning Do not place this equipment outdoors. If it exposed in the rain, it may cause creepage and electric shock. Do not place equipment in humid environment or a place with dripping water. Otherwise it may cause creepage or electric shock Avoid place with flammable or corrosive gas. -
Page 11: Operation
5.Operation 5.1 Display Operation and usage 1. After power on, (3) area displays “PS”, (5) area displays “V01”, the buzzer beeps, and then ,after 2 seconds, the controller will enter into normal mode. 2. Setting values: after clicking on set button in normal mode, symbols “TIME”and“SV” twinkle, one can modify the setting value (digit position twinkling), by shift, decrease, increase buttons, and one can shift to next group value by another clicking on set button. - Page 12 when“Lc=9”,this parameter group can be password inquired and adjusted. 0：constant value mode； (0～2) Running mode 1：day/night mode, 99 cycles； 2：program mode, 1~30 se gments，0~99 cycles 0：no operation； Power down (0～2) 1：begin with the first segment； protection 2: restart from the power down time Modification value=【display value（s）-real (-999～999) Timer adjust...
- Page 13 Integration time Adjustment of integration function (1～2000s) 500 Differential time Adjustment of differential function. (0～2000s) 200 Heat period Heating control period (1～60s) 5 (-2.0～0℃) Low temperature cutoff Heating cutoff point. -0.5 Heat power Heating max power percentage (0～100%) 100 parameter -3 （range）...
- Page 14 6. Alarm and safety functions Temperature sensor failure alarm: screen displays: compressor stops working and heating stops. The alarm will stop beeping after 10 times beeps Temperature limit alarm：Measured temperature exceeds the set temperature of 4 degrees, heating stops, The alarm will stop beeping after 10 times beeps Routine using and maintenance please keep upright when moving this equipment Do not frequently modify the set values during process, to avoid overload because compressor...
- Page 15 When equipment fails to work, please ask professional technician or the factory sales department for help. Please don’t do anything by yourself. 7.Optional using 232/RS-485 instructions for use of the converter - In order to proceed with data communication between the different standard serial interface to the computer, an external device or smart instrument, must provide conversion of standard serial interface.
-
Page 16: Troubleshooting
8. Trouble shooting 1. Check if RS-232 port inside connection is correct. 2. Check if RS-485 port inside connection is correct. (3)Check if port is connected. - Data is missing or incorrect Please check if data communication equipment rate and format is accordance. 1. - Page 17 No. Name Quantity Note Finish product instruction manual 1 4(250L) shelf 4(300L) 4(400L) storage water tank 1 water tank Inlet pipe outlet pipe Biolab Scientific Ltd. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8, Canada Email: info@biolabscientific.com | Website: www.biolabscientific.com...
