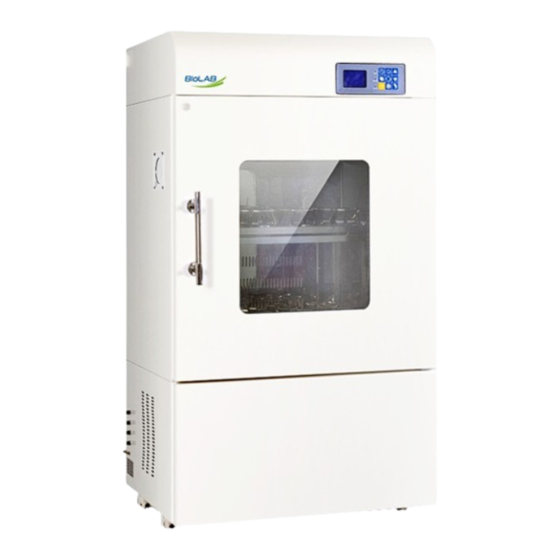

- Page 1 Operation Manual BSFLS-101 Floor Standing Shaking Incubator Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Floor Standing Shaking Incubator BSFLS-101 Index 1. Product Drawing..........................3 2. Structure and Working Principle....................4 3. Technical Parameter........................4 4. Panel Instruction..........................5 5. Operation............................5 6. Temperature and its parameter setting.................6 7. Trouble Shooting..........................16 8. The Wiring Diagram........................17 9. After Sales Services........................18 www.biolabscientific.com... -
Page 3: Product Drawing
Floor Standing Shaking Incubator BSFLS-101 Product Drawing Sectional view Front view Back view 1. Oscillator 2. Driving wheel 3. Printer 4. USB Port 5. Controller 6. Power Switch 7. Observation window 8. Door Handle 9. Universal caster 10. Fan 11. Heating Tube 12. -
Page 4: Structure And Working Principle
Floor Standing Shaking Incubator BSFLS-101 Structure and Working Principle The shaking incubator is composed of a microcomputer temperature control system with LCD Display, Stainless steel inner material, The Body is Composed of environmental protection foam , transparent glass door, stainless steel oscillation car and rack, stainless steel... -
Page 5: Panel Instruction
Floor Standing Shaking Incubator BSFLS-101 Panel Instruction Operation 1. Controller is powered on, the temperature display window showing "HY - 2", speed display window showing"8888", the time display window showing "8888", all identifiers is lighting, the machine into the normal display status after 4 seconds. -
Page 6: Temperature And Its Parameter Setting
Floor Standing Shaking Incubator BSFLS-101 intermittent work can choose manual or automatic start-stop compressor (see the NDC, CP, Htd, Crc, Cnp parameters: the internal parameter table – 2). 6. Memory function when power off By modifying off electrical parameter values (see the "rES" parameters: the internal parameter table - 2) can choose whether to have memory function when power supply drop. - Page 7 Floor Standing Shaking Incubator BSFLS-101 Intrinsic parameter-1 Parameter Parameter factory default Parameter function code name (range) Password “Lc=3”view and modify parameters Over- when “test temp. > set temp. +AL ”, alarm (0~20.0 ) ℃ temperature light is on, alarm beeps, stop running,...
- Page 8 Floor Standing Shaking Incubator BSFLS-101 Control cycle Heating Control cycle (1~60s) 5 Proportional Time scale functional governing (0.1~50.0) 15.0 band Integration Integration functional governing (1~2000s) 380 time Differential Differential functional governing (0~2000s) 100 time Correction (low temperature) generated Zero when the measuring error of the sensor.
- Page 9 Floor Standing Shaking Incubator BSFLS-101 When "NDC = 2" compressor If the temperature set point ≥ ambient works (-50.0~50.0 ) ℃ temperature + Htd", compressor work in automatically continuous way, otherwise work in balanced switching way. points When the compressor work in continuous...
- Page 10 Floor Standing Shaking Incubator BSFLS-101 Intrinsic parameter-3 Parameter Parameter factory default Parameter function code name (range) "Lc = 18" to view the environment password temperature. Environment the environment temperature of The temperature controller Intrinsic parameter-4 Parameter Parameter factory default Parameter function...
- Page 11 Floor Standing Shaking Incubator BSFLS-101 When the compressor work in balanced way, Pressure If "temperature measured values ≥ release temperature value + dpH, compressor work, (0.0~10.0 ) ℃ (cooling) electromagnetic valve closed; solenoid valve Note: when the compressor work in balanced start valve way, if the "dpL = 0"...
- Page 12 Floor Standing Shaking Incubator BSFLS-101 When the "8.0 < temperature set ting ℃ When frost full value≤16.0 ℃ (0~Ft2) power heating If the solenoid valve frost, ot2 is invalid; time 2 If the electric heat pipe frost, ot2 for frost full...
- Page 13 Floor Standing Shaking Incubator BSFLS-101 Intrinsic parameter-6 Factory Parameter Parameter Parameter function default(range code name ） password “Lc=9”To view and modify parameter value The gear ratio Big Wheel diameter/ small wheel diameter. (1.0~10.0) 1.0 Motor pole Brushless dc motor logarithmic...
- Page 14 Floor Standing Shaking Incubator BSFLS-101 Time setting 1. When the "Fr = 0" or "Fr = 1: motor in forward or only run only in reverse: Click on the "time" button and enter the total timing time setting, time display flashing, can through shift, increase, decrease the key changes to the desired setting point;...
- Page 15 Floor Standing Shaking Incubator BSFLS-101 3: timing starts after the temperature reach the set value, to the running time, at the same time to stop the speed and temperature Timing at the beginning of the "m" or "h" start flashing, End of the time, the time display shows "End"...
-
Page 16: Trouble Shooting
Floor Standing Shaking Incubator BSFLS-101 Trouble Shooting Trouble shooting check/solution Temperature display no values Temperature setting have Abnormal temperature sensor, check the temperature values sensor. whether the temperature set point temperature below Temperature rise less than the shows; set value Check whether the electric heating tube is damaged: Check the control board and related wiring. -
Page 17: The Wiring Diagram
Floor Standing Shaking Incubator BSFLS-101 The Wiring Diagram www.biolabscientific.com... -
Page 18: After Sales Services
Floor Standing Shaking Incubator BSFLS-101 After Sales Services (1) one year warranty, life-long service. Warranty period in the date of sales paper, customer. (2) customer modification or repairing the product itself without permission, does not belong to free warranty scope. - Page 19 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com...
