MULTISPAN MS-5716 User Manual page 5

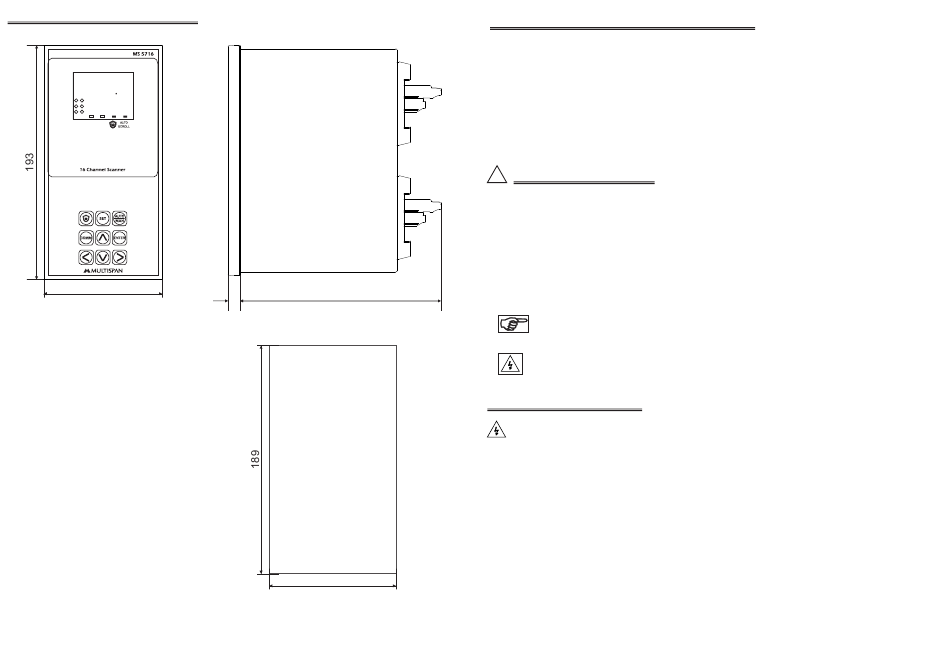

Mechanical Dimensions
2 0 5 6
12Lo
97.50
FRONT VIEW
10 169
RIGHT SIDE VIEW
92
PANEL CUTOUT
Mechanical Installation Guideline
1) Prepare the panel cutout with proper dimensions as shown above.
2) Fit the unit into the panel with the help of clamp given.
3) The equipment in its installed state must not come in close proximity to any heating
source, caustic vapors, oil steam, or other unwanted process byproducts.
4) Use the specified size of crimp terminal (M3.5 screws) to wire the terminal block.
Tightening the screws on the terminal block using the tightening torque of the range of
1.2 N.m.
5) Do not connect anything to unused terminals.
Safety Precaution
!
Please read the "Safety Warnings" in the instruction manual supplied with
the instrument thoroughly and completely for correct use. Failure to follow the
safety rules can cause fire, trouble, electrical shock, etc. Therefore, make sure
to operate the instrument on a correct power supply and voltage rating marked
on each instrument.
If all the equipment is not handled in a manner specified by the manufacturer,
it might impair the protection provided by the equipment.
Read complete instructions prior to installation
and operation of the unit.
WARNING : Risk of electric shock.
Warning Guidelines
WARNING : Risk of electric shock.
1) To prevent the risk of electric shock, power supply to the equipment must be kept
OFF while doing the wiring arrangement. Do not touch the terminals while power is
being supplied.
2) To reduce electro magnetic interference, use wire with adequate rating and twists
of the same of equal size shall be made with shortest connection.
3) Cable used for connection to power source, must have a cross section of 1mm or
greater. These wires should have insulations capacity made of at least 1.5kV.
4) A better anti-noise effect can be expected by using standard power supply cable for
the instrument.
