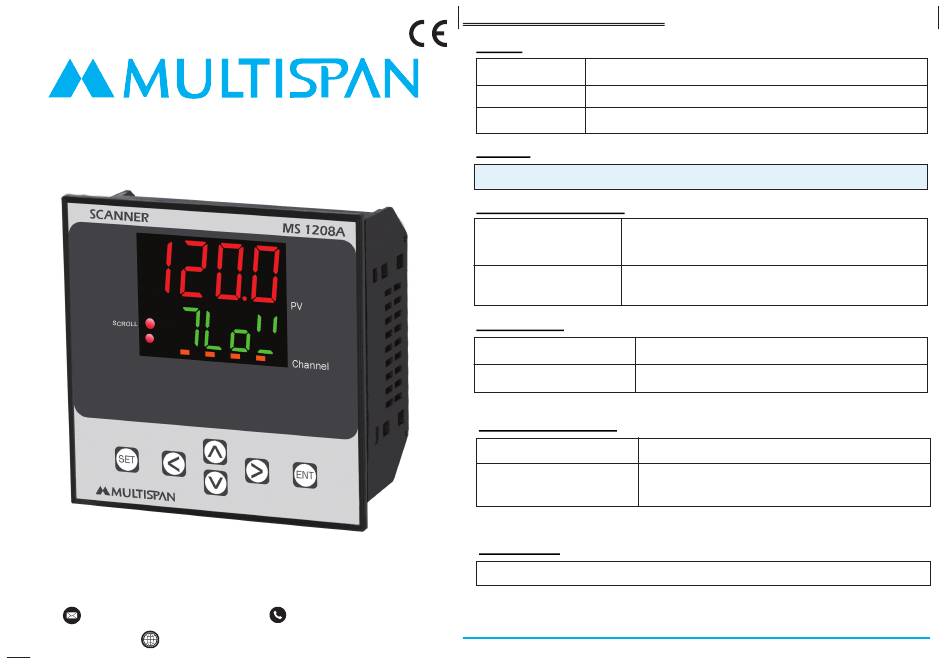

User Manual

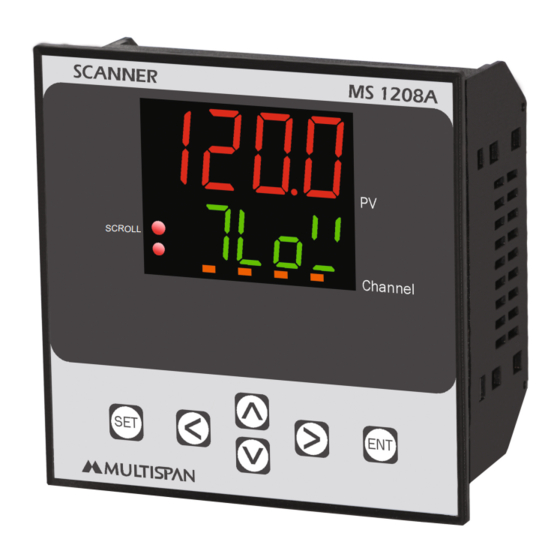

MS-1208A
Multispan Control Instruments Pvt Ltd
72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India.
export@multispanindia.com
www.multispanindia.com
Technical Specification
+91-9978991483
INPUT:
Input
0 - 10V DC, 4 - 20mA DC, 0 - 20mA DC
Indication
±1% of FSD ± 1°C
Accuracy
(FSD:- full scale deflection)
Range :
-999 to 9999
DISPLAY, KEY & LED:
Display
UPPER : 4 Digit 7 Seg 0.70", RED LED
LOWER : 4 Digit 7 Seg 0.50", GREEN LED
Key
SET, ENT, INC, DEC, LEFT & RIGHT
Shift key,
DIMENSION:
96 (H) x 96(W) x 52(D) mm
Size
92 (H) x 92 (W) mm
Panel Cutout
AUXILIARY SUPPLY:
Supply voltage
100 To 270V AC,50/60 Hz,
Power consumption
Approx 7VA @ 230V AC MAX,
(VA RATING)
ACCURACY:
Class 1.0 (Standard)
Page 2
Advertisement
Related Manuals for MULTISPAN MS-1208A
Summary of Contents for MULTISPAN MS-1208A
- Page 1 Supply voltage 100 To 270V AC,50/60 Hz, Power consumption Approx 7VA @ 230V AC MAX, (VA RATING) ACCURACY: Multispan Control Instruments Pvt Ltd Class 1.0 (Standard) 72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India. export@multispanindia.com +91-9978991483 www.multispanindia.com Page 2...
-
Page 2: Key Operation
Key Operation ENVIRONMENT CONDITION: Operating Temp. 0°C to 55°C * Press key to enter in set value menu. UP to 95% RH * Press & key to change the parameter setting. Relative Humidity (non-condensing) * Press key to enter in parameter menu Protection Level IP-65 (Front side) As per IS/IEC (Input Selection, skip-unkip selection) -
Page 3: Input Selection
Offset & Correction Factor Input Selection Change by & Press & Press Offset Ofst Press Scan Time (Second). Press OF-1 Offset for Channel - 1 Press Press (Repeat the same procedure OF-8 for all 8 channels.) Press (Repeat the same procedure Press CRFC Display Shows Correction factor... - Page 4 Press & Mechanical Dimemsions & Installation Decimalpoint 0000 Press 0000 LRNG Low range for Channel - 1 Press 0000 (Repeat the same procedure LRNG for all 8 channels.) Press 1000 High range MODEL HRNG 96mm 96mm 92mm 92mm 52mm 56mm DIMENSIONS Press 1000...
- Page 5 Note:- WARNING : Risk of electric shock. Safety Precautions All safety related codifications, symbols and instructions that appear in this operating manual or on the equipment must be strictly followed to ensure the safety of the operating personnel as well as the instrument. If all the equipment is not handled in a manner specified by the manufacturer, it might impair the protection provided by the equipment .
