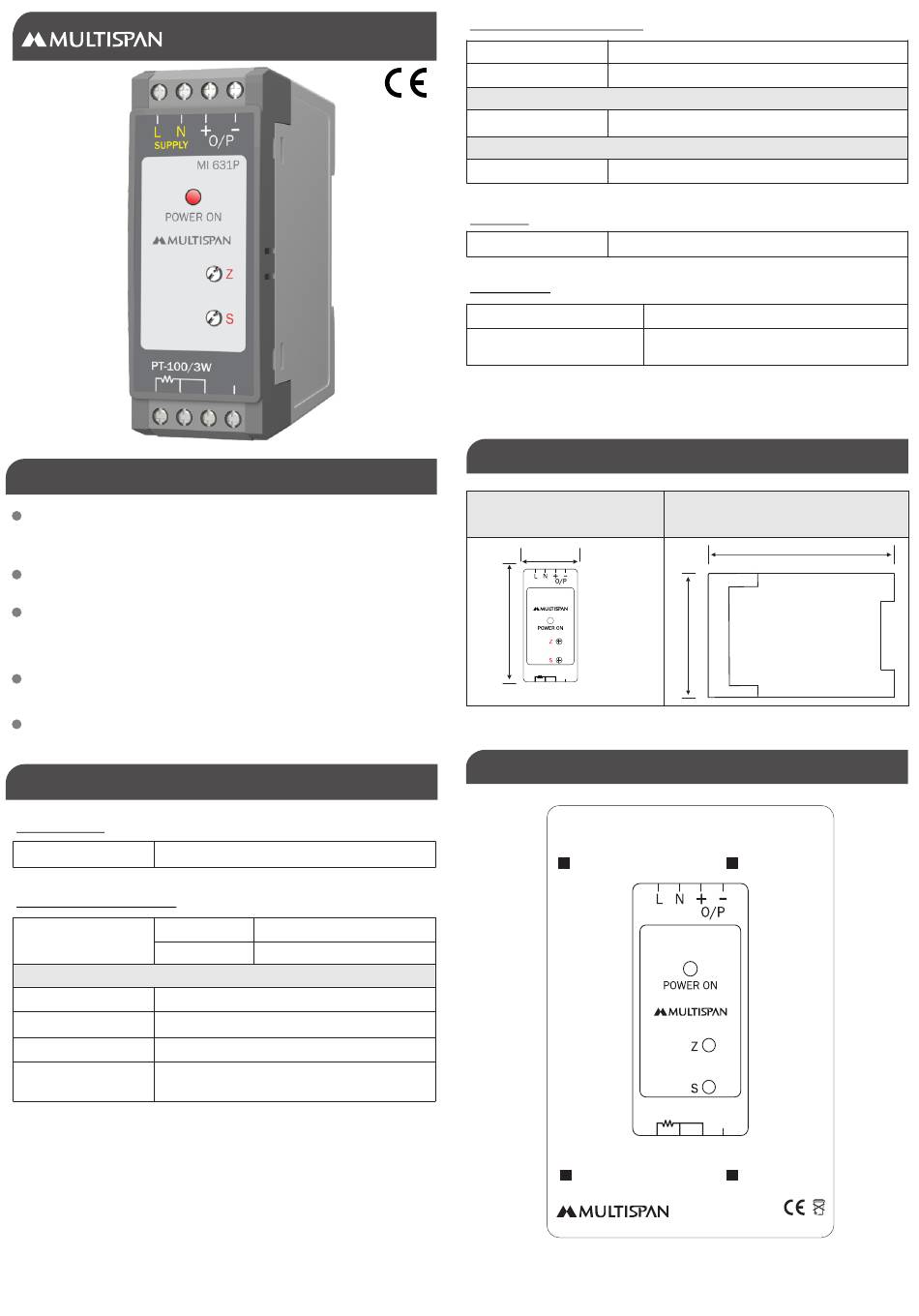

FEATURES
1.5KV isolation between supply, input &
output
Linearized O/P
Zero & span correction facility through
trim port
Fast Response time <150ms
Din Rail Mounting
TECHNICAL SPECIFICATION
DIMENSION:
Size (HxWxD) mm
76 X 27 X 116
INPUT SPECIFICATION:
Input
Input Type
PT-100/3W
INPUT IMPEDANCE:
Current Input
<100
>100
Voltage Input
CMRR
>120dp (Typical)
Temperature
<100
Co-efficient

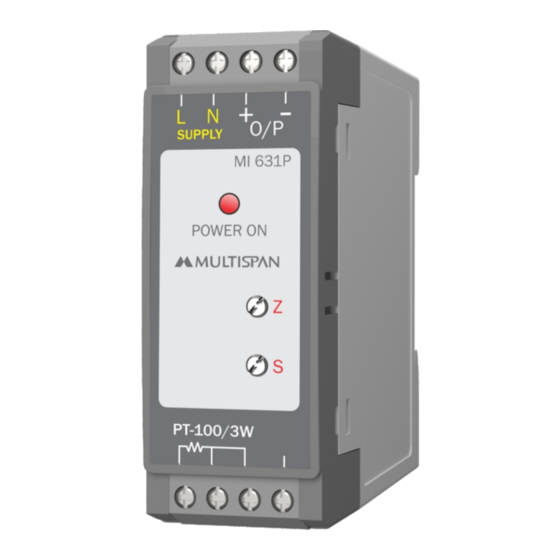

SIGNAL ISOLATOR
MI-631P
Range
0 TO 400°C
Ω
KΩ
PPM
OUTPUT SPECIFICATION:
0 to 10V DC
Output
Response Type
<150ms
OUTPUT IMPEDANCE:
Voltage Output
<0.4
LOAD RESISTANCE
V Output
Load Current <25mA
SUPPLY:
Auxiliary Voltage
100 to 270V AC
ISOLATION:
Isolation Type
Isolation between
supply, input & Output
MECHANICAL INSTALLATION
Front view (mm)
27
SUPPLY
MI 631P
76
PT-100/3W
TERMINAL CONNECTION
Supply
100 To 270V AC
Input
PT-100/3W
www.multispanindia.com
Ω
Ωload
@10V DC with 500
Optical - 3 way
At least 1.5KV AC for 1 min
Side view (mm)
116
76
Output
0 To 10V DC
SUPPLY
MI 631P
PT-100/3W
Range
0 To 400°C
Made in India
Page 1
