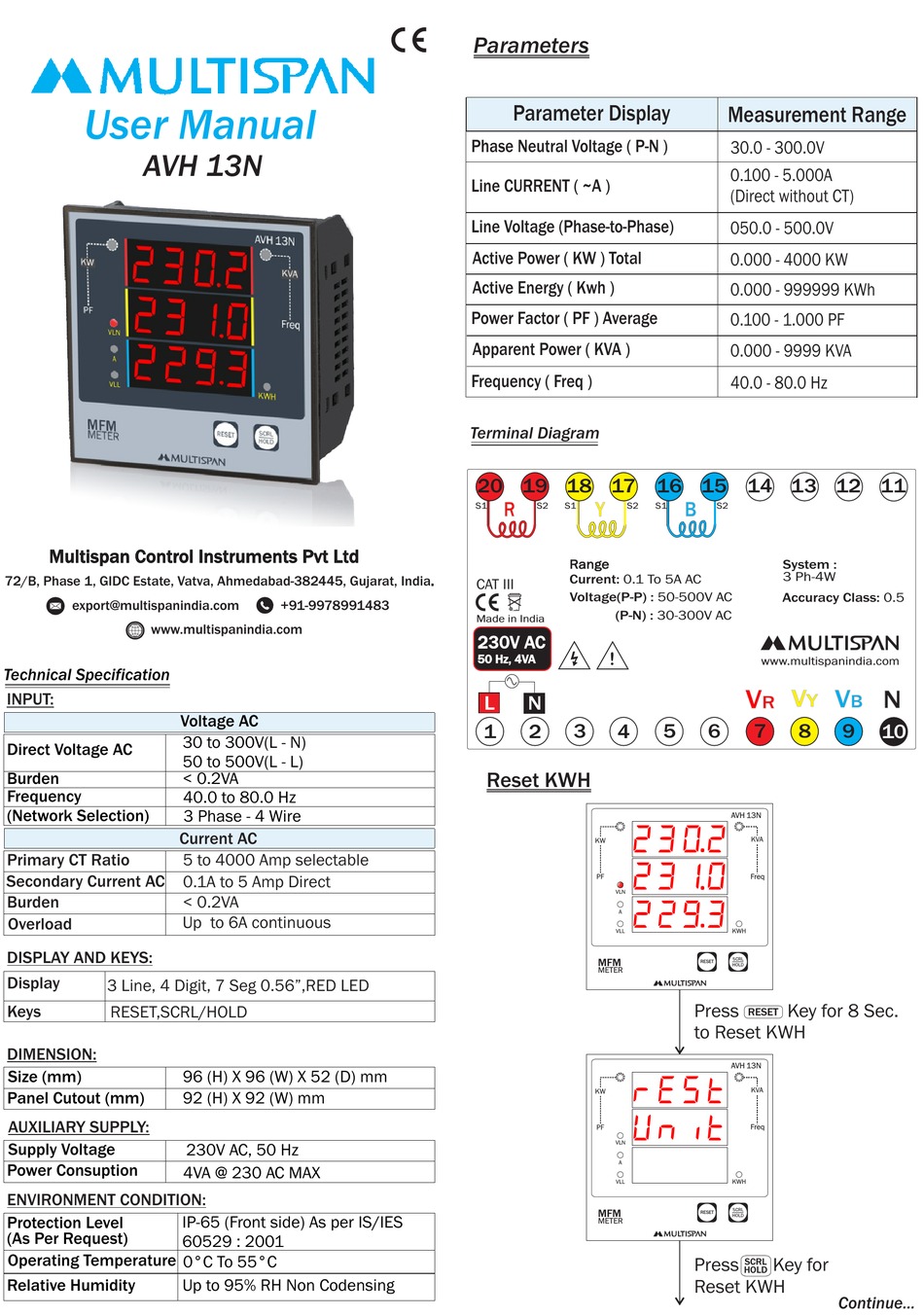

MULTISPAN AVH 13N User Manual

User Manual
AVH 13N
Multispan Control Instruments Pvt Ltd
72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India.
export@multispanindia.com
www.multispanindia.com
Technical Specification
INPUT:
Direct Voltage AC
Burden
Frequency
(Network Selection)
Primary CT Ratio
Secondary Current AC
Burden
Overload
DISPLAY AND KEYS:
Display
3 Line, 4 Digit, 7 Seg 0.56",RED LED
Keys RESET,SCRL/HOLD
DIMENSION:
Size (mm)
Panel Cutout (mm)
AUXILIARY SUPPLY:
Supply Voltage
Power Consuption
ENVIRONMENT CONDITION:
Protection Level
(As Per Request)
Operating Temperature 0°C To 55°C
Relative Humidity
+91-9978991483
Voltage AC
30 to 300V(L - N)
50 to 500V(L - L)
< 0.2VA
40.0 to 80.0 Hz
3 Phase - 4 Wire
Current AC
5 to 4000 Amp selectable
0.1A to 5 Amp Direct
< 0.2VA
Up to 6A continuous
96 (H) X 96 (W) X 52 (D) mm
92 (H) X 92 (W) mm
230V AC, 50 Hz
4VA @ 230 AC MAX
IP-65 (Front side) As per IS/IES
60529 : 2001
Up to 95% RH Non Codensing
Parameters
Parameter Display
Phase Neutral Voltage ( P-N )
Line CURRENT ( ~A )
Line Voltage (Phase-to-Phase)
Active Power ( KW ) Total
Active Energy ( Kwh )
Power Factor ( PF ) Average
Apparent Power ( KVA )
Frequency ( Freq )
Terminal Diagram
20 19 18 17
R Y
S1 S2 S1 S2
Range
Current: 0.1 To 5A AC
CAT III
Voltage(P-P) : 50-500V AC
(P-N) : 30-300V AC
Made in India
2 0V 3 AC
!
50 Hz, 4VA
N
L
3
1 2 4
Reset KWH
2 3 0 2
2 3 1 0
2 2 9 3
MFM
METER
R E S T
U N i T
MFM
METER
Measurement Range
30.0 - 300.0V
0.100 - 5.000A
(Direct without CT)
050.0 - 500.0V
0.000 - 4000 KW
0.000 - 999999 KWh
0.100 - 1.000 PF
0.000 - 9999 KVA
40.0 - 80.0 Hz
16 15 14 13
B
S1 S2
System :
3 Ph-4W
Accuracy Class: 0.5
www.multispanindia.com
V
V
Y
R
5 6 7 8

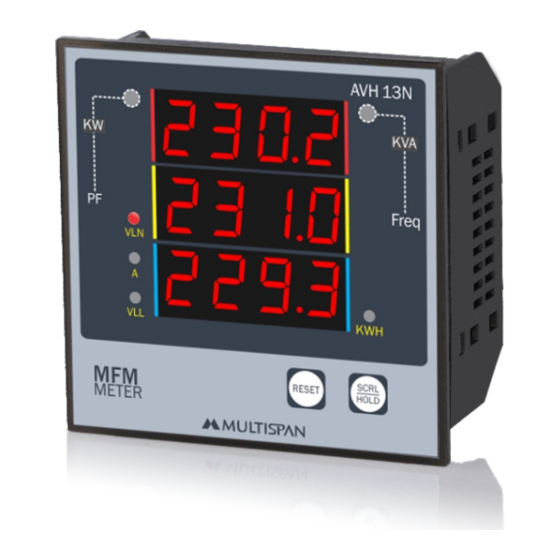

AVH 13N
.
.
Freq
.
RESET
Press Key for 8 Sec.
RESET
to Reset KWH
AVH 13N
Freq
RESET
Press Key for
SCRL
HOLD
Reset KWH
12 11
V
N
B
9
10
Continue...
