User Manual
MS-5716
Multispan Control Instruments Pvt Ltd
72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India.
service@multispanindia.com
www.multispanindia.com
+91-9978991483

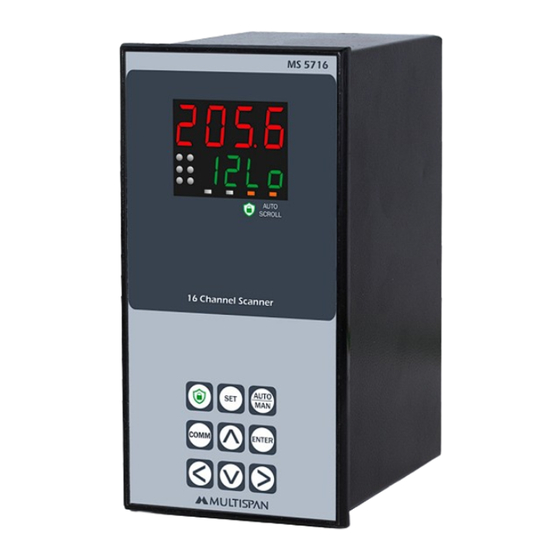

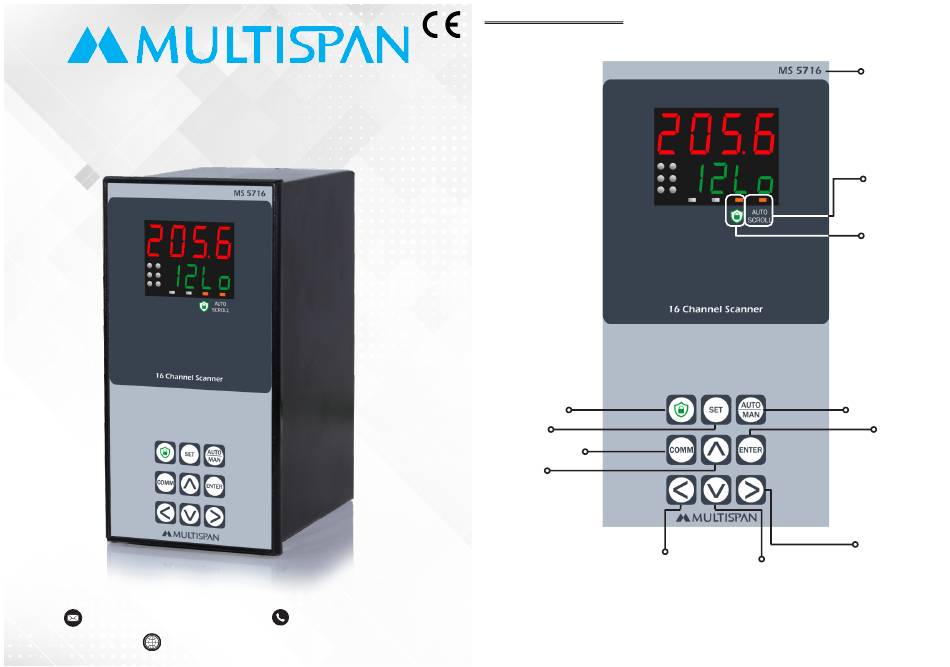

Product Inception
*
Parameter Lock Key
*
SET Key
*
Communication Key
*
UP Key
*
Left Shift Key
*
Model Number
*
Scroll / Hold
Channel
Indication
Parameter Lock
*
Indication
*
Auto / Manual Channel
Scrolling Key
*
Enter Key
*
Right Shift Key
*
Down Key

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS-5716 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MULTISPAN MS-5716

  • Page 1 Parameter Lock Key Auto / Manual Channel Scrolling Key SET Key Enter Key Communication Key UP Key Right Shift Key Left Shift Key Multispan Control Instruments Pvt Ltd Down Key 72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India. service@multispanindia.com +91-9978991483 www.multispanindia.com...
  • Page 2: Technical Specification

    Technical Specification 2) To add offset & correction factor, press keys together. INPUT: Set offset for each channel if required. Input Range Off set range will be ±25 for J, K, PT-100 temperature input. °C 0 To 600°C Off set range will be ±25.0 for PT.1 temperature input.
  • Page 3: Input Selection

    Parameters Note :- Values can be changed Note :- Values can be changed by pressing keys. Analog Range Selection by pressing keys. Input Selection Press key. Press key. Analog Scan Time (Second) Press Press 00.00 Decimal Point CH 1 Press key to Skip or Unskip Channel Press 00.00...
  • Page 4: Terminal Diagram

    Note :- Values can be changed Terminal Diagram by pressing keys. Offset and Correction factor Selection Press key to change offset OFST Offset PT-100 PT-100 PT-100 PT-100 3W 3W 3W 3W CH-1 CH-2 CH-3 CH-4 0-10V 0/4-20 0-10V 0/4-20 0-10V 0/4-20 0-10V 0/4-20...
  • Page 5 Mechanical Dimensions Mechanical Installation Guideline 1) Prepare the panel cutout with proper dimensions as shown above. 2) Fit the unit into the panel with the help of clamp given. 3) The equipment in its installed state must not come in close proximity to any heating 2 0 5 6 source, caustic vapors, oil steam, or other unwanted process byproducts.
  • Page 6: Maintenance

    Note : Installation Guidelines 1) Do not allow pieces of metal, wire clippings, or fine metallic fillings from installation to enter the product or else it may lead to a safety hazard that may in turn endanger life or cause electrical shock to the operator. 2) Circuit breaker or mains switch must be installed between power source and supply terminal to facilitate power ‘ON’...
