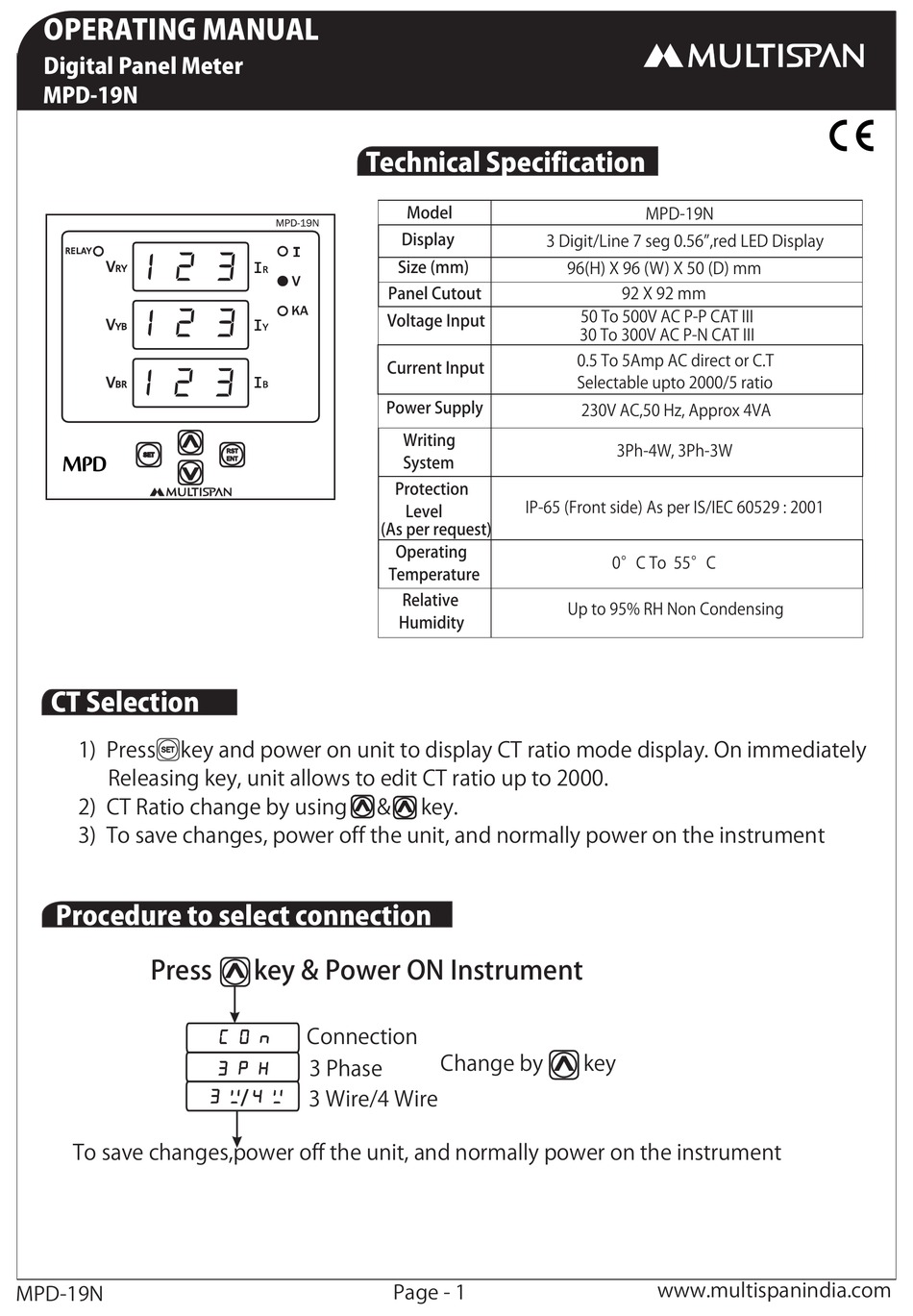

OPERATING MANUAL

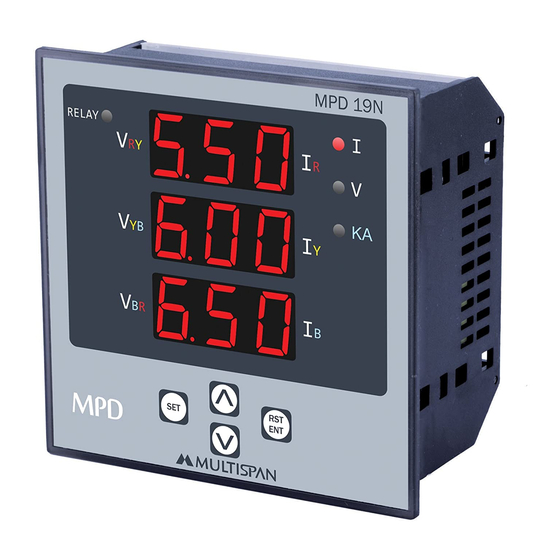

Digital Panel Meter
MPD-19N
SET
CT Selection
1) Press
key and power on unit to display CT ratio mode display. On immediately
SET
Releasing key, unit allows to edit CT ratio up to 2000.
2) CT Ratio change by using
3) To save changes, power off the unit, and normally power on the instrument
Procedure to select connection
Press
To save changes,power off the unit, and normally power on the instrument
MPD-19N
Technical Specification
KA
RST
ENT
(As per request)
&
key & Power ON Instrument
Connection
3 Phase
3 Wire/4 Wire
/
Model
Display
3 Digit/Line 7 seg 0.56 ,red LED Display
Size (mm)
Panel Cutout
Voltage Input
Current Input
Power Supply
Writing
System
Protection
IP-65 (Front side) As per IS/IEC 60529 : 2001
Level
Operating
Temperature
Relative
Humidity
key.
Change by
Page - 1
MPD-19N
96(H) X 96 (W) X 50 (D) mm
92 X 92 mm
50 To 500V AC P-P CAT III
30 To 300V AC P-N CAT III
0.5 To 5Amp AC direct or C.T
Selectable upto 2000/5 ratio
230V AC,50 Hz, Approx 4VA
3Ph-4W, 3Ph-3W
0°C To 55°C
Up to 95% RH Non Condensing
