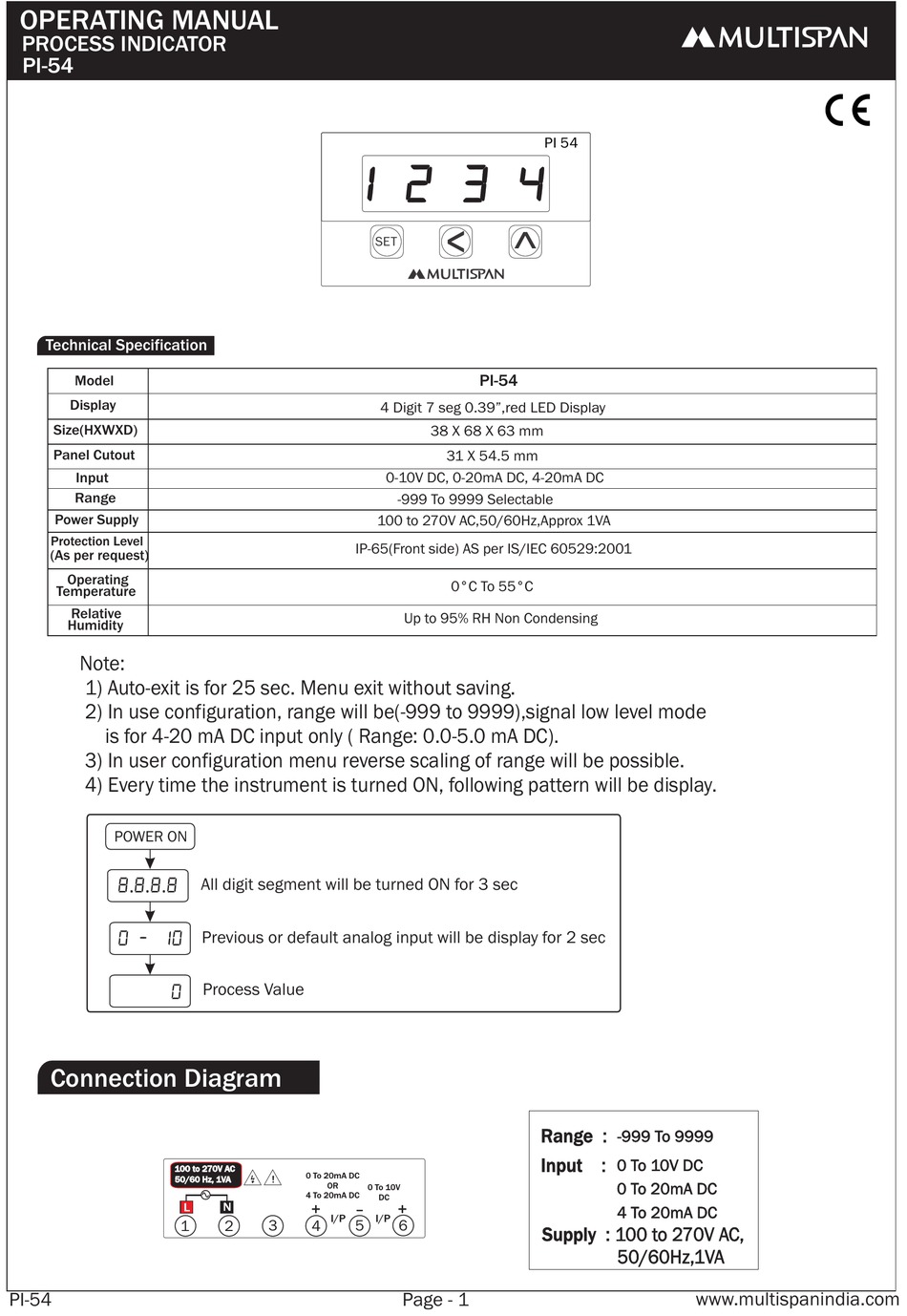

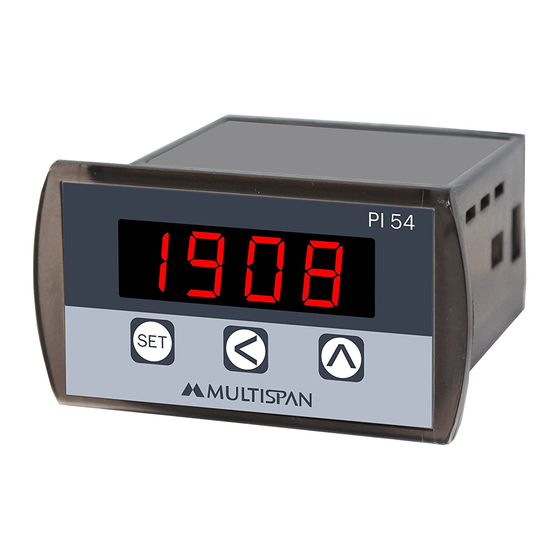

MULTISPAN PI-54 Operating Manual

OPERATING MANUAL
PROCESS INDICATOR
PI-54

Technical Specification

Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Range
Power Supply
Protection Level
(As per request)
Operating
Temperature
Relative
Humidity
Note:
1) Auto-exit is for 25 sec. Menu exit without saving.
2) In use configuration, range will be(-999 to 9999),signal low level mode
is for 4-20 mA DC input only ( Range: 0.0-5.0 mA DC).
3) In user configuration menu reverse scaling of range will be possible.
4) Every time the instrument is turned ON, following pattern will be display.
POWER ON
8.8.8.8
0 - 10
0

Connection Diagram

100 to 270V AC
50/60 Hz, 1VA
PI-54
1 2 3 4
All digit segment will be turned ON for 3 sec
Previous or default analog input will be display for 2 sec
Process Value
0 To 20mA DC
!
OR
4 To 20mA DC
N
L +
I/P
1 2 3 4
SET
PI-54
4 Digit 7 seg 0.39",red LED Display
38 X 68 X 63 mm
31 X 54.5 mm
0-10V DC, 0-20mA DC, 4-20mA DC
-999 To 9999 Selectable
100 to 270V AC,50/60Hz,Approx 1VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
Up to 95% RH Non Condensing
0 To 10V
DC
- +
I/P
5 6
Page - 1
PI 54
Range :
-999 To 9999
Input :
0 To 10V DC
0 To 20mA DC
4 To 20mA DC
Supply : 100 to 270V AC,
50/60Hz,1VA
www.multispanindia.com
