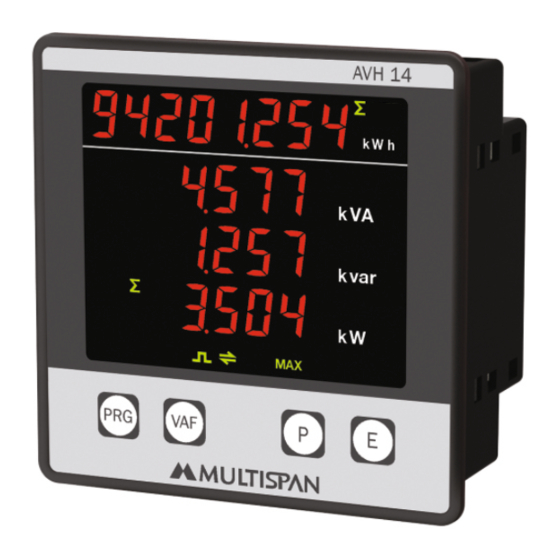

MULTI FUNCTION METER
AVH-14 Manual
TECHNICAL SPECIFICATION
Input Signal
CT Primary
up to 6000A (Programmable)
CT Secondary
PT Primary
PT Secondary
PF Avg. & Per Phase
Frequency (Hz)
Load hours
No load hours
RPM
KW Total
kW Per Phase
kVA Total
kVA Per Phase
kVAr Total
kVAr Per Phase
WH Total
Vah Total
Varh Total
DISPLAY & KEY :
Display
Upper
8 Digit, 7 Seg 0.40",RED LED
Lower
4 Digit, 3 Line 7 Seg 0.40",RED
Key
DIMENSION :
Size
Panel Cutout
3Ø 3 Wire / 3Ø 4Wire / 1Ø 2Wire
5 Amp/1 Amp selectable
100V to 520kV (Programmable)
100V to 520V (L-L) (Programmable)
0.100 - 1.000
45.00 - 60.00 Hz
9999.59 Hrs/Min.
9999.59 Hrs/Min.
3600 RPM @ 60 Hz & 2 pole
POWER
0.000 - 9999 MW
0.000 - 9999 MW
0.000 - 9999 MVA
0.000 - 9999 MVA
0.000 - 9999 MVAr
0.000 - 9999 MVAr
ENERGY
000.000 - 99999999 MWh
000.000 - 99999999 MVAh
000.000 - 99999999 MVArh
PROGRAM, VAF, POWER, ENERGY
96 (H) x 96 (W) x 54 (D) mm
92 (H) x 92 (W) mm
AUXILIARY SUPPLY :
Supply voltage
Power consumption
(VA RATING)
ACCURACY:
Class 0.5 (Standard)
ENVIRONMENT CONDITION:
Operating Temp.
Relative Humidity
Protection Level
(AS Per Request)
MAX
PRG
VAF
P
TERMINAL CONNECTION
20
19
18
17
L1
L2
S1
S2
S1
S2
AVH 14
CAT III
Current: 10mA To 5A AC
Voltage (L-L) : 35-520V AC
(L-N) : 20-300V AC
Made in India
Primary PT : 100V to 520KV
100
~
Secondary PT : 100V to 520V
270V AC
!
Primary CT: Up to 6000A AC
50/60 Hz
Secondary CT: By 5A/1A AC
4VA
System: 1Ph-2W/3Ph-3W/
3Ph-4W
L
N
Accuracy Class: 0.5
1
2
3
4
100 to 270V AC, 50/60Hz
Approx 4 VA @ 230V AC MAX
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
AVH 14
k
W h
k VA
kvar
k W
E
16
15
14 13
12
L3
S1
S2
www.multispanindia.com
V
V
V
L
L
1
2
5
6
7
8
Page-1
11
+
-
Pulse
O/P
N
L
3
9
10
Advertisement
Related Manuals for MULTISPAN AVH-14
Summary of Contents for MULTISPAN AVH-14
- Page 1 MULTI FUNCTION METER AVH-14 Manual AUXILIARY SUPPLY : Supply voltage 100 to 270V AC, 50/60Hz Power consumption Approx 4 VA @ 230V AC MAX (VA RATING) ACCURACY: Class 0.5 (Standard) ENVIRONMENT CONDITION: Operating Temp. 0°C to 55°C UP to 95% RH...
-
Page 2: Maintenance
KEY OPERATION MECHANICAL INSTALLATION GUIDELINES 1. Prepare the panel cutout with proper dimensions as shown FUNCTION PRESS KEY above. OPERATOR MODE 2. Fit the unit into the panel with the help of clamp given. To view different pages 3. The equipment in its installed state must not come in close proximity to any heating source, caustic vapors, oils steam, or other unwanted process byproducts. -
Page 3: Parameter Setting
PARAMETER SETTING Basic Parameter Setting : Advance Parameter Setting : Network, CT/PT Selection. Load Hour %, No Load Hour, RPM. Enter Password 25 Enter Password 10 Long Press Long Press To Enter into parameter To Enter into parameter Load Hour Network Selection Enable / Disable (3P-4W/3P-3W/1P-2W) - Page 4 PARAMETER SETTING Reset Parameter : kWh, kVAh, kvarh, Load Hour, No Load Hour, Max kW, Max kVA, Max kVAr, Max Voltage, Min Voltage Reset Enter Password 15 No Load Hour Long Press (Yes/No) To Enter into parameter Reset Max KW Reset All Parameter (Yes/No)
- Page 5 DISPLAY PAGES for 9) Max Voltage L-N 1) Voltage L-N 3P-3W 3P-4W 3P-3W 3P-4W Energy Value Energy Value Display Line 1 Display Line 1 Display Line 2 Display Line 2 MAX VALUE Display Line 3 Display Line 3 2) Voltage L-L 10) Max Voltage L-L 3P-3W 3P-4W...
- Page 6 DISPLAY PAGES for 1) kW PER PHASE 4) Total kW,kVA,kvar k V A 3P-3W 3P-4W 3P-3W 3P-4W k v a r Energy Value Energy Value Display Line 1 Total KVA Total KVA Display Line 1 L1 KW Display Line 2 Total KVAR Total KVAR Display Line 2 L2 KW...
