MULTISPAN MFM 13-M1 Manual

TECHNICAL SPECIFICATION
PARAMETER SPECIFICATION
Input Signal
3Ø 3 Wire / 3Ø 4Wire / 1Ø 2Wire
CT Primary up to 6000A (Programmable)
5 Amp/1 Amp selectable
CT Secondary
PT Primary 100V to 520kV (Programmable)
PT Secondary 100V to 520V (L-L) (Programmable)
PF Avg. & Per Phase
0.100 - 1.000
Frequency (Hz)
45.00 - 60.00 Hz
Load hours 9999.59 Hrs/Min.
No load hours 9999.59 Hrs/Min.
RPM 3600 RPM @ 60 Hz & 2 pole
KW Total 0.000 - 9999 MW
kW Per Phase 0.000 - 9999 MW
kVA Total 0.000 - 9999 MVA
kVA Per Phase
0.000 - 9999 MVA
kVAr Total 0.000 - 9999 MVAr
kVAr Per Phase
0.000 - 9999 MVAr
kWH Total 000.000 - 999999999.999 kWh
kVAh Total 000.000 - 999999999.999 kVAh
kVArh Total 000.000 - 999999999.999 kVArh
DISPLAY & KEY :
Display
Key
DIMENSION :
Size
Panel Cutout

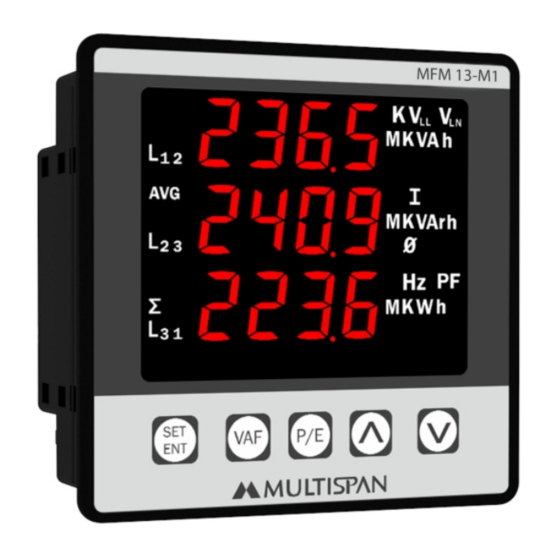

MULTI FUNCTION METER
MFM 13-M1
POWER
ENERGY
4 Digit,3 Line 0.57" RED
SET/ENT,VAF,P/E, INC, DEC
96 (H) x 96 (W) x 54 (D) mm
92 (H) x 92 (W) mm
AUXILIARY SUPPLY :
Supply voltage
Power consumption
(VA RATING)
COMMUNICATION:
RS-485 MODBUS
ACCURACY:
Class 0.5 (Standard)
ENVIRONMENT CONDITION:
Operating Temp.
Relative Humidity
Protection Level
(AS Per Request)
MECHANICAL INSTALLATION
Outline Dimension (mm)
MFM 13-M1
L L
96
SET
VAF P/E
ENT
96
TERMINAL CONNECTION
20 19 18 17
L1 L2
S1 S2 S1 S2
Current: 30mA To 5A AC
CAT III
Voltage (L-L) : 35-520V AC
(L-N) : 20-300V AC
Made in India
Primary PT : 100V to 520KV
100 ~
Secondary PT : 100V to 520V
270V AC Primary CT: Up to 6000A AC
!
Secondary CT: By 5A/1A AC
50/60 Hz
4VA System: 1Ph-2W/3Ph-3W/3Ph-4W
Accuracy Class: 0.5
L N
1 2 3 4
100 to 270V AC, 50/60Hz
Approx 4 VA @ 230V AC MAX
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
92
92
3
54
16 15 14 13
L3
S1 S2
D+ D-
MODBUS
www.multispanindia.com
V
V
L L
1 2
5 6 7 8
12 11
+ -
PULSE
O/P
V
N
L
3
9 10
