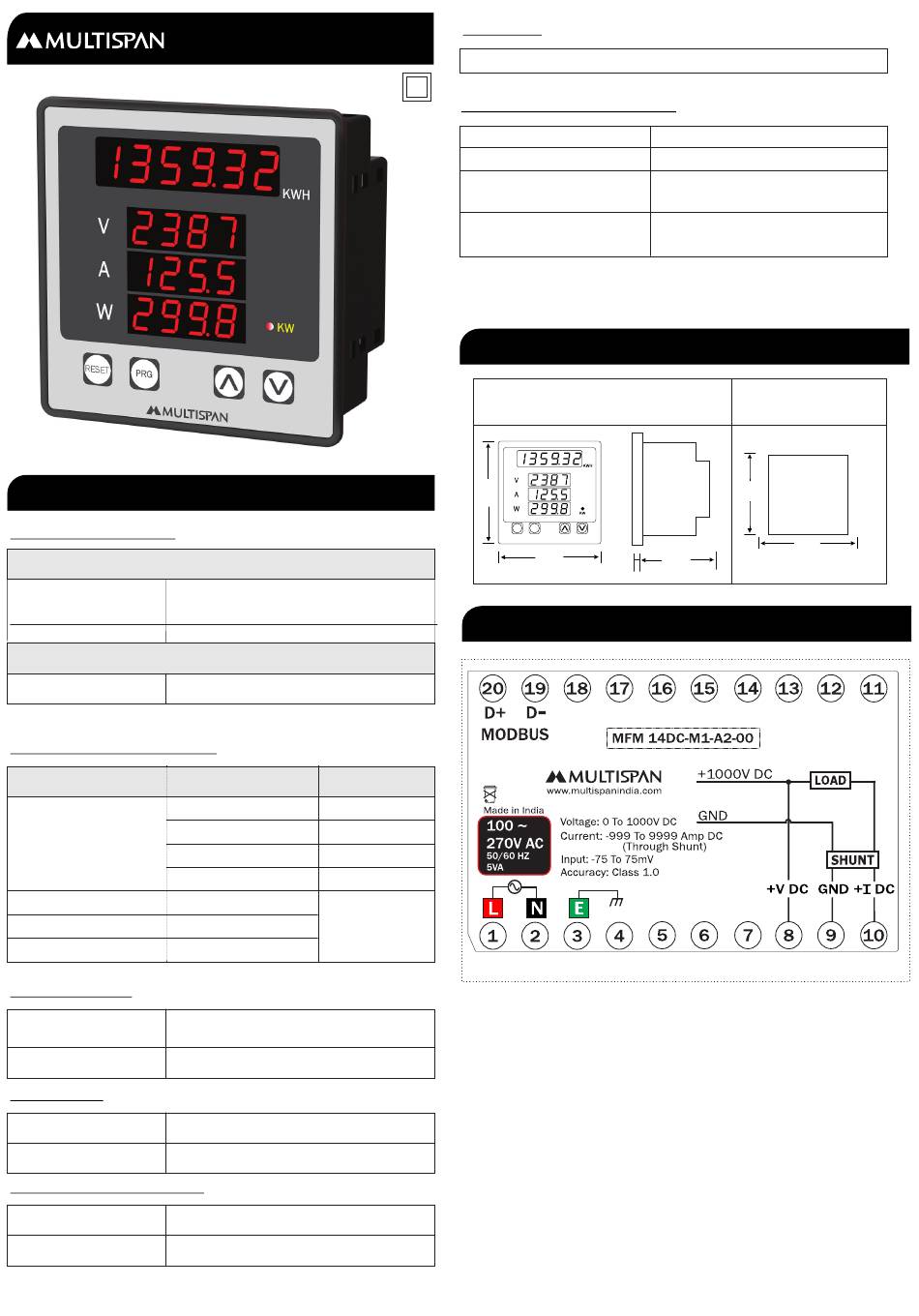

MULTISPAN MFM 14DC-M1 Manual

TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Input Current Through external shunt
(-75mV To+75mV DC)
Shunt Selectable 5 to 9999 Amp
Direct voltage DC 0 to 1000V DC
CALCULATED PARAMETERS :
Parameter
0.00 - 49.99 V DC
50.0 - 199.9 V DC
DC Voltage
200.0 - 399.9 V DC
400.0 - 1000 V DC
DC Current -999 - 9999 A DC
WATT
-999 - 9999 KW
0 - 999999 KWH
KWH
DISPLAY & KEYS :
6 Digit, 7 seg. 0.40" RED
Display
4 Digit, 3 Line 7 seg. 0.40" RED
Key RESET, PRG, INC, DEC
DIMENSION :
Size (mm) 96 (H) x 96 (W) x 54 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
AUXILIARY POWER SUPPLY :
Power Supply 100V to 270V AC
Burden Approx 5VA @ 230V AC

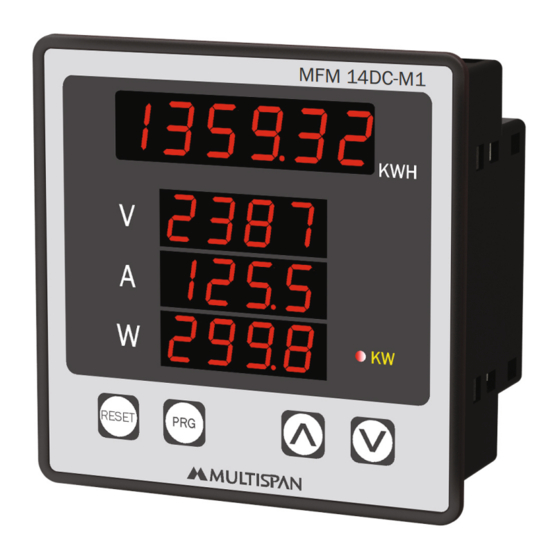

DC MULTIFUNCTION METER
MFM 14DC-M1
MF M 14 DC -M 1
Current
Voltage
Range Accuracy
1 % OF 49.99V
1 % OF 199.9V
1 % OF 399.9V
1 % OF 1000 V
1 % OF FSD
ACCURACY
Class 1.0 (Standard)
ENVIRONMENTAL CONDITION
Working Temperature
Storage Temperature
Relative Humidity
Protection Level
( As per Request )
MECHANICAL INSTALLATION
Outline Dimension (mm)
MFM 14DC-M1
96
DC POWER METER
RESET PRG
3
96
TERMINAL CONNECTION
0 to 55°C
0 to 55°C
95 % RH Non-
Condensing
IP-65 (Front side As per
IS/IEC 60529 : 2001)
Panel Cutout
Dimension (mm)
92
92
54
