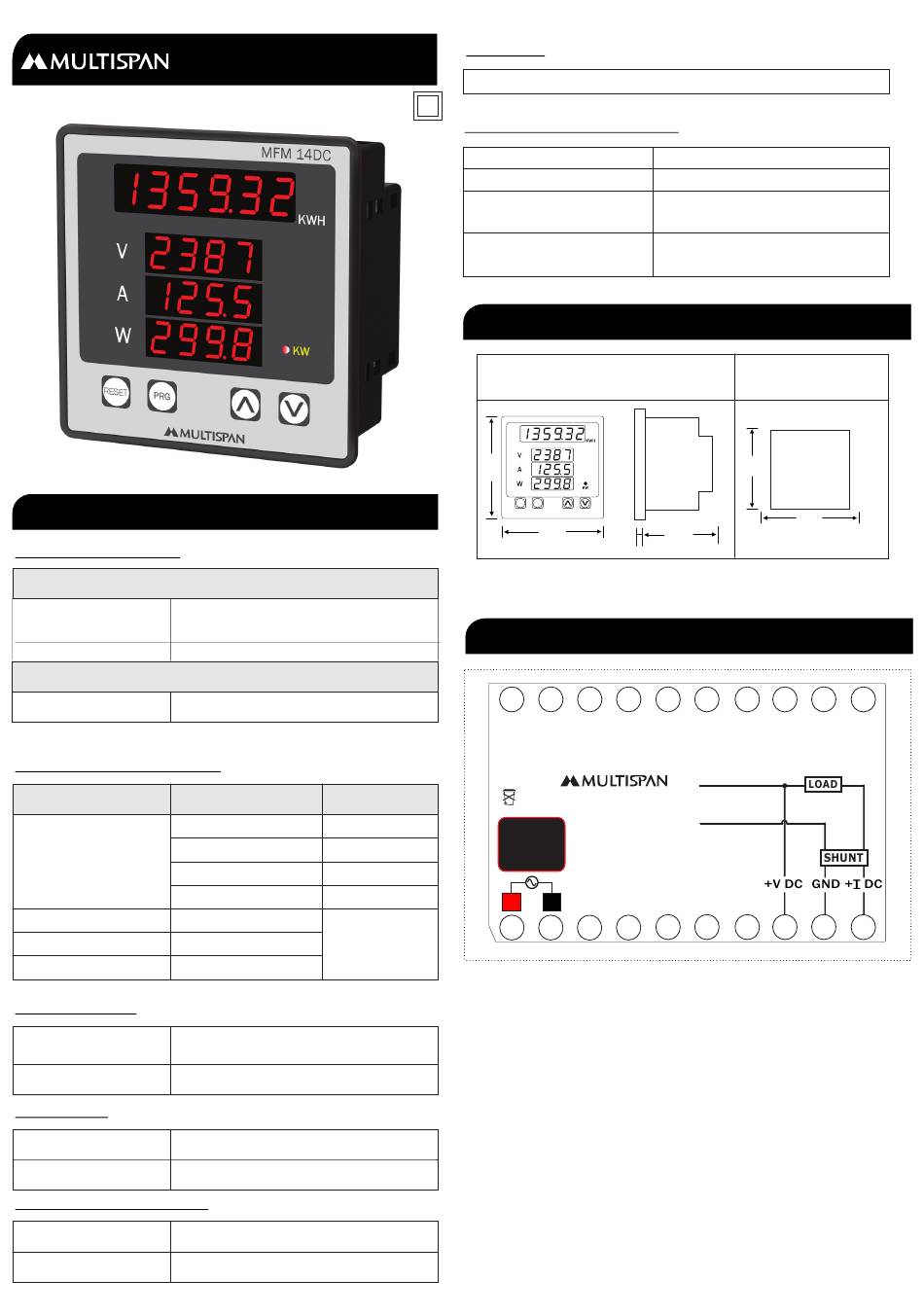

MULTISPAN MFM 14DC Quick Start Manual

TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Input Current Through external shunt
(-75mV To+75mV DC)
5 to 9999 Amp
Shunt Selectable
Direct voltage DC 0 to 1000V DC
CALCULATED PARAMETERS :
Parameter
0.00 - 49.99 V DC
50.0 - 199.9 V DC
DC Voltage
200.0 - 399.9 V DC
400.0 - 1000 V DC
DC Current -999 - 9999 A DC
WATT
-999 - 9999 KW
0 - 999999 KWH
KWH
DISPLAY & KEYS :
6 Digit, 7 seg. 0.40" RED
Display
4 Digit, 3 Line 7 seg. 0.40" RED
Key RESET, PRG, INC, DEC
DIMENSION :
Size (mm) 96 (H) x 96 (W) x 54 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
AUXILIARY POWER SUPPLY :
Power Supply 100V to 270V AC
Burden Approx 5VA @ 230V AC
DC MULTIFUNCTION METER
MFM 14DC
Current
Voltage
Range Accuracy
1 % OF 49.99V
1 % OF 199.9V
1 % OF 399.9V
1 % OF 1000 V
1 % OF FSD
ACCURACY
Class 1.0 (Standard)
ENVIRONMENTAL CONDITION
Working Temperature
Storage Temperature
Relative Humidity
Protection Level
( As per Request )
MECHANICAL INSTALLATION
Outline Dimension (mm)
MFM 142DC
96
DC POWER METER
RESET PRG
3
96
TERMINAL CONNECTION
20 19 18 17
www.multispanindia.com
Made in India
100 ~
Voltage: 0 To 1000V DC
270V AC
Current: -999 To 9999 Amp DC
50/60 HZ
(Through Shunt)
5VA
Input: -75 To 75mV
Accuracy: Class 1.0
L N
1 2 3 4
0 to 55°C
0 to 55°C
95 % RH Non-
Condensing
IP-65 (Front side As per
IS/IEC 60529 : 2001)
Panel Cutout
Dimension (mm)
92
92
54
16 15 14 13 12
+1000V DC
GND
5 6 7 9
8
11
10
