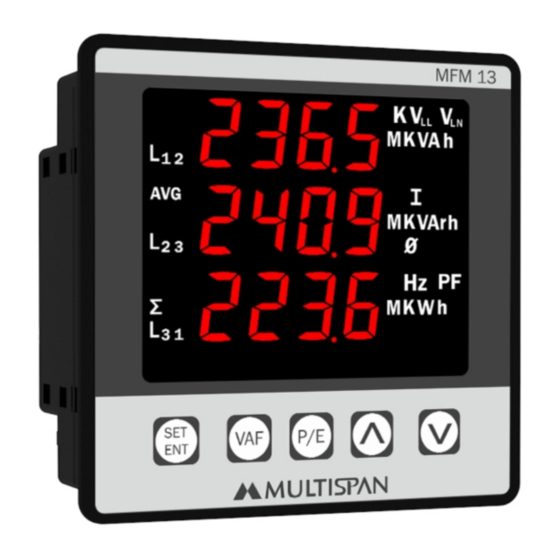

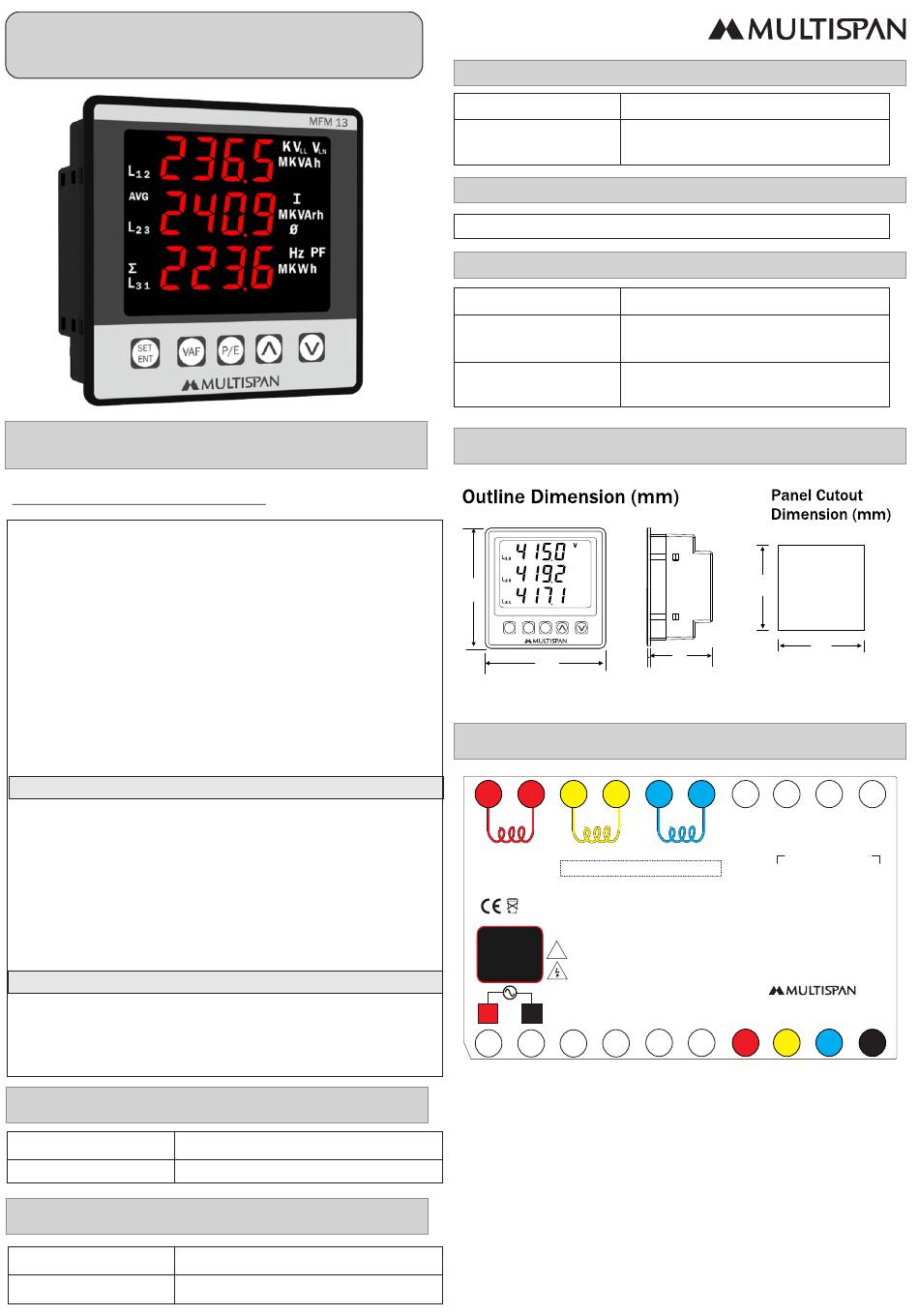

MULTI FUNCTION METER
MFM-13 Manual
TECHNICAL SPECIFICATION
PARAMETER SPECIFICATION
Input Signal
3Ø 3 Wire / 3Ø 4Wire / 1Ø 2Wire
CT Primary
up to 6000A (Programmable)
5 Amp/1 Amp selectable
CT Secondary
PT Primary
100V to 520kV (Programmable)
PT Secondary
100V to 520V (L-L) (Programmable)
PF Avg. & Per Phase
0.100 - 1.000
Frequency (Hz)
45.00 - 60.00 Hz
Load hours
9999.59 Hrs/Min.
No load hours
9999.59 Hrs/Min.
3600 RPM @ 60 Hz & 2 pole
RPM
KW Total
0.000 - 9999 MW
kW Per Phase
0.000 - 9999 MW
kVA Total
0.000 - 9999 MVA
kVA Per Phase
0.000 - 9999 MVA
kVAr Total
0.000 - 9999 MVAr
kVAr Per Phase
0.000 - 9999 MVAr
kWH Total
000.000 - 999999999.999 kWh
kVAh Total
000.000 - 999999999.999 kVAh
kVArh Total
000.000 - 999999999.999 kVArh
DISPLAY & KEY
Display
Key
DIMENSION
Size
Panel Cutout
POWER
ENERGY
4 Digit,3 Line 0.57" RED
SET/ENT,VAF,P/E, INC, DEC
96 (H) x 96 (W) x 54 (D) mm
92 (H) x 92 (W) mm
AUXILIARY SUPPLY
Supply voltage
Power consumption
(VA RATING)
ACCURACY
Class 0.5 (Standard)
ENVIRONMENT CONDITION
Operating Temp.
Relative Humidity
Protection Level
(AS Per Request)
MECHANICAL INSTALLATION
MFM 13
L L
96
SET
VAF
P/E
ENT
96
TERMINAL CONNECTION
20
19
18
17
L1
L2
S1
S2
S1
S2
Model:
MFM-13-A2-01-32
Current: 30mA To 5A AC
CAT III
Voltage (L-L) : 35-520V AC
(L-N) : 20-300V AC
Made in India
Primary PT : 100V to 520KV
~
100
Secondary PT : 100V to 520V
270V AC
Primary CT: Up to 6000A AC
!
Secondary CT: By 5A/1A AC
50/60 Hz
4VA
System: 1Ph-2W/3Ph-3W/3Ph-4W
Accuracy Class: 0.5
L
N
1
2
3
4
100 to 270V AC, 50/60Hz
Approx 4 VA @ 230V AC MAX
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
92
92
54
3
16
15
14 13
L3
S1
S2
www.multispanindia.com
V
V
V
L
L
1
2
5
6
7
8
12
11
+
-
Pulse
O/P
N
L
3
9
10
Advertisement
Table of Contents
Related Manuals for MULTISPAN MFM-13
Summary of Contents for MULTISPAN MFM-13
- Page 1 MULTI FUNCTION METER MFM-13 Manual AUXILIARY SUPPLY Supply voltage 100 to 270V AC, 50/60Hz Power consumption Approx 4 VA @ 230V AC MAX (VA RATING) ACCURACY Class 0.5 (Standard) ENVIRONMENT CONDITION Operating Temp. 0°C to 55°C UP to 95% RH...
-
Page 2: Key Operation
KEY OPERATION MECHANICAL INSTALLATION GUIDELINES 1. Prepare the panel cutout with proper dimensions as shown FUNCTION PRESS KEY above. OPERATOR MODE 2. Fit the unit into the panel with the help of clamp given. To view VAF Pages 3. The equipment in its installed state must not come in close proximity to any heating source, caustic vapors, oils steam, or other unwanted process byproducts. - Page 3 PARAMETER SETTING LOAD HOUR & RPM Long Press Enter Password 25 Enter Password 10 Load Hour Enable / Disable Network Selection Load Hour Percentage (5 to 50%) CT Primary (5 Amp to 6000 Amp selectable) Enable / Disable CT Secondary Pole (1 to 128) (5 Amp/1 Amp selectable)
- Page 4 BASIC MODE PAGES VAF Pages: POWER & ENERGY Pages: Press key to change page Press key to change page 1) kW PER PHASE 5) kWh Total 6) AVG V(L-L)-A-F 1) Voltage L-N 2) kVA PER PHASE 7) PF L1L2L3 2) Voltage L-L 6) kvah Total 3) kvar PER PHASE 8) System PF...
- Page 5 VAF Pages: Press key to change page 1) Voltage L-N 9) Line 12 V(L-L)-A-F 17) Line 3 V(LN)-A-PF 2) Voltage L-L 10) Line 23 V(L-L)-A-F 18) AVG V(LN)-A-PF 11) Line 31 V(L-L)-A-F 3) Current 19) Line12 V(LL)-A-PF 12) AVG V(L-L)-A-F 4) System Frequency 20) Line23 V(LL)-A-PF 13) PF L1 L2 L3...
- Page 6 POWER & ENERGY Pages : LOAD HOUR & RPM Pages : Press key to change page 1) Load Hour 2) No Load Hour 3) RPM 1) kW PER PHASE 8) kWh Total 1Phase 2 wire Pages 2) kVA PER PHASE 9) kvah Total VAF Pages : 2) V(L-N)-A-PF...
-
Page 7: Reset Settings
RESET SETTINGS Enter Password 15 Reset All Parameter (Yes/No) Reset (Yes/No) Reset kVAh (Yes/No) Reset kVArh (Yes/No) Reset Load Hour (Yes/No) Reset No Load Hour (Yes/No) Press key to save & exit from parameter setting...
