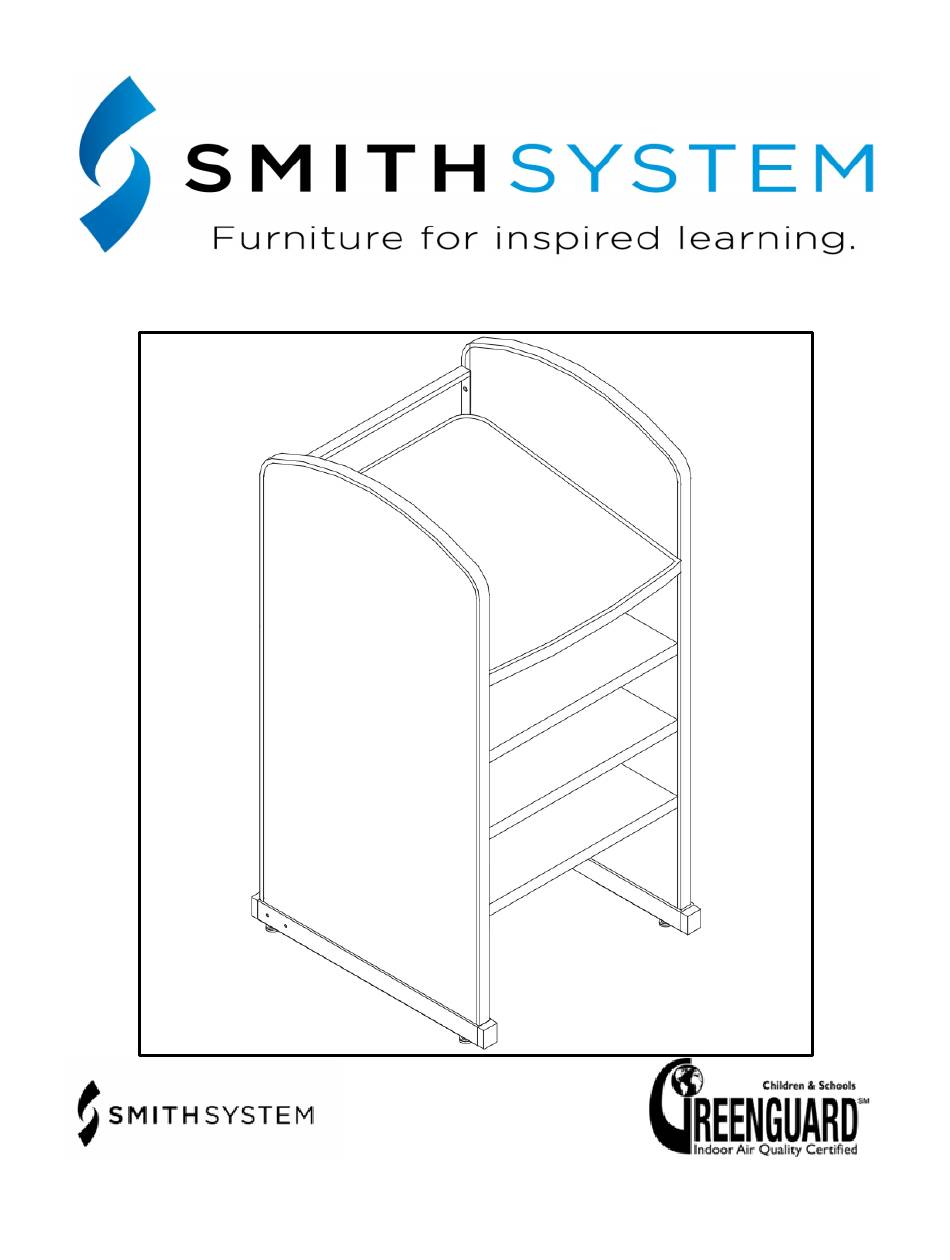

- Page 1 Reference Library Carrel Assembly Instructions Model 26690 For assistance in assembling the product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061. Form # 179826 02/2013...
- Page 2 Special Notes 1. Check that all components are accounted for and undamaged before assembling. 2. Assemble the product in a clean and dry area. 3. For larger units, you may need another person to help assemble the product. 4. Clean the product with a mild cleaner and a damp cloth. Tools You will need a Phillips head screwdriver.
- Page 3 Assembly Instructions Step 1: With help, lay the side panels on the floor while aligning the cross bar with the pilot holes. Using (4) Machine Screws, attach the crossbar to the side panels (See Drawing 1A). Drawing 1A Step 2: Slide the modesty panel in-between both panels, with the bracket facing up. Verify alignment with the pilot holes and attach using (6) Connector Bolts (See Drawing 2A).
- Page 4 Step 3: Slide the work surface above both brackets until it runs flush against the modesty panel. Align the predrilled holes underneath the table top with the brackets. Using (6) Wood Screws, attach the top to the brackets. Step 4: Slide the shelves in-between the side panels, align with the pilot holes, and attach using (6) Wood Screws per shelf.
