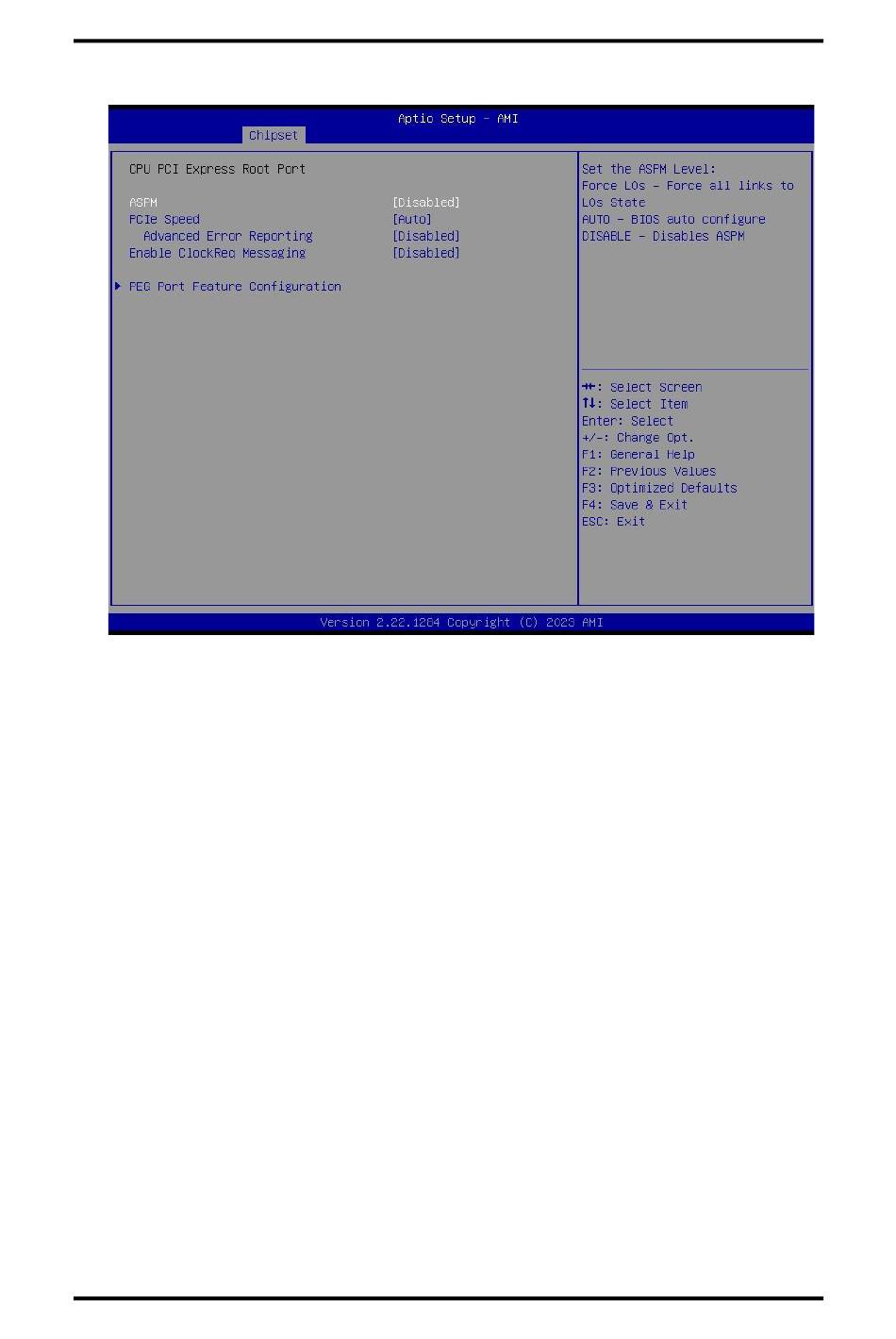

CPU PCI Express Root Port
This screen shows CPU PCI Express root port information.
ASPM
Set the ASPM Level:\nForce L0s - Force all links to L0s State\nForce L1 - Force all links to
L1 State\nForce L0sL1 - Force all links to L0SL1 State\nDISABLE - Disables ASPM.
PCIe Speed
Configure PCIe Speed.
PCIe Slot x16 = PCIE_16X_SLOT1
PEG Port Feature Configuration
Detect Non-Compliance PCI Express Device in PEG
AMI BIOS Setup Utility
IMB540 User's manual
47
