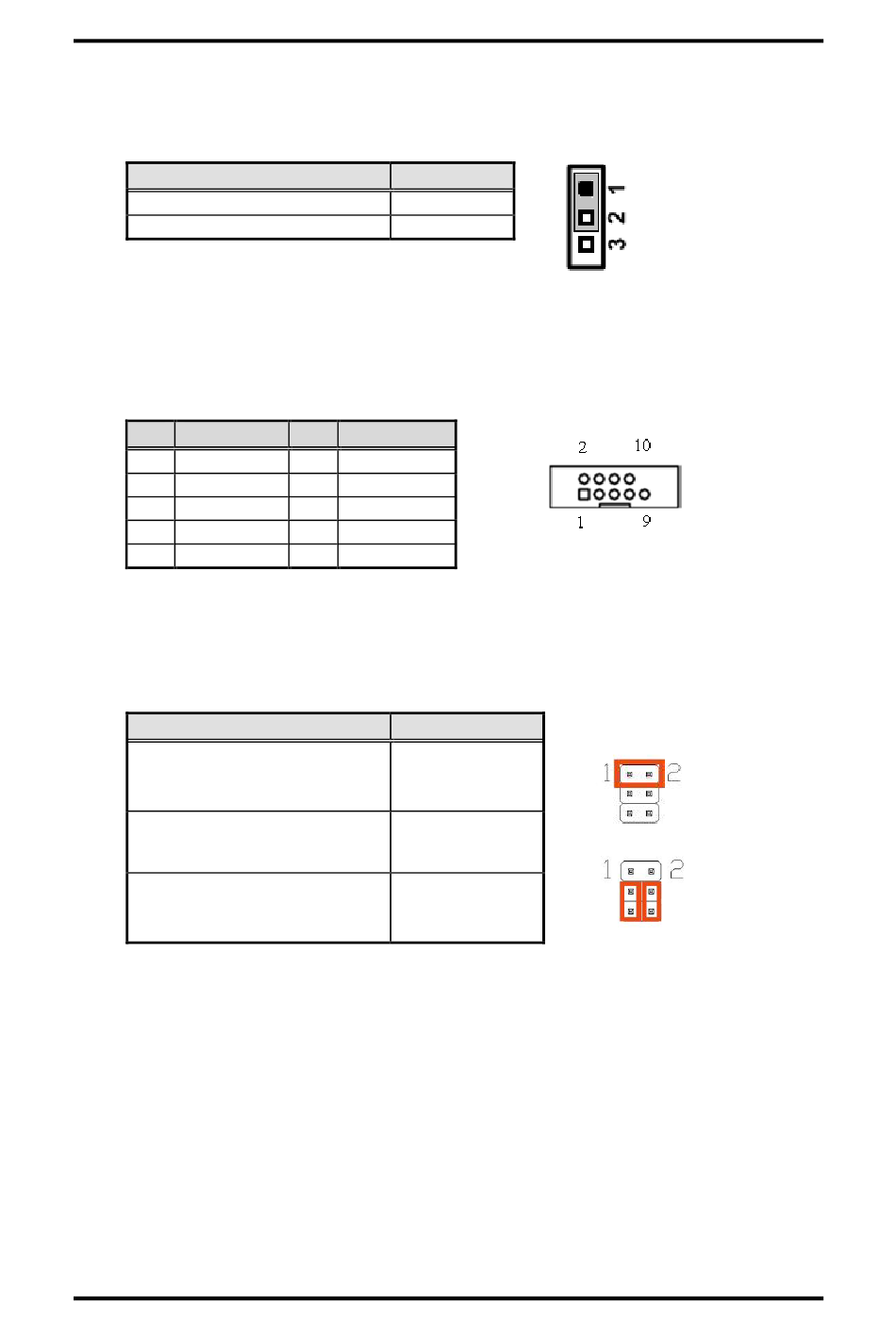

2.3.23
COM4 RS485 Signal 120Ω Resistive termination Select
Jumper(JP17)
Use these jumpers (3x1-pin p=2.54mm) to set signal
Function
Disable (Default)
Enable
2.3.24
COM BOX Headers (COM2, COM3, COM4, COM5, COM6)
The motherboard comes with 5x2-pin p=2.54mm box headers for COM serial port
interfaces.
Pin
Signal
1
DCD#
3
RXD#
5
TXD#
7
DTR#
9
GND
2.3.25
COM3 Mode Select (JP4, JP5, JP6)
Use these jumpers (3x2-pin p=2.54mm) to set COM3 port to operate in RS-232, RS-422
or RS-485 communication mode.
Function
RS232(Default)
RS422
RS485
Board and Pin Assignments
Setting
1-2 close
2-3 close
Pin
Signal
2
DSR#
4
RTS#
6
CTS#
8
RI#
10
N/C
Setting
JP4: 1-2
JP5: 3-5、4-6
JP6: 3-5、4-6
JP4: 3-4
JP5: 1-3、2-4
JP6: 1-3、2-4
JP4: 5-6
JP5: 1-3、2-4
JP6 (No Effect)
IMB540 User's manual
21
