Install LTE Mini PCIe Module, please follow the instructions as blow:
Step 1 Turn off the system and unplug the power cord.

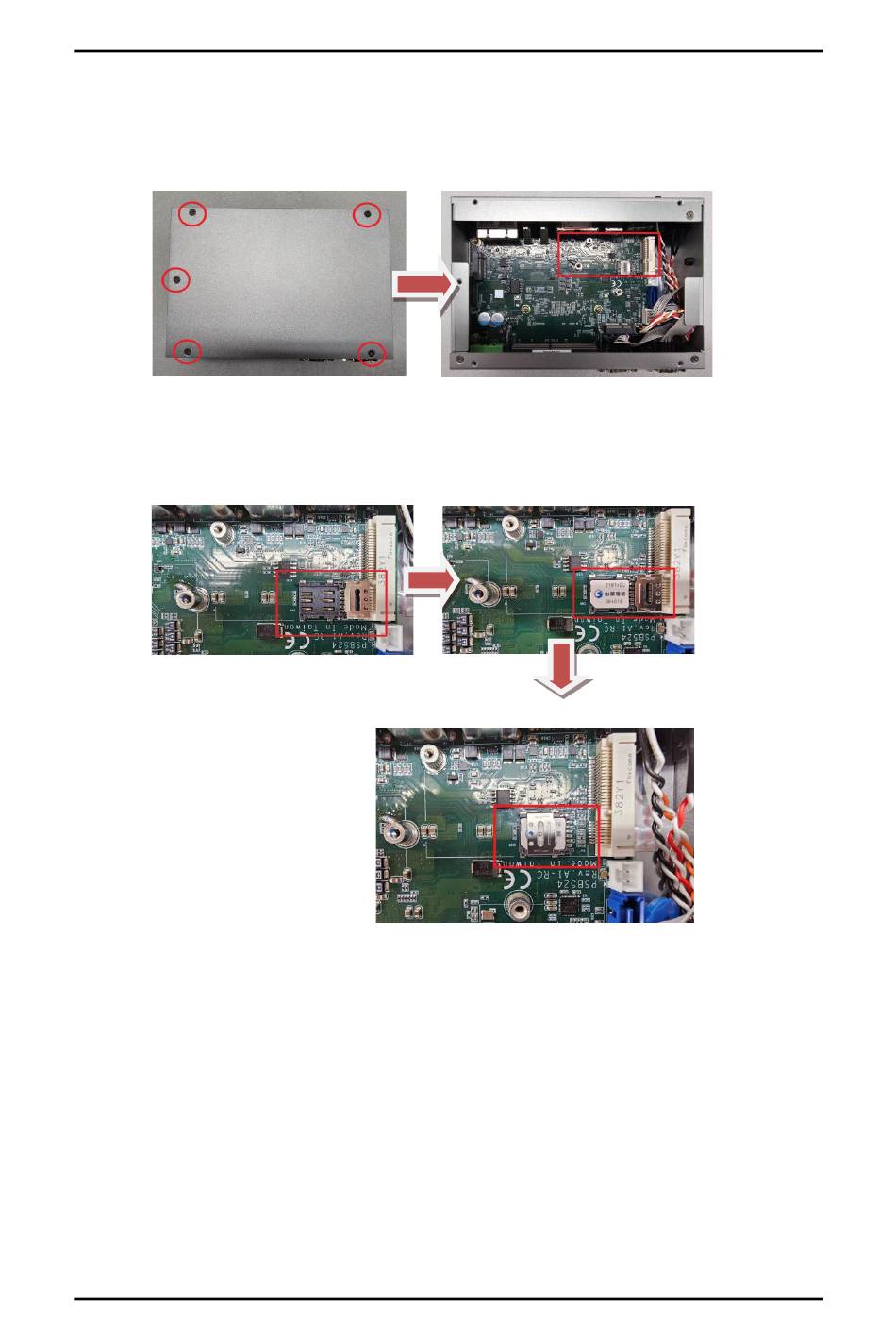

Step 2 Loosen five screws to remove bottom cover and locate PCIe mini card
slot within the red line as marked.
Step 3
Insert the corresponding SIM card into SIM socket (CN9) before you
install the mini-PCIe module.
Slide and lift SIM card holder
Hardware Installation
eBOX570 Series user's Manual
Insert SIM card with pins facing down
Secure the SIM card by sliding the holder.
17
