ASROCK Rack EC266D2I Quick Installation Manual

*15G065307000AK*
P/N: 15G065307000AK V1.0

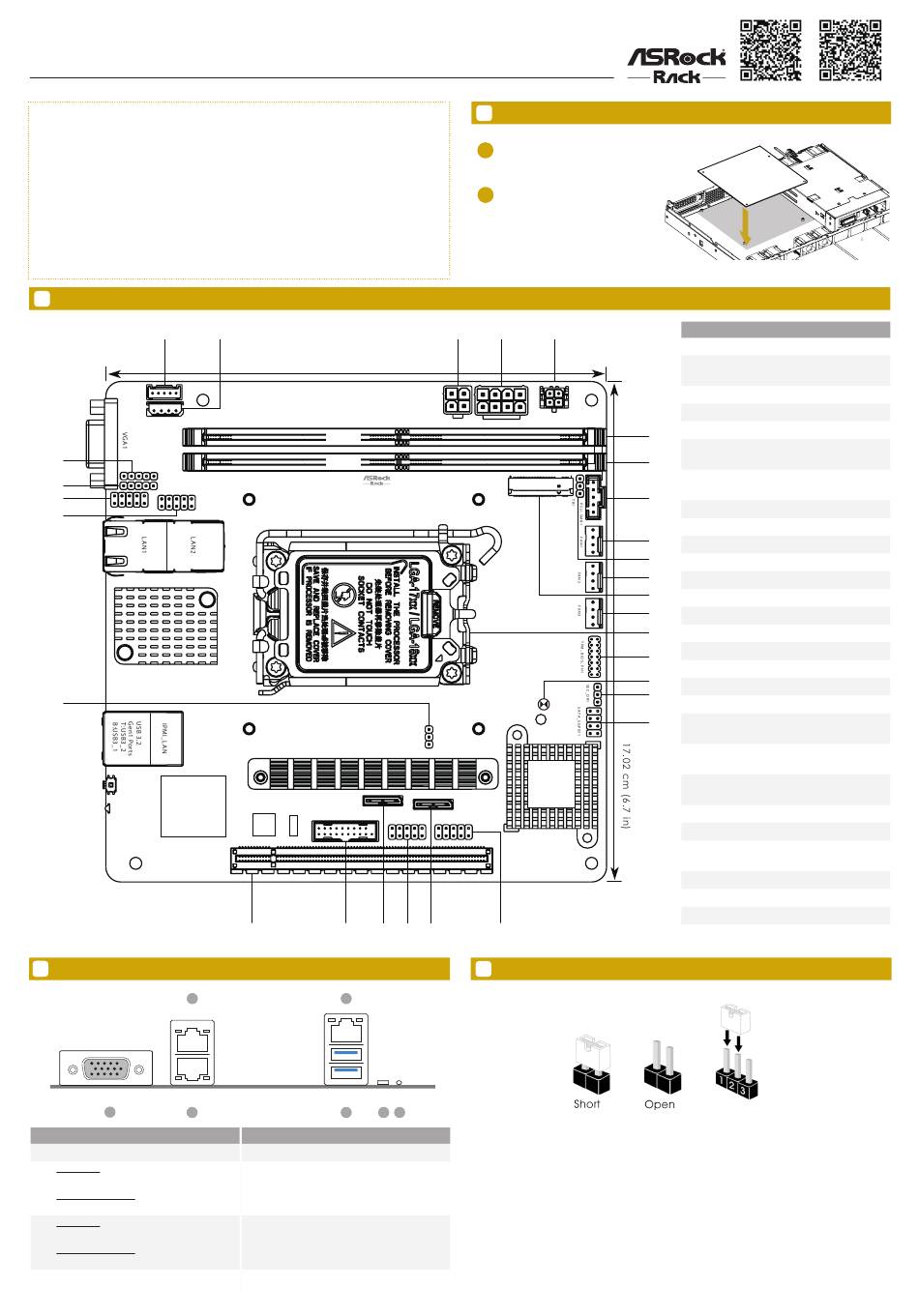

Quick Installation Guide
EC266D2I | EC266D2I-2T/AQC
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before installing server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place the
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever uninstall any component, place it on a grounded anti-static pad or in the bag that
comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

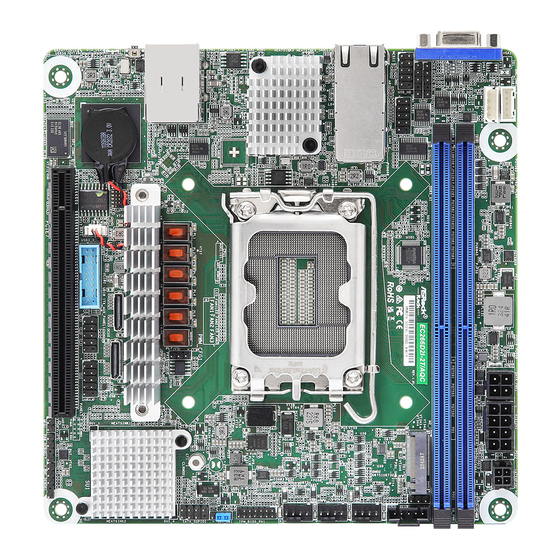

2 Motherboard Layout
1
BMC_SMB1
IPMB1
29
IPMI_LED1
28
UID_HD
27
COM1
26 NCSI1
25
UID1
SPEED
UID_LED1
AST2600
3 I/O Panel
3
1 2
No. Description
1 VGA Port (VGA1)
EC266D2I:
1G LAN RJ-45 Port (LAN1, shared NIC)
2
EC266D2I-2T/AQC:
10G LAN RJ-45 Port (LAN1)
EC266D2I:
1G LAN RJ-45 Port (LAN2)
3
EC266D2I-2T/AQC:
10G LAN RJ-45 Port (LAN2)
4 USB 3.2 Gen1 Ports (USB3_1_2)
2
17.02 cm (6.7 in)
DDR5_B1
DDR5_A1
EC266D2I-2T/AQC
CPU1
OCU2
USB3_3_4
ITX_AUX_PANEL1
BMC
ROM
PCIE7
BAT1
24 23 22
5
4 6
No. Description
5 LAN RJ-45 Port (IPMI_LAN)*
6 UID Switch (UID1)
7 UID LED (UID_LED1)
1 Install the Server Board
1
Insert the server board into the chassis.
2
Affix the screws clockwise into the
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws.
3 4 5
ATX4PIN1
SATA_PWR1 ATX12V1
M2_1
EC266D2I
CLRCMOS1
NUT
PWM_CFG1
Intel®
C266
OCU1
PANEL1
21 20 19
4 Jumper Cap On/Off
7
When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the
pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed
on these 2 pins.
www.asrockrack.com
EC266D2I
No. Description
1 BMC SMBus Header (BMC_SMB1)
Intelligent Platform Management Bus
2
Header (IPMB1)
3 SATA Power Connector (SATA_PWR1)
4 ATX 12V Power Connector (ATX12V1)
5 Micro-Fit Power Connector (ATX4PIN1)
6
1 x 288-pin DDR5 DIMM Slots
6
(DDR5_B1)
7
1 x 288-pin DDR5 DIMM Slots
7
(DDR5_A1)
8
8 PSU SMBus Header (PSU_SMB1)
9 Chassis Fan Connector (FAN1)
9
10 Thermal Sensor Header (TR1)
10
11 Chassis Fan Connector (FAN2)
11
12 M.2 Socket (M2_1) (Type 2280)
12
13 Chassis Fan Connector (FAN3)
13
14 Single Socket (LGA-1700) (CPU1)
14
15 SPI TPM Header (TPM_BIOS_PH1)
16 Clear CMOS Pad (CLRMOS1)
15
17 Security Override Jumper (SEC_OR1)
16
18 SATA SGPIO Connector (SATA_SGPIO1)
17
19 System Panel Header (PANEL1)
18
OCuLink Connector
20
(PCIe4.0 x4 or SATA 6Gb/s) (OCU1)
Auxiliary Panel Header
21
(ITX_AUX_PANEL1)
OCuLink Connector
22
(PCIe3.0 x4 or SATA 6Gb/s) (OCU2)
23 USB 3.2 Gen1 Header (USB3_3_4)
24 PCI Express 5.0 x16 Slot (PCIE7)
PWM Configuration Header
25
(PWM_CFG1)
26 COM Port Header (COM1)
27 NCSI Header (NCSI1)
28 UID Button Header (UID_HD)
29 IPMI LAN LED Header (IPMI_LED1)
EC266D2I-2T/AQC
