Extron electronics QGE 100 Setup Manual

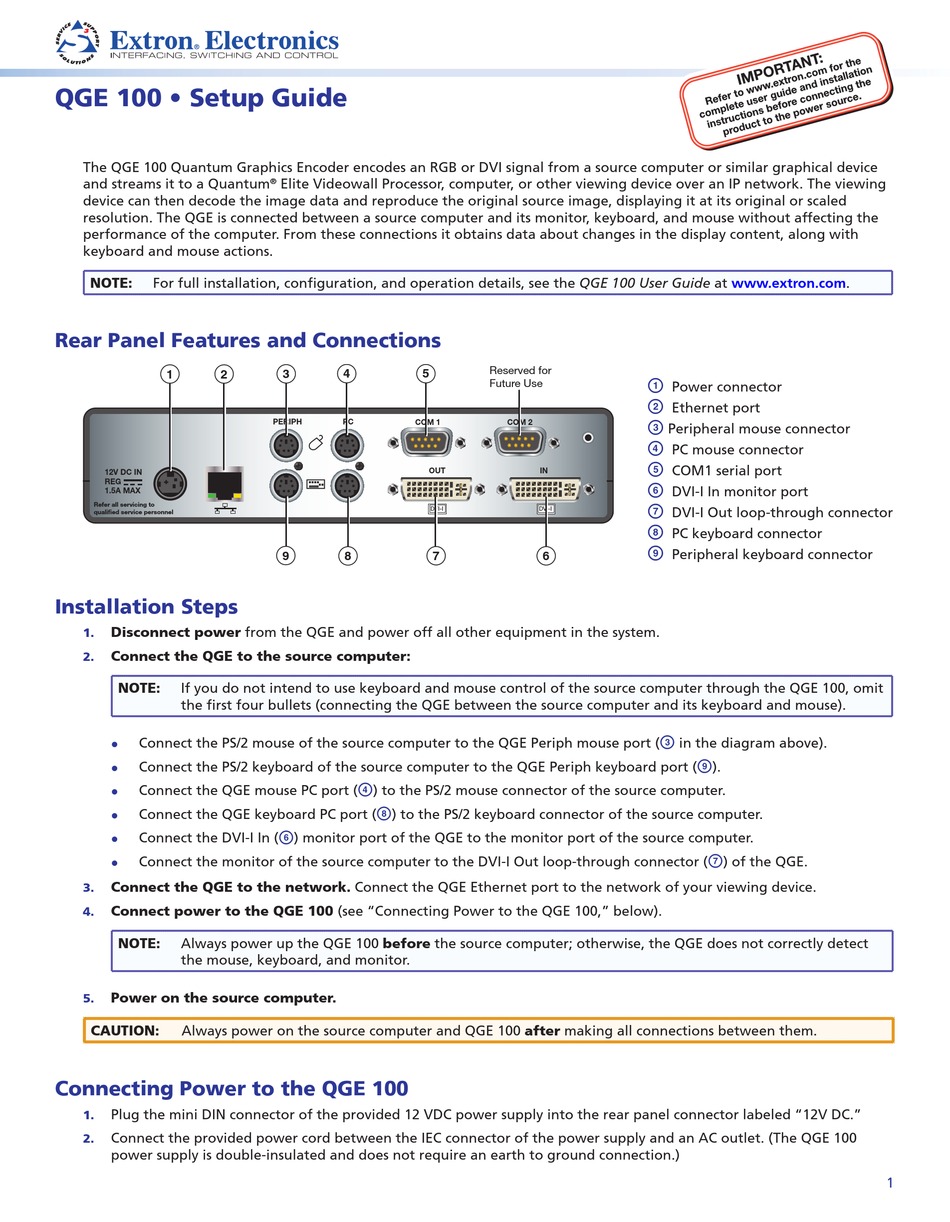

QGE 100 • Setup Guide
The QGE 100 Quantum Graphics Encoder encodes an RGB or DVI signal from a source computer or similar graphical device
and streams it to a Quantum
device can then decode the image data and reproduce the original source image, displaying it at its original or scaled
resolution. The QGE is connected between a source computer and its monitor, keyboard, and mouse without affecting the
performance of the computer. From these connections it obtains data about changes in the display content, along with
keyboard and mouse actions.
NOTE:
For full installation, configuration, and operation details, see the QGE 100 User Guide at www.extron.com.

Rear Panel Features and Connections

1 2
12V DC IN
REG
1.5A MAX
Refer all servicing to
qualified service personnel

Installation Steps

Disconnect power from the QGE and power off all other equipment in the system.
1.
Connect the QGE to the source computer:
2.
NOTE: If you do not intend to use keyboard and mouse control of the source computer through the QGE 100, omit
the first four bullets (connecting the QGE between the source computer and its keyboard and mouse).
Connect the PS/2 mouse of the source computer to the QGE Periph mouse port (
z
Connect the PS/2 keyboard of the source computer to the QGE Periph keyboard port (
z
Connect the QGE mouse PC port (
z
Connect the QGE keyboard PC port (
z
Connect the DVI-I In (
z
Connect the monitor of the source computer to the DVI-I Out loop-through connector (
z
Connect the QGE to the network. Connect the QGE Ethernet port to the network of your viewing device.
3.
Connect power to the QGE 100 (see "Connecting Power to the QGE 100," below).
4.
NOTE: Always power up the QGE 100 before the source computer; otherwise, the QGE does not correctly detect
the mouse, keyboard, and monitor.
Power on the source computer.
5.
CAUTION: Always power on the source computer and QGE 100 after making all connections between them.

Connecting Power to the QGE 100

Plug the mini DIN connector of the provided 12 VDC power supply into the rear panel connector labeled "12V DC."
1.
Connect the provided power cord between the IEC connector of the power supply and an AC outlet. (The QGE 100
2.
power supply is double-insulated and does not require an earth to ground connection.)
Elite Videowall Processor, computer, or other viewing device over an IP network. The viewing
®
3 4 5
PERIPH PC COM 1
OUT
DVI-I
9 8 7
d
) to the PS/2 mouse connector of the source computer.
h
) to the PS/2 keyboard connector of the source computer.
f
) monitor port of the QGE to the monitor port of the source computer.
Reserved for
a
Future Use
b
c
COM 2
Peripheral mouse connector
d
e
IN
f
g
DVI-I
h
i
6
c
Product Category
Power connector
Ethernet port
PC mouse connector
COM1 serial port
DVI-I In monitor port
DVI-I Out loop-through connector
PC keyboard connector
Peripheral keyboard connector
in the diagram above).
i
).
g
) of the QGE.
