ATTENTION:
• All structural steps and electrical installation must be performed by qualified personnel in accordance with local and
national building codes and electrical codes.
• Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualifié, conformément aux codes
du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.
1. Disconnect power from all equipment.

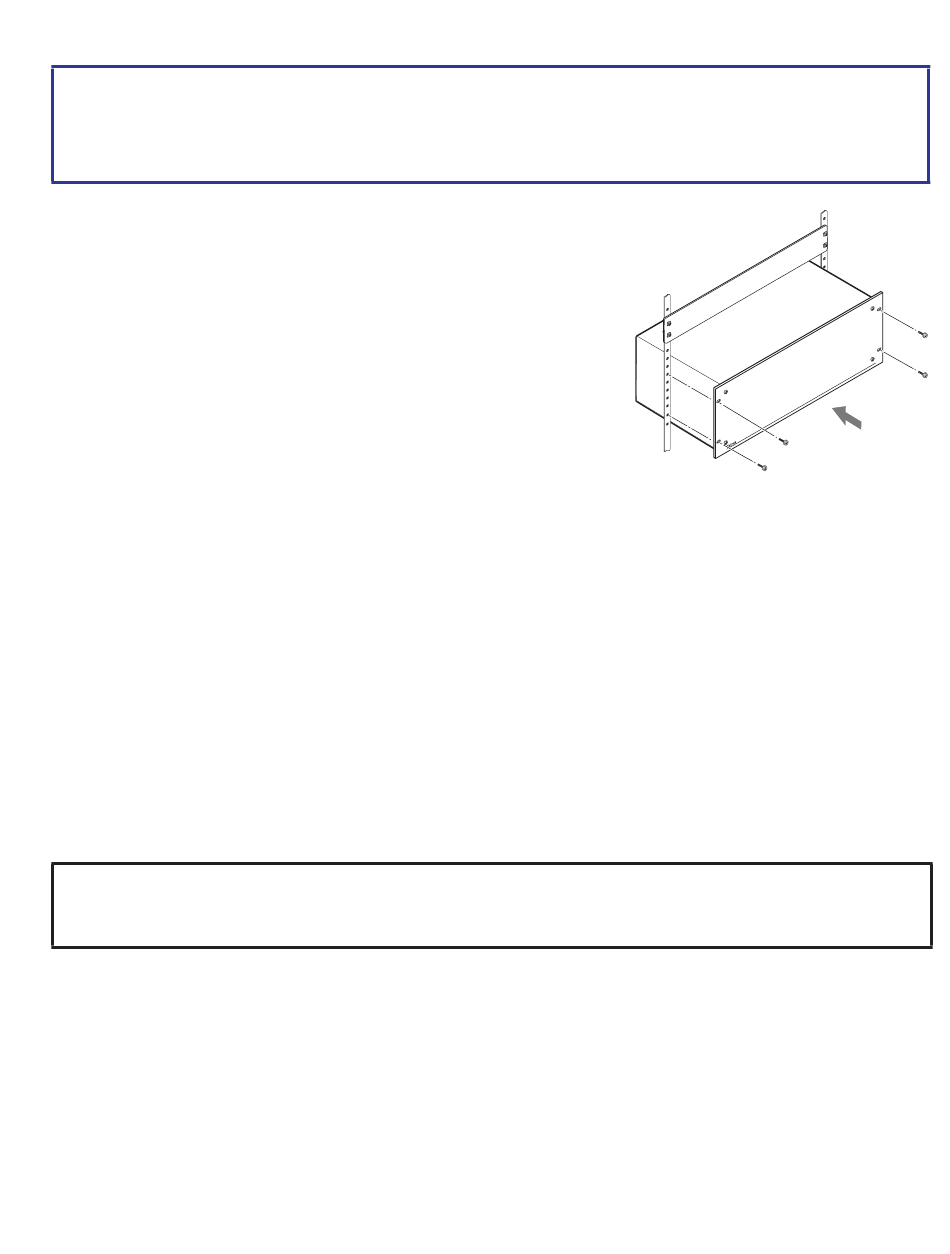

2. (Optional) Mount the unit to a rack using the supplied screws (see the
image at right).
3. Connect the video inputs and outputs. Connect sources and output devices
to installed input and output cards:
Inputs:
• HDMI — Connect HDMI sources to connectors on the installed HDMI input
cards. Secure each HDMI device cable to the connector with a provided
LockIt HDMI Cable Lacing Bracket.
®
• IN SMD 100 — Connect the LAN ports on installed IN SMD 100 input cards
to a network for streaming sources (Quantum Ultra and Quantum Ultra II
only).
•
FOX3 — Connect FOX3 transmitters to the fiber connectors on the
IN4FOX3 card (Quantum Ultra II only).
Outputs:
• HDMI — Connect HDMI displays to connectors on HDMI output cards. Secure each HDMI device cable to the connector
with a provided LockIt HDMI Cable Lacing Bracket.
• DTP — Connect DTP receivers to installed DTP output cards (Quantum Ultra and Quantum Ultra II only).
• FOX3 — Connect FOX3 receivers to the fiber outputs on the OUT4FOX3 cards (Quantum Ultra II only).
4. Connect a control device — For remote control, connect a control device or a computer to:
• The RJ-45 LAN A to enable configuration of the Quantum Ultra Series device via SIS commands, VCS, or EMS.
•
(Optional) The USB mini B Config connector to enable configuration and control via SIS commands or VCS.
•
(Optional) The 3-pole captive screw RS-232 connector to enable serial control via SIS commands.
5. Connect power to the Quantum Ultra or Ultra II primary and redundant (optional) IEC connectors.
6. Power on the unit and all connected devices.
7. Download and install VCS on your computer.
8. Configure sources, displays, EDID, and presets for the videowall using VCS (see
on page 5).
NOTE:
Figure 1 on the next page shows the rear panel of a Quantum Ultra 610. The Quantum Ultra II 610 rear panel
is identical except for IEC C20 AC connectors and the product name in the upper-left corner. The Quantum Ultra and
Ultra II 305, Ultra Connect 84, and Ultra Connect 128 have similar rear panels except they are 3U high, have five card slots,
and have no redundant power connector.
