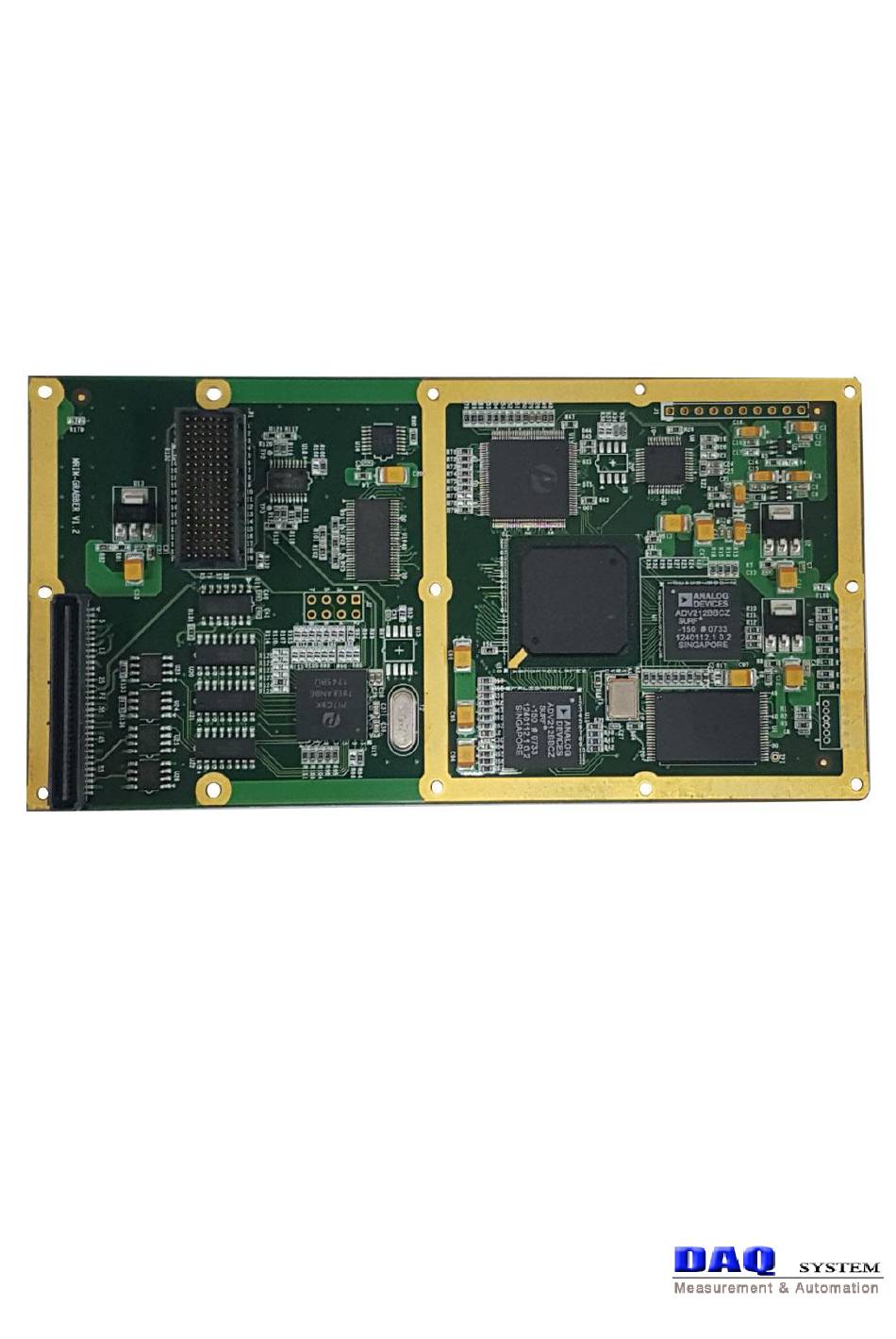

XMC-FRM01
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system XMC-FRM01
Summary of Contents for DAQ system XMC-FRM01
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
XMC-FRM01 User’s Manual Contents 1. Introduction ----------------------------------------------------------------------- 2. XMC-FRM01 Board Function 2-1 Function Description ---------------------------------------------------------------------- 2-2 Connector Pin out 2-1-1 P1 Connector ----------------------------------------------------------------- 3-3-2 P2 Connector ------------------------------------------------------------------- 3. Installation 4-1 Product Contents ----------------------------------------------------------------------- 4-2 Installation Process ----------------------------------------------------------------------- 4. Sample Program... -
Page 3: Introduction
XMC-FRM01 User’s Manual 1. Introduction In case of XMC-FRM01, FPGA Core Logic is in charge of overall control. Main functions include frame data reception, LVDS data reception, serial communication, video simultaneous display and storage. Camera Link Receiver Camera Link LVDS Receiver... -
Page 4: Xmc-Frm01 Board Function
XMC-FRM01 User’s Manual 2. XMC-FRM01 Board Function 2-1 Function Description FPGA Core Logic is in charge of overall control. FPGA core logic is programmed using JTAG, and the logic program is saved in FPGA Logic and loaded when power is applied. -
Page 5: Connector Pin Out
XMC-FRM01 User’s Manual (7) Regulator : U1, U2, U13 It provides 1.0V / 1.8V / 3.3V power supply for the board. (8) Connector : P1, P2 XMC-FRM02 I / O connector. 2-2 Connector Pin-out 2-2-1 P1 connector It is an input / output connector that provides PCI Express x1 signal line. - Page 6 XMC-FRM01 User’s Manual No Connection No Connection Ground Ground No Connection No Connection Ground Ground PE_CLK Reference Clock + XMC_WAKE# Wake Up PET0# Lane 0 Transmit - PET1# Lane 1 Transmit + Ground Ground No Connection No Connection Ground Ground...
-
Page 7: P2 Connector
XMC-FRM01 User’s Manual MVMRO No Connection No Connection No Connection No Connection No Connection No Connection No Connection 2-2-2 P2 connector It is mainly an input / output connector that provides camera link, LVDS signal, and serial communication signal line. It uses 1.0mm Free Height (FH) Receptacle Connectors with SMT (Surface Mount Technology). - Page 8 XMC-FRM01 User’s Manual C4_TXD RS-232 Transmit Data C4_RXD RS-232 Receive Data Ground Ground C5_TXD RS-232 Transmit Data C5_RXD RS-232 Receive Data No Connection No Connection Ground Ground C8_TXDP RS-422 Transmit C7_RXDP RS-422 Receive Data Data C8_TXDN RS-422 Transmit – C7_RXDN...
-
Page 9: Installation
XMC-FRM01 User’s Manual 3. Installation 3-1 Product Content Before installing the board, make sure that the package contents are correct. Product Contents 1. XMC-FRM01 Board 2. CD (Driver/Manual/API/Sample source etc.) 3-2 Installation Process 보드의 사용환경은 Windows 2000 SP4 이상, Windows XP SP1 이상에서 사용되어야 한다. 먼... - Page 10 XMC-FRM01 User’s Manual 2. Select Driver from the enclosed CD and click the Next button. 3. Click the Next button. It indicates that the installation process is proceeding as shown below.
- Page 11 XMC-FRM01 User’s Manual 4. When the installation is completed normally, it is shown in the figure below. 5. When the installation is complete, check if the driver is installed normally in the following way. 6. In My Computer -> Properties -> Hardware -> Device Manager, check if the Multifunction...
- Page 12 XMC-FRM01 User’s Manual 7. If it appears as shown in the figure below, the installation has been completed normally. The above picture shows the screen where the XMC-FRM01 board is normally installed in the PC. (Check the red circle) (Note) XMC-FRM01 board is registered as PCIe-FRM09 device to maintain compatibility with the existing PCIe-FRM11 board.
-
Page 13: Sample Program
XMC-FRM01 User’s Manual 4. Sample Program The TestApp folder on the CDROM supplied with the board provides a sample program "FrmTest" for easy use of the board. First, "FrmTest.exe" displays the frame data in hexadecimal value and stores it in the memory or hard disk to use the necessary frame data for the developers. It is an executable file that shows. -
Page 14: Image Frame Function
XMC-FRM01 User’s Manual 4-1 Image Frame Function (1) Resolution Selection It selects according to the input resolution. The resolutions that can be set by the user are 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280x1024,1600 x 1200, 1920 x 1080, 1920 x 1200, 2048 x1536, 2560 x 2048. -
Page 15: Dio Function
XMC-FRM01 User’s Manual 4-2 DIO Function (1) DIO Read Press this button to read the data on General Purpose I/O port. Reading Data are recorded the editor box beside the button. (2) DIO Write Press this button to write the data on General Purpose I/O port. You can directly write the data in the editor box beside the button. -
Page 16: Appendix
XMC-FRM01 User’s Manual Appendix Board Size The external sizes of the board are as follows. For detailed dimensions, please contact the person in charge. -
Page 17: Repair Regulations
⑥ Products whose serial number has been changed or removed intentionally ⑦ If DAQ SYSTEM determines that it is the customer's fault for other reasons (5) Shipping costs for returning the repaired product to DAQ SYSTEM are the responsibility of the customer. -
Page 18: References
1. Specification of Camera Link Interface Standard for Digital Cameras and Frame Grabbers -- Camera Link committee 2. PCI Local Bus Specification Revision2.1 -- PCI Special Interest Group 3. AN201 How to build application using API -- DAQ system 4. AN312 XMC-FRM01 API Programming -- DAQ system... - Page 19 XMC-FRM01 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
