EMB-OPT01
User Manual
Version 1.1
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system EMB-OPT01
Summary of Contents for DAQ system EMB-OPT01
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
EMB-OPT01 User’s Manual Contents 1. EMB-OPT01 Introduction ----------------------------------------------------------- 2. EMB-OPT01 Function ------------------------------------------------------------- 2-1 J1 Connector (Mini MDR26) ------------------------------------------------------------- 2-2 J2 Connector (Mini MDR-26) -------------------------------------------------------------- 2-3 J4 Connector ------------------------------------------------------------- 2-4 SW1 Switch ------------------------------------------------------------- 2-5 SW3 Switch ------------------------------------------------------------- 2-6 CN1, CN2(SFP) Connector... -
Page 3: Emb-Opt01 Introduction

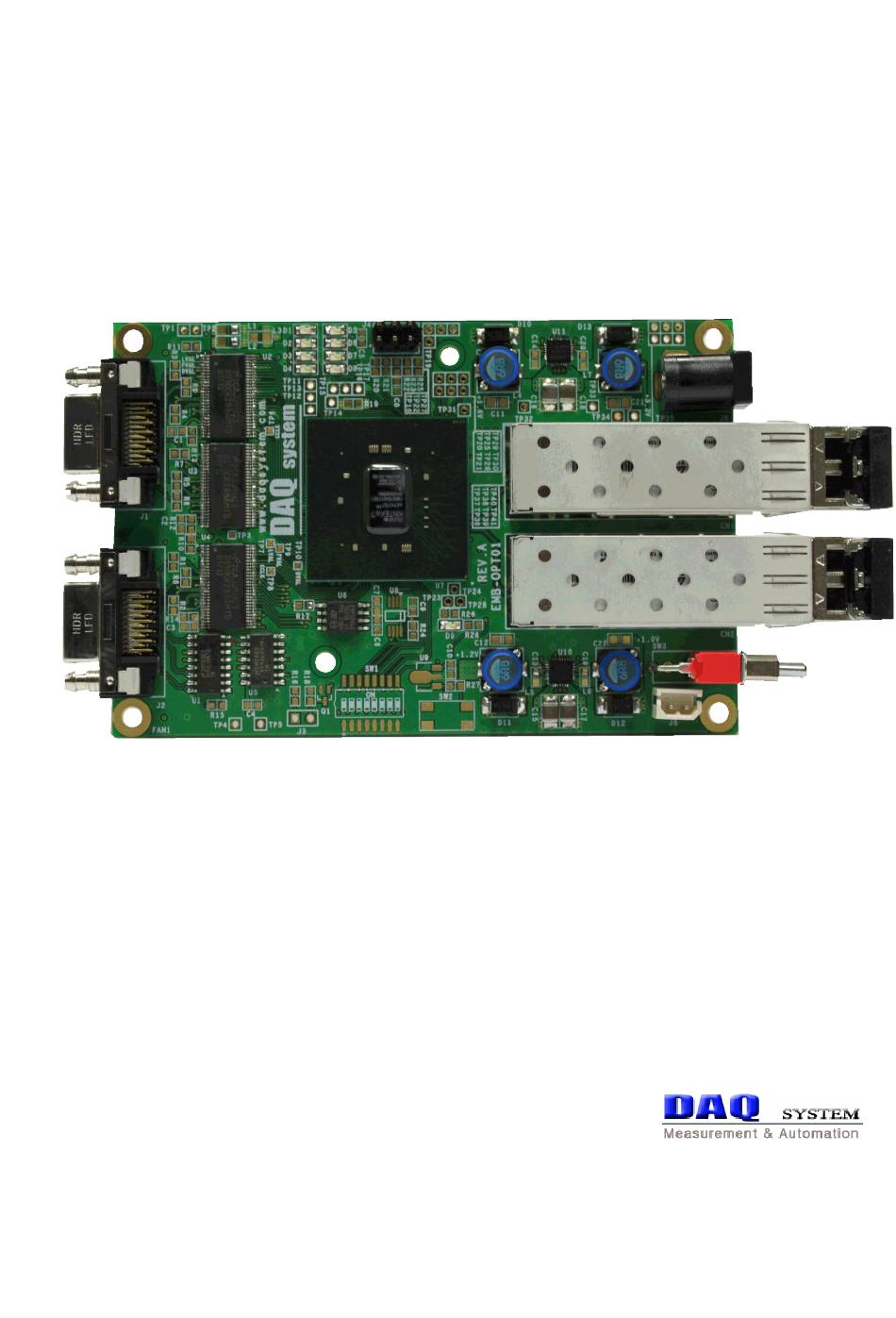

EMB-OPT01 User’s Manual 1. EMB-OPT01 Introduction The EMB-OPT01 board converts the image signal from the Camera Link camera into light and transmits it to the PCIe-OPT01 board, which is the light receiving board. Depending on the camera link connection, 1 Base or 1 Full Camera Link configuration is supported. - Page 4 EMB-OPT01 User’s Manual Reference) The most important factor in selecting an optical cable is the communication distance. A multimode cable provides a maximum transmission distance of 2Km, and a single- mode cable basically provides a transmission distance depending on the type of equipment.
- Page 5 EMB-OPT01 User’s Manual Note) Two Base Camera and 10Tap support are planned in the future.
-
Page 6: Emb-Opt01 Function

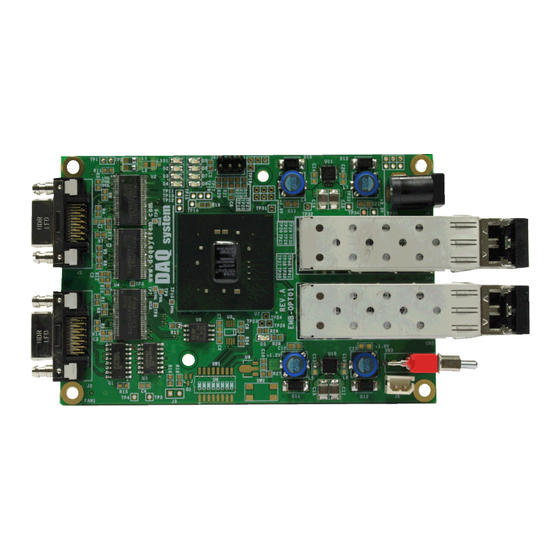

EMB-OPT01 User’s Manual 2. EMB-OPT01 Function Each name and function description of EMB-OPT1 is as follows. EMB-OPT01 Board [Figure 2-1. EMB-OPT01 Layout] [Table 1. EMB-OPT01 main function description] Name Description J1, J2 Mini-MDR26 Camera Link Connector LVDS Differential Line Driver... -
Page 7: J1 Connector (Mini Mdr26)
Camera Link standard, so please refer to the Camera Link standard document for details. Frame Grabber Inner shield Inner shield YCLK- YCLK+ TERMI+ TERMI- DRTX+ DRTX- DRRX- DRRX+ CC1- CC1+ CC2+ CC2- CC3- ZCLK- ZCLK+ CC3+ CC4+ CC4- Inner shield Inner shield [Figure 2-2. EMB-OPT01 J1 Connector Pin-out]... - Page 8 EMB-OPT01 User’s Manual [Table 2. J1 Connector] Name Description Remark Inner Shield Cable shield Z3+/CC4- Camera link LVDS receive data11+ / CC4- ZCLK+/CC3+ Camera link LVDS receive clock+ / CC3+ Z2+/CC2- Camera link LVDS receive data10+ / CC2- Z1-/CC1+ Camera link LVDS receive data9+ / CC1+...
-
Page 9: J2 Connector (Mini Mdr-26)
Link standard, so please refer to the Camera Link standard document for details. Frame Grabber Inner shield Inner shield Xclk- Xclk+ SerTC+ SerTC- SerTFG- SerTFG+ CC1- CC1+ CC2+ CC2- CC3- CC3+ CC4+ CC4- Inner shield Inner shield [Figure 2-3. EMB-OPT01 J2 Connector Pin-out]... - Page 10 EMB-OPT01 User’s Manual [Table 3. J2 Connector] Name Description Remark Inner Shield Cable shield CC4- Camera Control output 4- CC3+ Camera Control output 3+ CC2-- Camera Control output 2- CC1+ Camera Control output 1+ SerTFG+ Serial to Frame grabber +...
-
Page 11: J4 Connector
EMB-OPT01 User’s Manual J4 Connector 12V DC External Power CONNECTER (DC-005(2.0)) [Figure 2-4. J4 Connector] SW1 Switch It is a camera setup mode selection switch. [Figure 2-5. SW1] Switch #1 : Tap Setup. ON : 8 Tap (Over 40bit) OFF : 1/2/3/4 Tap (Under 32bit) - Page 12 EMB-OPT01 User’s Manual Camera Frame Grabber Cable PORT PORT G, H G, H Transmitter Receiver PORT PORT D, E, F D, E, F Frame Grabber Camera Cable PORT PORT A, B, C A, B, C Camera Camera Control 4 Control 4...
-
Page 13: Sw3 Switch
2-6 CN1, CN2 (SFP) Connector In the case of EMB-OPT01, an SFP (Small Form Factor Pluggable) connector is used as a Fiber-Transmission Transceiver device. The SFP transceiver is designed to support various optical transmissions such as SONET, Gigabit Ethernet, and Fiber Channel. It supports hot- pluggable transceiver and can be connected to network device motherboard with fiber or copper networking cable. - Page 14 EMB-OPT01 User’s Manual [Table 4. CN1/CN2 SFP Connector] Name Description Remark VeeT Transmitter Ground TxFault Transmitter Fault TxDisable Transmitter Disable Serial Interface Data Line Serial Interface Clock MOD-ABS Module Absent, connected to VeeT or VeeR Rx Rate Select Open or Low = 2.125 or 4.25 Gb/s Fibre Channel (Low Bandwidth) High = 8.5 Gb/s Fibre Channel (High Bandwidth)
-
Page 15: Fiber Cable
Optical connectors include LC, ST, MTRJ, SC, FC, and MU types, but EMB-OPT01 mainly uses multimode LC type as shown in [Figure 2-10]. - Page 16 EMB-OPT01 User’s Manual (1) Single Mode LC Type (2) Multi Mode LC Type [Figure 2-10. Cable type according to transmission mode] Reference) The most important factor in selecting an optical cable is the communication distance. A multimode cable provides a maximum transmission distance of 2Km, and a single- mode cable basically provides a transmission distance depending on the type of equipment.
- Page 17 EMB-OPT01 User’s Manual Fiber Cable Connection Channel 1 Channel 0 Caution) Be careful not to twist the cable when connecting it to the SFP cage.
-
Page 18: Appendix
EMB-OPT01 User’s Manual Appendix A-1 Board Size The external sizes of the board are as follows. (109 x 69mm) < Top View >... -
Page 19: Repair Regulations
(3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 20 EMB-OPT01 User’s Manual...
- Page 21 EMB-OPT01 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
