PCIe-LK02 & PCIe-LK20
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system PCIe-LK02
Summary of Contents for DAQ system PCIe-LK02
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
Contents 1. PCIe-LK02 & PCIe-LK20 Introduction ----------------------------------------- 1-1 PCIe-LK02 & PCIe-LK20 Features ------------------------------------------------------------ 1-2 Applications -------------------------------------------------------------------------- 2. PCIe-LK02 & PCIe-LK20 Board Description --------------------------------- 2-1 PCIe-LK02 & PCIe-LK20 Connection -------------------------------------------------------- 2-2 P1 Connector Pin-Out ----------------------------------------------------------------------- 2-2 CN1 & J2 Connector Pin-Out... -
Page 3: Pcie-Lk02 & Pcie-Lk20 Introduction

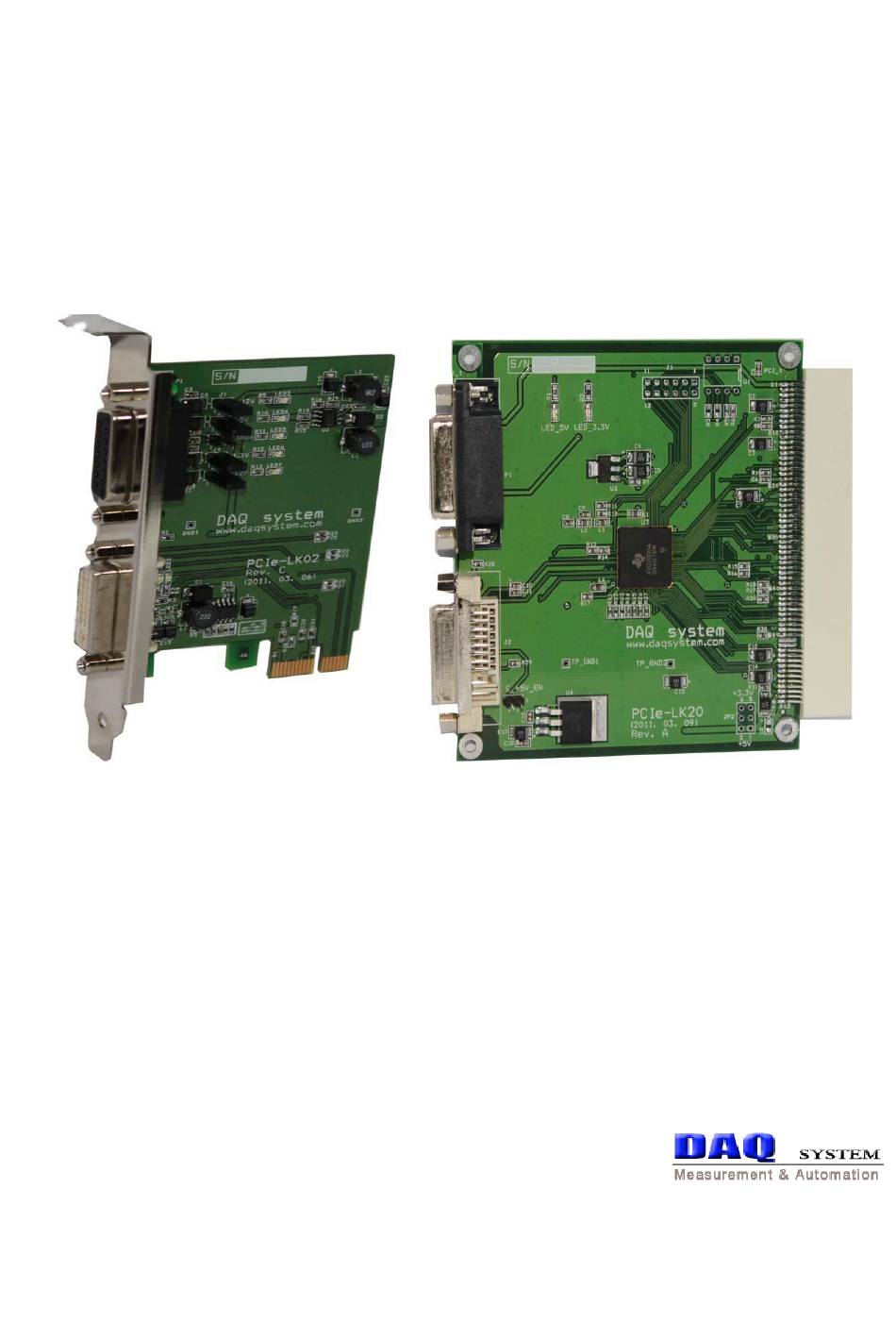

1. PCIe-LK02 & PCIe-LK20 Introduction The PCIe-LK02 PCI Express card is a set of PCIe-LK20 board and is used to interface external PCI products in a general PC. It is a board that supplies the power and PCI Express signals of the board and allows PCI products to interface with a PC without a driver. -
Page 4: Pcie-Lk02 & Pcie-Lk20 Features
PCIe-LK02 & PCIe-LK20 User’s Manual [Figure 1-2. PCIe-LK20 & PCI Product Connection] 1-1 PCIe-LK02 & PCIe-LK20 Features x1 PCI Express link host interface Compliant with PCI Express Base Specification 1.1 Supply of various power sources (±12V, 3.3V, 3.3V AUX, 5V) ... -
Page 5: Pcie-Lk02 & Pcie-Lk20 Board Description
PCIe-LK02 & PCIe-LK20 User’s Manual 2. PCIe-LK02 & PCIe-LK20 Board Description PCIe-LK02 supplies PCI Express signals through the DVI (CN1, J2) connector, which is a low-cost connector, and supplies various power sources (±12V, 3.3V, 3.3V AUX, 5V) through the DB-15(P1) connector. -
Page 6: P1 Connector Pin-Out
PCIe-LK02 & PCIe-LK20 User’s Manual 2-2 P1 Connector Pin-Out The various power sources (±12V, 3.3V, 3.3V AUX, 5V) of the PCIe-LK02 are transferred to the P1 connector of the PCIe-LK20 board through the P1 (DB-15) connector. The PCIe-LK20 board receives this power and uses it. -
Page 7: Cn1 & J2 Connector Pin-Out
PCIe-LK02 & PCIe-LK20 User’s Manual 2-3 CN1 & J2 Connector Pin-Out These connectors transmit the Express PCI signal of PCIe-LK02 to the J2 (DVI) connector of the PCIe-LK20 board through the CN1 (DVI) connector. The PCIe-LK20 board receives this signal and converts it into a PCI signal to provide an interface with external PCI products. - Page 8 PCIe-LK02 & PCIe-LK20 User’s Manual [Table 2. CN1 & J2 Connector Description] Name Description Remark Negative Receiver Positive Receiver Ground No Connection No Connection PERST# Power Stable Signal WAKE# Wake-Up System No Connection Negative Transceiver Positive Transceiver Ground No Connection...
-
Page 9: Appendix
PCIe-LK02 & PCIe-LK20 User’s Manual Appendix A-1 PCIe-LK02 Board Size The size of the board is as follows. (67 x 74.5mm) 74.5 A-2 PCIe-LK20 Board Size The size of the board is as follows. (108 x 100mm) -
Page 10: Repair Regulations
(3) All DAQSYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 11 PCIe-LK02 & PCIe-LK20 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
