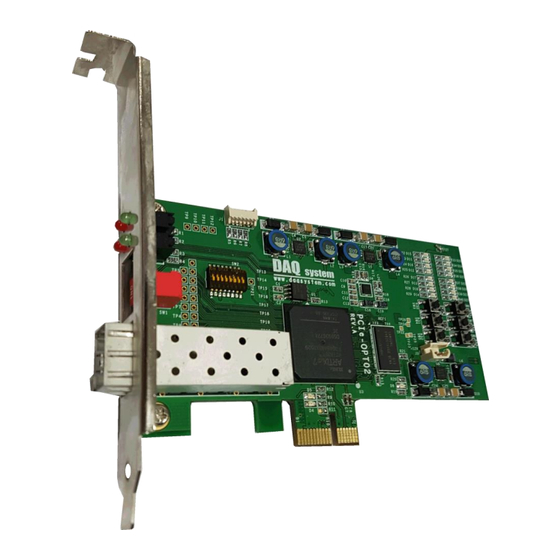

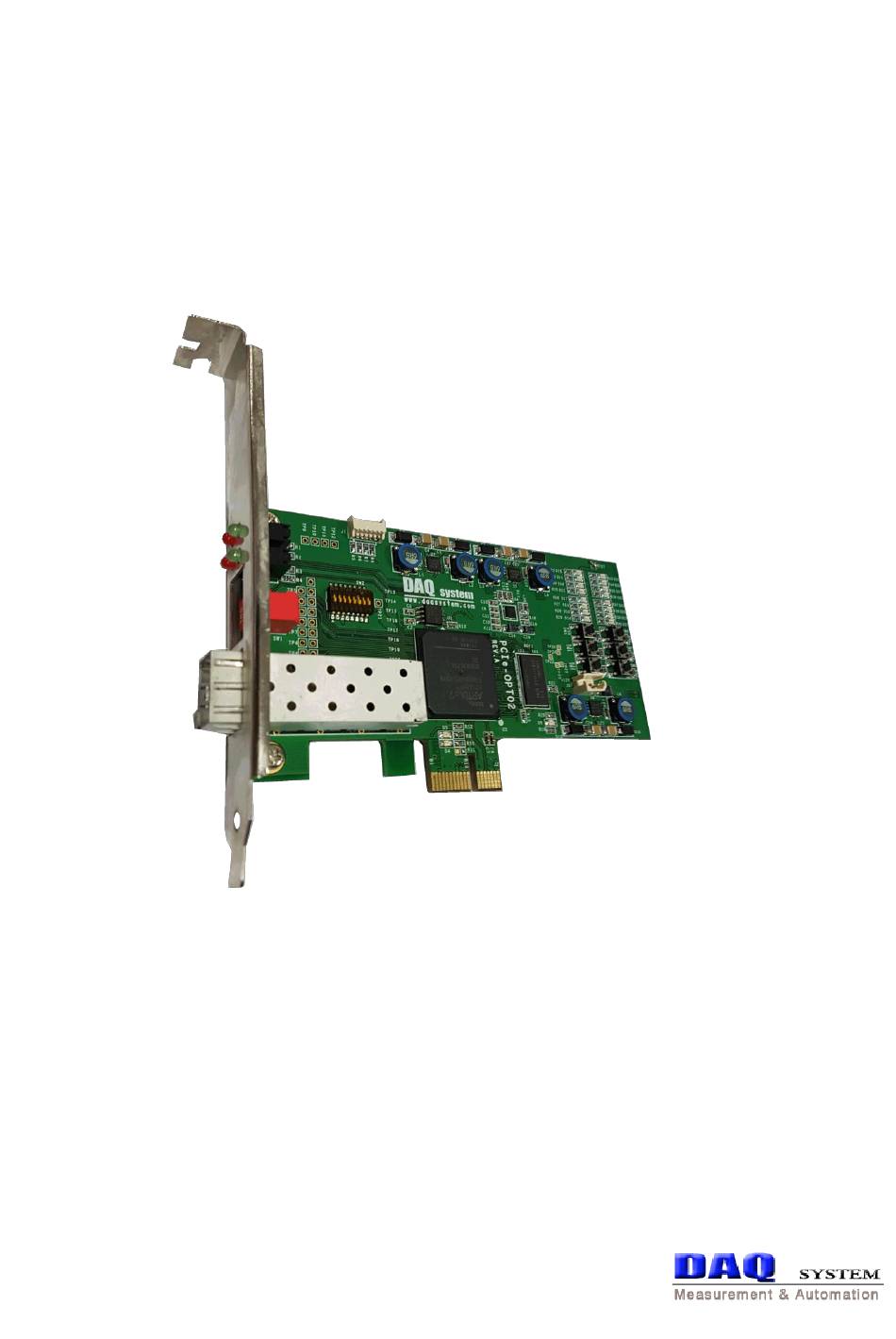

PCIe-OPT02
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIe-OPT02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAQ system PCIe-OPT02

Summary of Contents for DAQ system PCIe-OPT02

  • Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.

  • Page 2: Table Of Contents

    PCIe-OPT02 User’s Manual Contents 1. Introduction -------------------------------------------------------------------------- 1-1 Product Features ------------------------------------------------------------------------- 1-2 Product Application ------------------------------------------------------------------------- 2. PCIe-OPT01 Board Description 2-1 PCIe-OPT01 Board Layout ------------------------------------------------------------------- 2-2 SFP(Small Form Factor Pluggable) ------------------------------------------------------- 2-3 Optic Cable ------------------------------------------------------------------- 2-4 Connector Pin out 2-4-1 J3 Connector...

  • Page 3: Introduction

    PCIe-OPT02 User’s Manual 1. Introduction PCIe-OPT02 board is used together with EMB-OPT02 and is an optical reception board that receives optical-transmission data of EMB-OPT02 board and transmits it to the host PC. Acquire images in real time and transfer them directly to system memory. The easy installation method and fast image transfer make it a suitable device to meet the needs of the industry with low cost and high efficiency.

  • Page 4: Product Features

    PCIe-OPT02 User’s Manual 1-1 Product Features Items Description Remark Hardware PC Interface PCI Express 2.0 (GEN2) x1 Operation Power PC slot Video Interface Fiber Own Protocol Feature Companion Board EMB-OPT02 Interface 1 Port SFP On-board Memory 128MB (DDR2) Communication Simultaneous use of Max.

  • Page 5: Product Application

    The operation of the board is controlled by the program API, and the figure below shows the interlocking operation of the board. [Figure 1-1. PCIe-OPT02 Board Usage] [Figure 1-1] shows the connection of the optical transmission board. EMB-OPT02 receives the camera link signal from EMB-OPT02_CA02_M board, converts it to SFP channel and transmits it to PCIe-OPT02.

  • Page 6: Pcie-Opt01 Board Description

    PCIe-OPT02 User’s Manual 2. PCIe-OPT02 Board Description 2-1 PCIe-OPT02 Board Layout [Figure 2-1. PCIe-OPT01 Layout] (1) SFP (CN1) : SFP(Small Form Factor Pluggable) cage. (2) FPGA (U3) : All functions of the board are controlled through this FPGA Logic. (3) DDR Memory (REF1) : Save image frame.

  • Page 7: Sfp(Small Form Factor Pluggable)

    PCIe-OPT02 User’s Manual 2-2 SFP(Small Form Factor Pluggable) In the case of PCIe-OPT02, SFP is used as a Fiber-Transmission Transceiver device. The SFP transceiver is designed to support various optical transmissions such as SONET, Gigabit Ethernet, and Fiber Channel. It supports hot-pluggable transceiver and can be connected to network device motherboard with fiber or copper networking cable.

  • Page 8: Optic Cable

    PCIe-OPT02 User’s Manual High = 8.5 Gb/s Fibre Channel (High Bandwidth) VeeR Receiver Ground VeeR Receiver Ground Receiver Data Receiver Inverted Data VeeR Receiver Ground VccR Receiver Power(3.3V) VccT Transmitter Power(3.3V) VeeT Transmitter Ground Transmitter Data Transmitter Inverted Data VeeT Transmitter Ground (Note) For more information, refer to Camera Link Standard Specification.
  • Page 9 PCIe-OPT02 User’s Manual [Figure 2-3. Transmission Mode] (1) Single Mode LC Type (2) Multi Mode LC Type [Figure 2-4. Cable Type]...
  • Page 10 PCIe-OPT02 User’s Manual Be careful when connecting the board with a 2Core optical cable as shown in the figure below. Optic Cable Connection Caution) Be careful not to twist the cable when connecting it to the SFP cage.

  • Page 11: Connector Pin Out

    You can use the Express PCI power supply 12V by connecting it to the external connector (J10). 2-4-2 SW1 Switch PCIE-OPT02 board is designed to use up to 4 PCIe-OPT02 boards simultaneously in one system (PC). Each board classification can be set through the 4-pin DIP switch in the board. [Figure 2-5. SW1 switch] [Table 2.

  • Page 12: Installation

    The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the PCIe-OPT02 board into the PCI Express Slot, and turn on the PC's power. When the “Start New Hardware Wizard” window opens as shown below, select it...
  • Page 13 PCIe-OPT02 User’s Manual 1. Select as below and click the Next button 2. Select Driver from the enclosed CD and click the Next button.. Select the folder where the drivers are located. Click “OK”. Click “Next”. The necessary files are “pcie_opt01.inf” and “pcie_opt01.sys” in the driver polder.
  • Page 14 PCIe-OPT02 User’s Manual 3. Click the Next button. It indicates that the installation process is proceeding as shown below. 4. Click the Next button.
  • Page 15 PCIe-OPT02 User’s Manual When the installation is complete, check whether the driver is installed normally in the following way. 6. . In My Computer -> Properties -> Hardware -> Device Manager, check if the Multifunction Adaptor-> “PCIe-OPT01” is installed. 7. If it appears as shown in the figure below, the installation has been completed normally.

  • Page 16: Sample Program

    PCIe-OPT02 User’s Manual 4. Sample Program In the Exe folder of the CDROM provided with the board, a sample program “FrameTest.exe” is provided for easy use of the board. By displaying Frame Data as hexadecimal values, it is stored in memory or hard disk so that developers can utilize the frame data needed.

  • Page 17: Board Function

    PCIe-OPT02 User’s Manual Each menu bar is described in the following. The menu bar is not mentioned here is not to use features. (Note) Board # & Channel # slelction “Device Open” click  In the "Data mode", select the format for the camera ...

  • Page 18: Image Frame Function

    PCIe-OPT02 User’s Manual 4-2 Image Frame Function (1) “Dev. Init” button Press this button to initialize the function of receiving image frame data. It is performed only once after power is applied to the board. (2) “Dev. Close” button It stops a selected board device.
  • Page 19 PCIe-OPT02 User’s Manual (9) “Read” button Press this button to read the image frame data of the board to your PC(Hex Value). If image frame data is not saved on the board, you must wait until the end of data collection.
  • Page 20 PCIe-OPT02 User’s Manual (12) “Data Mode” Selection Video Data Mode can be selected from 8bit, 16bit YUV, 24Bit BGR, 8Bit Bayer, and 10Bit Bayer. “Half tone” : Select Half tone mode. “5’th Skip” : Skip the 5th byte on selection. For example, if the input data is a 10-bit Bayer, 8 bits are stored in the 5th byte, each of which is 1 bit except for RGB and 3 bytes and 1 byte.

  • Page 21: Uart Function

    PCIe-OPT02 User’s Manual 4-3 UART Function (1) “Init” selection Initialize the UART. (2) “Close” button Close the UART. (3) “Baud” selection Select the Baud Rate (9600, 19200, 38400, 57600, 115200 Baud Rate). (57600,115200 is currently not supported.) (4) “Send” button Send a UART data written next to the field.

  • Page 22: Miscellaneous Function

    PCIe-OPT02 User’s Manual 4-4 Miscellaneous Function (1) “CC Out” button You can select a CC(camera control) signal among CC1 ~ CC4. (2) “Auto Save” If the box clicks, image data is stored as a BMP or JPEG file below the specified D:\Image (or user-selected folder).

  • Page 23: Appendix

    PCIe-OPT02 User’s Manual Appendix Board Size The external sizes of the board are as follows. For detailed dimensions, please contact the person in charge.

  • Page 24: Repair Regulations

    ⑥ Products whose serial number has been changed or removed intentionally ⑦ If DAQ SYSTEM determines that it is the customer's fault for other reasons (5) Shipping costs for returning the repaired product to DAQ SYSTEM are the responsibility of the customer.

  • Page 25: References

    PCIe-OPT02 User’s Manual References 1. PCI Local Bus Specification Revision2.1 -- PCI Special Interest Group 2. How to install PCI DAQ Board -- DAQ system 3. AN201 How to build application using API -- DAQ system 4. AN312 PCIe-OPT01 API Programming...
  • Page 26 PCIe-OPT02 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
