NET-FRM01
User Manual
Version 1.3
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system NET-FRM01
Summary of Contents for DAQ system NET-FRM01
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
2. NET-FRM01 Functions 2-1 Block Diagram ------------------------------------------------------------------------ 2-2 Camera Link ------------------------------------------------------------------------ 2-3 Camera Link Cable & Connector ----------------------------------------------------------- 2-4 Camera Link & NET-FRM01 ------------------------------------------------------------ 3. NET-FRM01 Board Description 3-1 NET-FRM01 Layout ------------------------------------------------------------------------ 3-2 Functional Blocks ----------------------------------------------------------------------- 3-3 Connector Pin out... - Page 3 NET-FRM01 User’s Manual 5. Sample Program ---------------------------------------------------------------------- 5-1 Image Frame Function ---------------------------------------------------------------------- 5-2 UART/Status Function ---------------------------------------------------------------------- Appendix A-1 Board Size ---------------------------------------------------------------------- A-2 Repair Regulation ---------------------------------------------------------------------- References ------------------------------------------------------------------------- 35...
-
Page 4: Introduction
The operation of the board is controlled by program API, figure [1-1] shows connection of the system (usually PC). DAQ system provides a sample program to use the board briefly so you can test the API provided insource form, so the user can be used to modify. Please refer to Chapter 5 for a detailed description of this sample program. -
Page 5: Product Features
NET-FRM01 User’s Manual 1-1 Product Features Items Description Remark Hardware PC Interface Ethernet UDP (Use Fixed IP) Operation Power +12VDC/650mA External 12V DC Power (A6-Type : 5.5x2.1mm) Video Interface Base Camera Link Feature Area Scan Camera Pixel Clock : 20 ~ 85MHz... -
Page 6: Net-Frm01 Functions
Clock Rx/Tx [Figure 2-1. NET-FRM01 Block Diagram] Programming FPGA Core Logic is performed via the JTAG interface. The logic program of the FPGA is saved in a flash ROM, it is located on the board and loaded at the power-up time. -
Page 7: Camera Link
NET-FRM01 User’s Manual 2-2 Camera Link Camera Link is a communication interface for use in a vision application development. In the past, the camera manufacturer and Frame Grabber manufacturers use their own standard connectors and cables. This has caused a lot of confusion and increased costs to users. In order to... - Page 8 NET-FRM01 User’s Manual [Figure 2-2. Base Camera Link Diagram]...
-
Page 9: Camera Link Cable & Connector
NET-FRM01 User’s Manual 2-3 Camera Link Cable & Connector The connection between the camera link cameras and NET-FRM01 board uses the 26 Pin Mini MDR (Mini D Ribbon) cable. Camera Link cable consists of twin-axial shielded cable and 2 Mini MDR 26-male plug. -
Page 10: Camera Link & Net-Frm01
(Frame Valid, Line Valid, Data Valid, and a space) for each specification through the Channel Link chip in NET-FRM01. In addition, a clock signal is created with one LVDS to synchronize the signal between the camera and NET-FRM01, and the remaining camera control signals and communication signals are converted into general TTL signal levels and used. - Page 11 NET-FRM01 User’s Manual The figure below shows a circuit that uses the serial input signal input through the camera-link cable as a general input on the NET-FRM01 board. [Figure 2-7. Serial Communication LVDS Digital Circuit]...
-
Page 12: Net-Frm01 Board Description

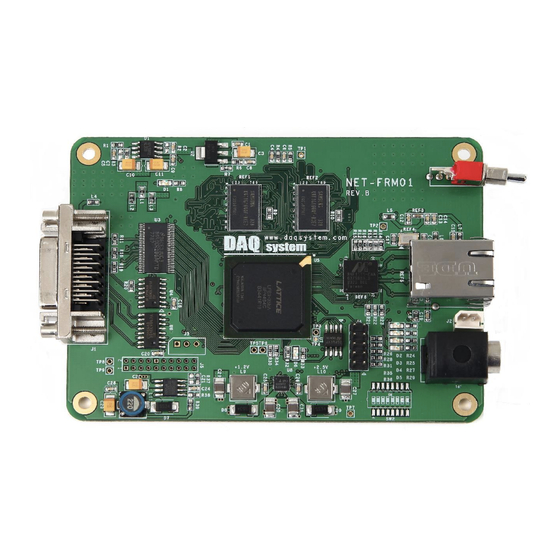

NET-FRM01 User’s Manual 3. NET-FRM01 Board Description In this chapter, the primary functions of the board are described briefly. For more information, refer to the device specification. 3-1 NET-FRM01 Layout NET-FRM01 Board REF1 REF2 123 789 123 789 REF4 www.daqsystem.com... -
Page 13: Functional Blocks
NET-FRM01 User’s Manual 3-2 Functional Blocks The functions of each board are briefly explained. Please refer to the component specifications for detailed features. (1) FPGA : U5 All of the functions are controlled by the logic program of the FPGA. -
Page 14: Connector Pin Out
3-3 Connector Pin-out This chapter will be described about the connector and Jumper that NET-FRM01 used. The NET-FRM01 board is equipped with RJ-45 connector REF1 for Network connection and J1 connector for external Image Frame connection (Camera Link Signals). 3-3-1 REF(RJ45) Connector When viewed from the front of the cable is connected to PIN of RJ-45 connectors, it is as [Figure 3-2]. -
Page 15: J1(Mdr) Connector
All of the pin functions are based on the Camera link standard, so please refer to the Camera link standard document for more description and information. Frame Grabber Inner shield Inner shield Xclk- Xclk+ SerTC+ SerTC- SerTFG- SerTFG+ CC1- CC1+ CC2+ CC2- CC3- CC3+ CC4+ CC4- Inner shield Inner shield [Figure 3-3. NET-FRM01 J1 Connector Pin-out]... - Page 16 NET-FRM01 User’s Manual [Table 2. J1 Connector] Signal Name Description Remark Inner Shield Cable shield CC4- Camera Control output 4- CC3+ Camera Control output 3+ CC2-- Camera Control output 2- CC1+ Camera Control output 1+ SerTFG+ Serial to Frame grabber +...
-
Page 17: J3 Connector
NET-FRM01 User’s Manual 3-3-3 J3 Connector It is an external RS-232 Debug Port [Figure 2-4. J3 Connector (Top View)] [Table 3. J3 PIN-OUT] Name Description U_SPI_MISO Tx (Transceiver Data) U_SPI_MOSI Rx (Receiver Data) Ground 3-3-4 JP1 Connector It is an external 12V DC Jack Power Connector. (HR10-7R-6S-RA) [Figure 2-5. -
Page 18: Installation
NET-FRM01 User’s Manual 4. Installation The NET-FRM01 don’t need a separate device driver because it uses for network. However, it is used by specifying IP(Internet Protocol) address identifier. It is possible to install and use the service on the network Filter Driver. - Page 19 NET-FRM01 User’s Manual In the “Internet Protocol (TCP / IP)” window, the "install ..." is selected and then selects a service. [Figure 4-2. Network Component Type Selection]...
- Page 20 NET-FRM01 User’s Manual Select a "Have Disk…" in the "Select Network Service" and click "Browse (B) ...". You can find a “netsf.ini” file from the provided CD-ROM, and then click OK.
- Page 21 NET-FRM01 User’s Manual “Select Network Service”, and then click the [OK], and requires a check of compatibility.
- Page 22 NET-FRM01 User’s Manual When the driver installation is complete, you can see "DAQ System Filter Driver" as shown below.
-
Page 23: Filter Driver Installation For Win
DAQ System program. If you share a computer or use an office computer, contact your PC's administrator user and ask them to grant administrator... - Page 24 NET-FRM01 User’s Manual In the Local Area Connection Properties window, click “Install (N)…” ” After confirmation, select the service and click “Add (A)…” Select ”. [Figure 4-4. Select Network Function Type]...
- Page 25 NET-FRM01 User’s Manual In “Select Network Service”, “Have Disk (H)…” ” and then “Search (B)… ” Find the “netsf.inf” file in the folder provided and click Open. [Figure 4-5. Select Network Service]...
- Page 26 NET-FRM01 User’s Manual Once the driver installation is complete, you can see that “DAQ System Filter Driver ” is installed as shown in the picture below.
- Page 27 NET-FRM01 User’s Manual If FrameTest.exe executable file doesn’t not perform as firewall, Press the “Control Panel System and Security Windows Firewall Allows the Program through Window Firewall”. You have to permit as shown below “frametest.exe Home/Company(Private)” and “TODO ...
-
Page 28: Network Ip Setup
[Figure 4-7. Internet Protocol (TCP/IP) Property] When you use the NET-FRM01, it is possible not to install the filter driver as section 4.1. However, using the filter driver can be reduced the PC's resources. - Page 29 NET-FRM01 User’s Manual [Figure 4-8. PC CPU Usage - when did not install the filter driver] [Figure 4-9. PC CPU Usage - When install the filter driver]...
-
Page 30: Sample Program
NET-FRM01 User’s Manual 5. Sample Program The CDROM provided with the board provides sample programs to help you easily use the board. Before using the program, you must first set the PC's Internet address as shown in the network settings section of Chapter 4. -
Page 31: Image Frame Function
If it is “0”, it is the normal state. If it is “-1”, the device is not recognized. The left I.P address can be a Local I.P address tailored to the user, excluding 192.168.33.129, which is the I.P address of the NET-FRM01 board. (2) “Dev. Init” button Press this button to initialize the function of receiving image frame data. - Page 32 NET-FRM01 User’s Manual (9) “Auto” toggle When check this box, it displays a video (10) “Display Skip” toggle When press this button, it displays a freeze-frame. (11) “F/R” Frame rates/sec (12) “Pkt Delay” Selection You can select a next Package Delay 0 ~ 15 after transfer Package. The unit is 5us.
-
Page 33: Uart/Status Function
NET-FRM01 User’s Manual 5-2 UART/Status Function (1) “Baud” Selection Select the Baud Rate (9600, 19200, 38400, 57600, 115200 Baud Rate). (2) “Send Serial” button Send data via UART. Data to be transmitted is recorded in the editor box and then transmitted by pressing the button. -
Page 34: Appendix
NET-FRM01 User’s Manual Appendix Board Size The external dimensions of the board are as follows. (For detailed dimensions, please ask the person in charge.) 6.35 80.0 < Top View > < Right Side View >... -
Page 35: Repair Regulation
⑥ Products whose serial number has been changed or deliberately removed ⑦ If DAQ SYSTEM determines that it is the customer's fault due to other reasons (5) Customer is responsible for shipping costs for returning the repaired product to DAQSYSTEM. -
Page 36: References
NET-FRM01 User’s Manual References 1. AN201 How to build application using API -- DAQ system 2. AN342 NET-FRM01 API ver1.1 -- DAQ system... - Page 37 NET-FRM01 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
