PCI-AIO02
User Manual
Version 0.8
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system PCI-AIO02
Summary of Contents for DAQ system PCI-AIO02
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
PCI-AIO02 User’s Manual Contents 1. Introduction 1-1 Product Features ------------------------------------------------------------------------ 1-2 Product Applications ------------------------------------------------------------------------ 2. PCI-AIO02 Block Diagram ------------------------------------------------------------ 3. PCI-AIO02 Board Description 3-1 Board Outline ------------------------------------------------------------------------ Device Features ---------------------------------------------------------------------- Connector and Switch ------------------------------------------------------------------------ 3-3-1 D-Sub 25 Connector (P2) -------------------------------------------------------... - Page 3 PCI-AIO02 User’s Manual 7. Sample Program --------------------------------------------------------------------- 7-1 System Function Description --------------------------------------------------------------- 7-2 ADC Test Function Description -------------------------------------------------------------- 7-3 DAC Test Function Description -------------------------------------------------------------- 7-4 Select Channel Graph ---------------------------------------------------------------------- Appendix A-1 Repair Regulations ----------------------------------------------------------------------- Reference -----------------------------------------------------------------------...
- Page 4 PCI-AIO02 User’s Manual UPDATE HISTORY 2010-10-12 Add API function ADC_StartBufferedRead() ADC_StoptBufferedRead() ADC_GetBufferedData() ADC_GetBufferedDataEx() ADC_SetAvgCounter() API function description supplement ADC_GetData() 2010-11-05 Add API function GetBoardVersion() - Effective from board version 2 2011-06-13 Document Changes 12-bit ADC -> 12/14/16-bit ADC 2011-07-04 6. Add installation...
-
Page 5: Introduction
PCI-AIO02 User’s Manual 1. Introduction PCI-AIO02 is an analog input/output PCI board that supports 16-bit Digital to analog converter (DAC) 8-channel and 12/14/16-bit analog to digital converter (ADC) 8-channel functions. All control of this board is designed as a Field Programmable Gate Array (FPGA), so it is free to reinforce or modify functions and can be easily upgraded to user needs. -
Page 6: Product Applications
PCI-AIO02 User’s Manual 1-2 Product Applications ♦ PCI development and evaluation ♦ Data acquisition ♦ Laboratory instrumentation ♦ Process control systems ♦ Factory automation DAQ System Analog I/O Products Analog Input Analog Output Timer Products Sampling Resolution Channel Range(V) Resolution Channel... -
Page 7: Pci-Aio02 Block Diagram
PCI-AIO02 User’s Manual 2. PCI-AIO02 Block Diagram As shown in [Figure 2-1], PCI-AIO02 is a PCI board that supports input/output of 16-bit DAC 8 channels and 12/14/16-bit ADC 8 channels analog signals. PCI-AIO01 INTERNAL BLOCK External PCI BUS Interface Local Bus... -
Page 8: Pci-Aio02 Board Description

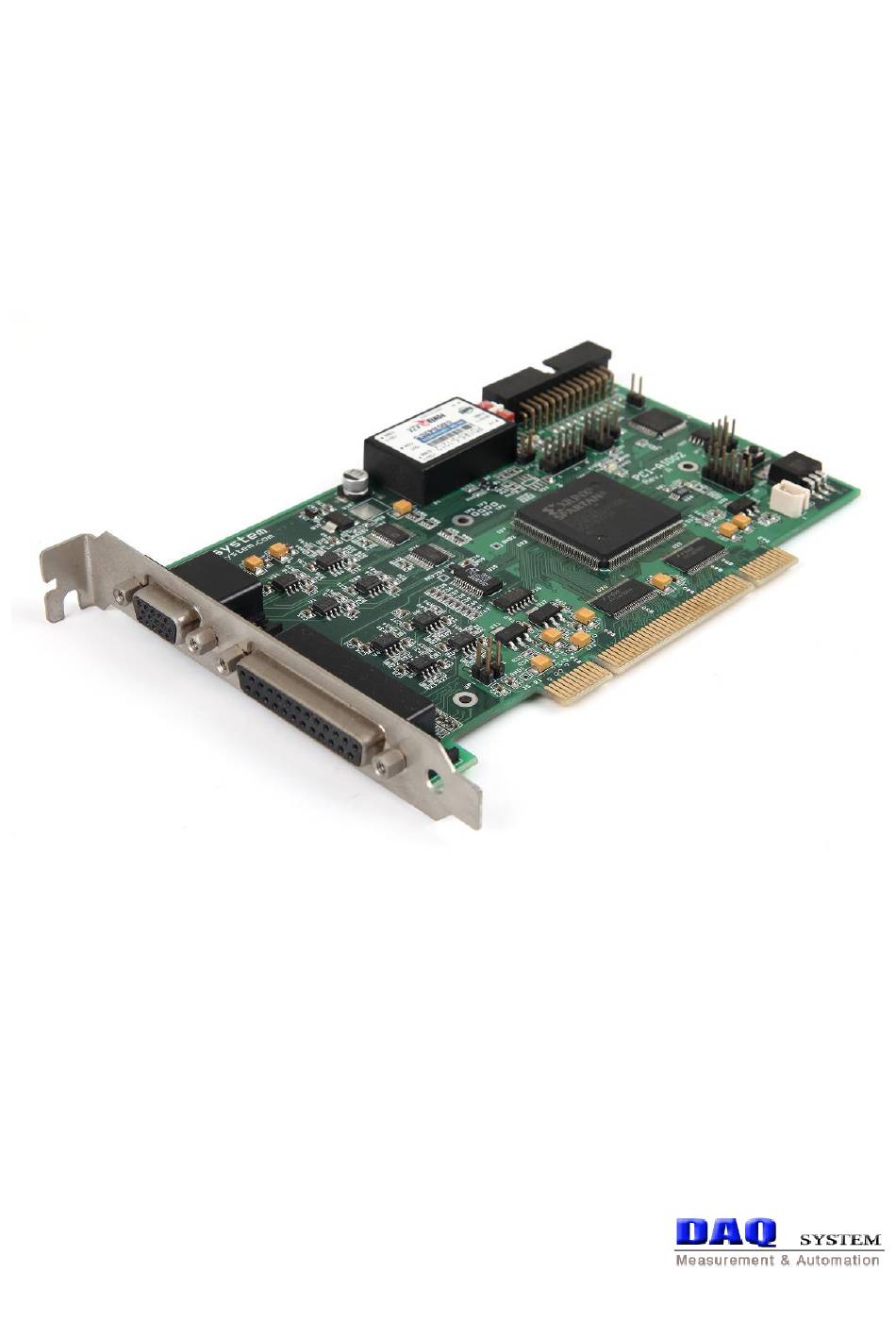

PCI-AIO02 User’s Manual 3. PCI-AIO02 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout [Figure 3-1. PCI-AIO02 Layout] There are 3 LEDs on the board, and the description of each is as follows. -
Page 9: Device Features
PCI-AIO02 User’s Manual 3-2 Device Features (1) D-Sub 16 Pin : P1 DAC 2 channels Output Pin, Synchronous Pin (2) D-Sub 25 Pin : P2 Analog Input Pin, Pin for Trigger (3) FPGA : U22 All functions of the board are controlled through this FPGA Logic. -
Page 10: Connector And Switch
PCI-AIO02 User’s Manual 3-3 Connector and Switch D-SUB 15-pin and 25-pin connectors fixed to standard PCI brackets are used for analog signal output and input, respectively. [Figure 3-2. PCI-AIO02 PCI Bracket]... -
Page 11: D-Sub25 Connector (P2)
ADC IN6 ADC IN5 ADC IN4 ADC IN3 ADC IN2 ADC IN1 ADC IN0 [Figure 3-3. PCI-AIO02 D-sub25 Connector] [Table 1. PCI-AIO02 D-sub 25Pin Connector] Pin No. Name Description Remark ADC IN0 Analog Input Channel 0 +/- 10V Input ADC IN2... -
Page 12: D-Sub 15 Connector (P1)
Trigger External Input 1 Add future features EXT_TRG1 EXT_PACE_OUT1 Digital External Output 1 Add future features 3-3-2 D-Sub 15 Connector (P1) DAC_STEP0_OUT AGND DAC_STEP1_OUT AGND DAC_OUT6 DAC_OUT7 AGND DAC_OUT4 DAC_OUT5 AGND DAC_OUT2 DAC_OUT3 DAC_OUT0 DGND DAC_OUT1 [Figure 3-4. PCI-AIO02 D-sub15 Connector]... -
Page 13: Sw1 Switch
PCI-AIO02 User’s Manual [Table 2. PCI-AIO02 D-sub 15Pin Connector] Pin No. Name Description Remark DAC_OUT0 Analog Output Channel 0 Max +/- 10.8V Output DAC_OUT2 Analog Output Channel 2 Max +/- 10.8V Output DAC_OUT4 Analog Output Channel 4 Max +/- 10.8V Output... -
Page 14: Analog Output Wiring
PCI-AIO02 User’s Manual 4. Analog Output Wiring DAC CH0-7 AGND Actuator [Figure 4-1. Analog Output Wiring] Analog output outputs 8 channels based on AGND through D-sub 15-pin connector. External equipment is used by connecting AGND and DAC channel outputs in pairs. -
Page 15: Analog Input Wiring
PCI-AIO02 User’s Manual 5. Analog Input Wiring Analog input supports single input method and differential input method. ADC CH0-15 AGND Sensor [Figure 5-1. Single Ended Input wiring] In the wiring for a single input, the input reference is the common analog ground (AGND), and there are a total of 8 input channels at this time. -
Page 16: Installation
Tighten the screws between the bracket of the board and the connection part of the case. ⑤ In case of multi-board, repeat from step 3. Connect the PCI-AIO02 board in the PC to an empty PCI slot. When you turn on the power, a new hardware search window will appear. -
Page 17: Driver Installation
The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the PCI-AIO02 board into the PCI Slot, and turn on the PC's power. When the “Start New Hardware Wizard” window opens as shown below, selects it as shown below and click the Next button. - Page 18 PCI-AIO02 User’s Manual If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the figure.
- Page 19 PCI-AIO02 User’s Manual If the installation is completely finished, you can show below message window.
- Page 20 “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-AIO02] If you can see the “PCI-AIO02” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle)
-
Page 21: Sample Program
PCI-AIO02 User’s Manual 7. Sample Program DAQ system provides a sample program to make the user be familiar with the board operation and to make the program development easier. You can find the sample program in the CDROM accompanying with the board. One of the execution file is “PCI_AIO.exe”. -
Page 22: System Function Description
When toggled, it receives Differential input. (4) Select Channel Write down the ADC channel value. The channel number of PCI-AIO02 is from 0 to 7. (5) „ADC Read‟ Button Reads the data value of the ADC input of the selected channel once. -
Page 23: Dac Test Function Description
Set the AD data width (bits). AD converter on board supports 12, 14, 16 bit 3 resolutions (11) CH0 ~ CH15 In case of PCI-AIO02, use only CH0 ~ CH7. 7-3 DAC Test Function Description (1) „DAC Reset‟ Button Reset the function of the DAC. -
Page 24: Select Channel Graph
PCI-AIO02 User’s Manual (6) DAC Auto Out Outputs the current DAC value automatically. 7-4 Select Channel Graph (1) Average Numbers The number of data to which the moving average is applied is designated as a number from 1 to 255. -
Page 25: Appendix
(3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 26 PCI-AIO02 User’s Manual References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. General information on PCI board API -- DAQ system 4. AN201 How to build application using APIs -- DAQ system 5. AN242 PCI-AIO01/02/04 API Programming...
- Page 27 PCI-AIO02 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
