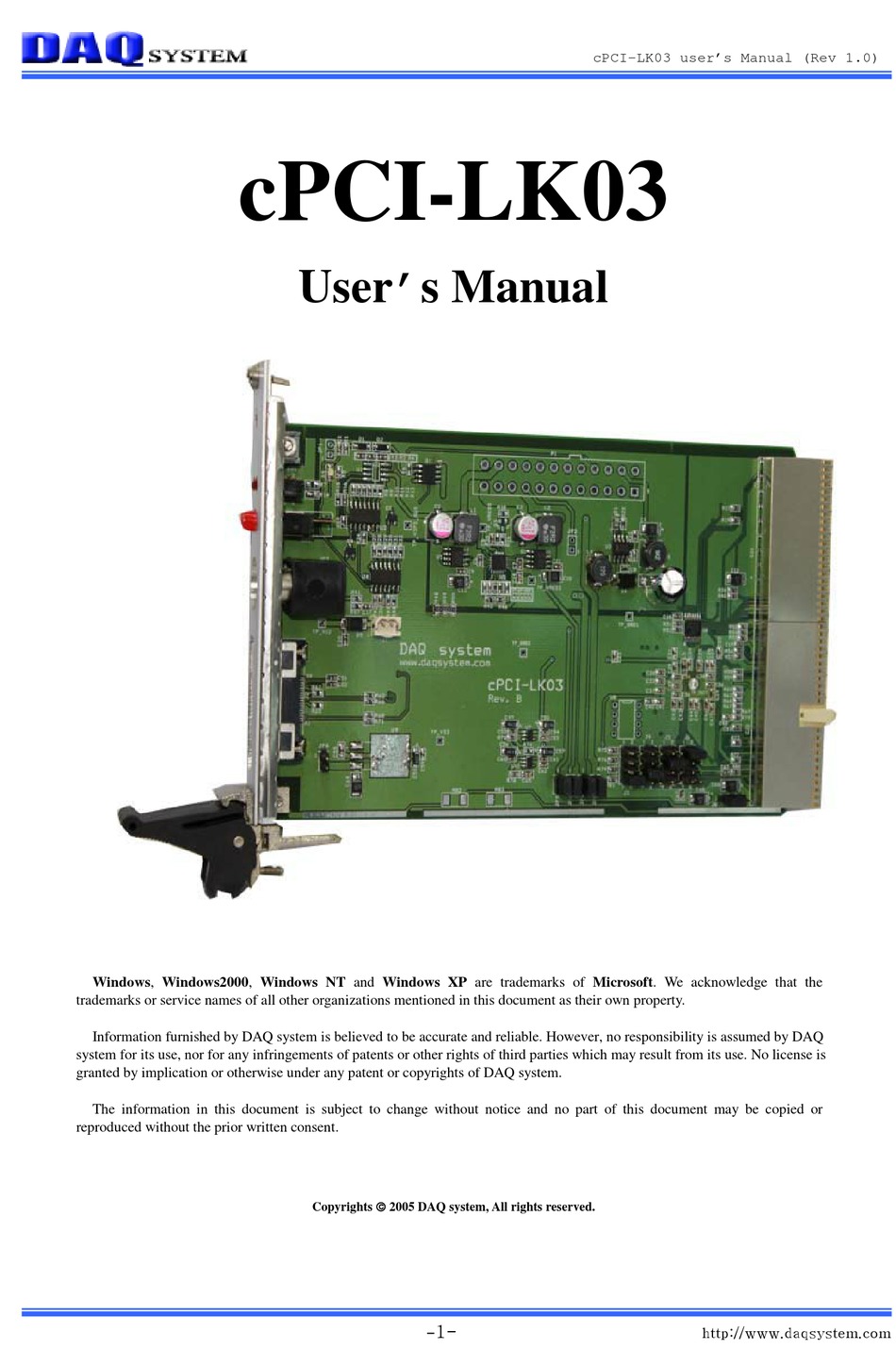

cPCI-LK03
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the
trademarks or service names of all other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the prior written consent.
User's Manual
Copyrights 2005 DAQ system, All rights reserved.
1-
-
cPCI-LK03 user's Manual (Rev 1.0)
http://www.daqsystem.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system cPCI-LK03
Summary of Contents for DAQ system cPCI-LK03
- Page 1 Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ system.
- Page 2 Manual (Rev 1.0) -- Contents -- 1. cPCI-LK03 Introduction 2. cPCI-LK03 Description 2-1. cPCI-LK03 Connection 2-2. JP3 Connecter Pin-out 2-3. J2 Connecter Pin-out Appendix A.1 cPCI-LK03 Dimension http://www.daqsystem.com...

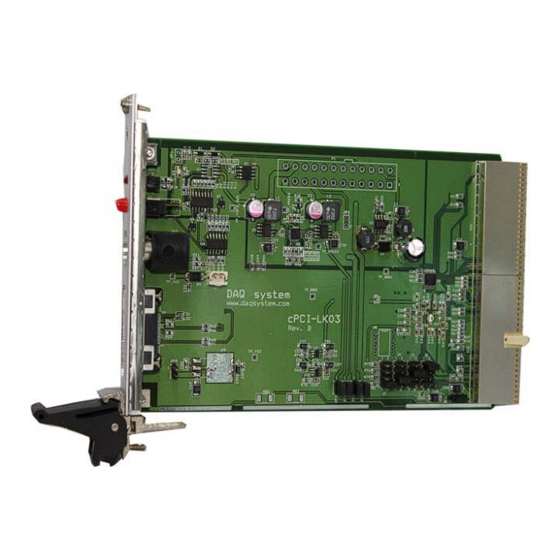

- Page 3 Manual (Rev 1.0) 1. cPCI-LK03 Introduction The cPCI-LK03 board is designed for easy access to Compact PCI solution on general Desktop or Laptop computers. It is equipped to the system slot with the Compact PCI Backplane and can access 6 Compact PCI products.
- Page 4 Manual (Rev 1.0) [Figure 1-2. eCard-LK02 and Compact PCI System Connection] [Figure 1-3. PCIe-LK12 and Compact PCI System Connection] http://www.daqsystem.com...
- Page 5 The cPCI-LK03 board can be accessed maximum 8 Compact PCI products. 2-1 cPCI-LK03 Connection [Figure 2-1. cPCI-LK03 and Compact PCI Link Board Connection] [Figure 2-1] shows that the connection of cPCI-LK03 and PCIe-LK12 (for Desktop computer) in the Compact PCI system. http://www.daqsystem.com...
- Page 6 Manual (Rev 1.0) 2-2. JP3 Connecter Pin-Out The cPCI-LK03 receives various power (12V, 3.3V AUX) through JP3 (HR10-7R-6S-RA) Mini Circular connecter for 8 Compact PCI board in the system. [Figure 2-2. cPCI-LK03 JP3 Connector Pin-out] [Table 1. JP3 Connecter Description]...
- Page 7 Manual (Rev 1.0) 2-3. J2 Connecter Pin-Out The cPCI-LK03 transmits the Express PCI signals through J2 (MDR-18) connecter. [Figure 2-3. cPCI-LK03 J2 Connector Pin-out] [Table 2. J2 Connecter Description] Name Description Remark Negative Receiver Positive Receiver No Connection...
- Page 8 Manual (Rev 1.0) Ground Ground No Connection WAKE# Wake-Up System PRESENT# Add-in Card Presence Detect Ground +3.3V +3.3V Power AUX_+5V When the power use +5V through PCI Express cable Positive Transceiver Negative Transceiver Appendix A.1 cPCI-LK03 Dimension The board size is as follows the Standard Universal (5V/3.3V) PCI 32bit form-factor.
