EMB-CPU03
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system EMB-CPU03
Summary of Contents for DAQ system EMB-CPU03
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
EMB-CPU03 User‟s Manual Contents 1. EMB-CPU03 Introduction 1-1 Features -------------------------------------------------------------------------- 1-2 Specifications --------------------------------------------------------------------------- 1-3 Applications -------------------------------------------------------------------------- 2. EMB-CPU03 Appearance ------------------------------------------------------------ 3. The order of disassembling the instrument (Assembly proceeds in the reverse order of disassembly) ------------------------------------------- 4. Windows Installation --------------------------------------------------------------------- 5. -
Page 3: Emb-Cpu03 Introduction
EMB-CPU03 User‟s Manual 1. EMB-CPU03 Introduction EMB-CPU03 is a Single Board Computer (SBC) equipped with AMD Geode LX800 Processor that provides a solution suitable for the embedded market that wants low cost, low power and small size. 1-1 Features Low cost, Low power and fan-less Single Board Computer ... -

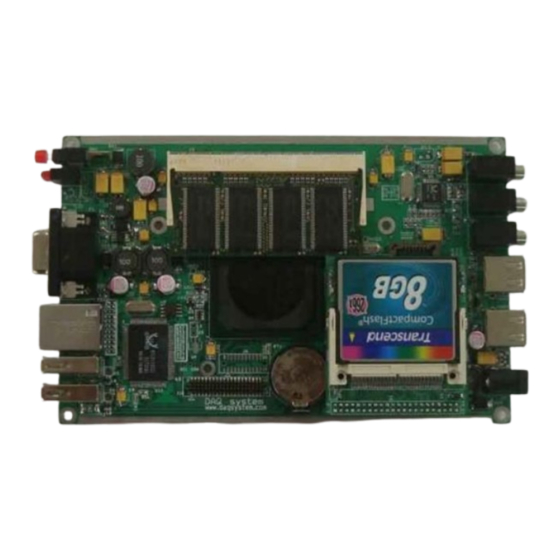

Page 4: Emb-Cpu03 Appearance

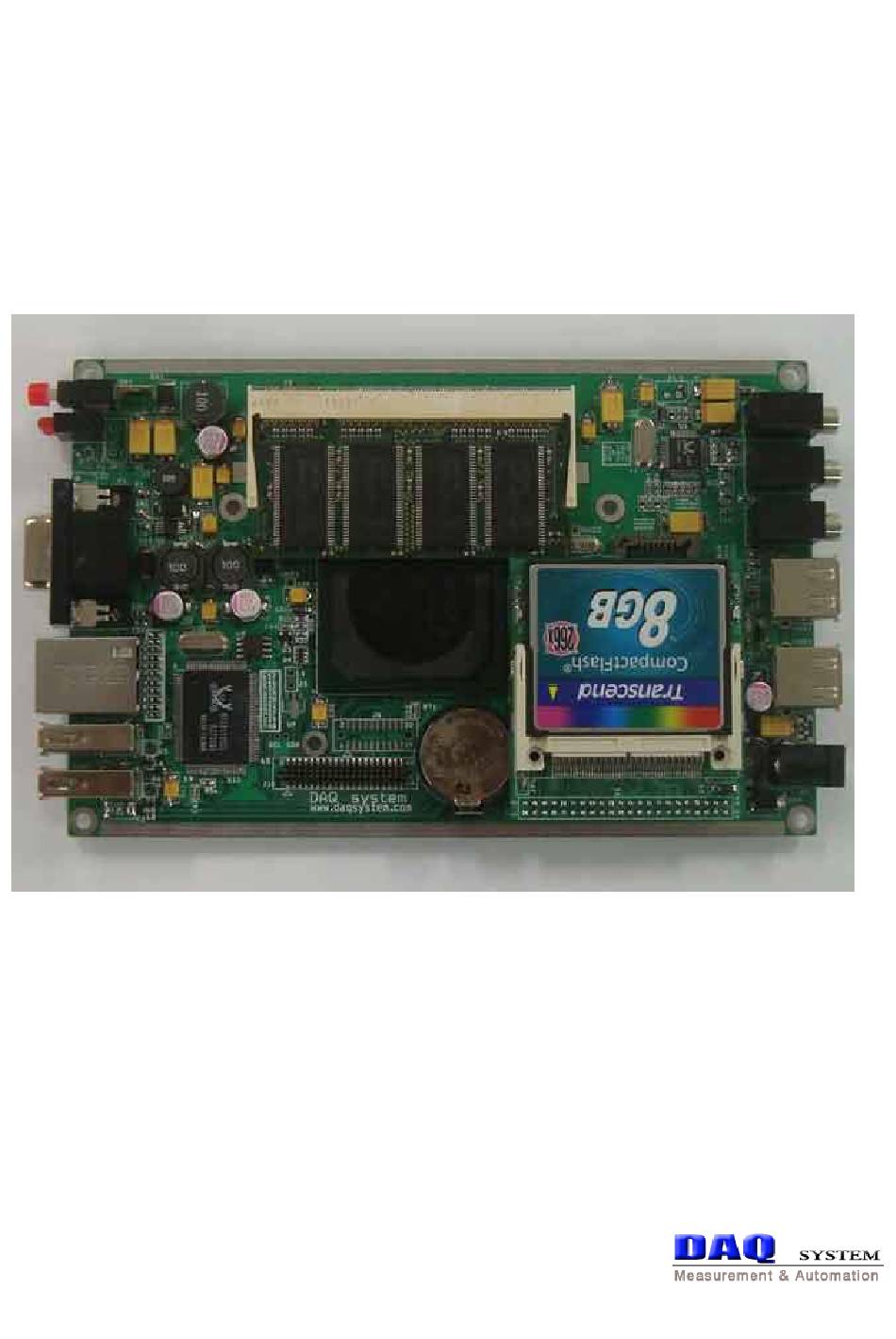

EMB-CPU03 User‟s Manual 2. EMB-CPU03 Appearance Front Side Both Sides... -
Page 5: The Order Of Disassembling The Instrument (Assembly Proceeds In The Reverse Order Of Disassembly)
EMB-CPU03 User‟s Manual 3. The order of disassembling the instrument (Assembly proceeds in the reverse order of disassembly) 1. Right side removal – 2 “+” bolts 2. LCD Separation – LCD Connector Separation... - Page 6 EMB-CPU03 User‟s Manual 1-LCD Back Light 2-Video data main 3-Touch 3. Remove the board fixing nude bolts – 8 pieces using a 0.9mm hexagon range...
- Page 7 EMB-CPU03 User‟s Manual 4. Separation of the instrument and the board – Slide to the right to separate the board CF Card...
- Page 8 EMB-CPU03 User‟s Manual 5. Removal of RAM / CF Card – RAM and HARD DISK can be installed and used according to the user IDE Pin CF card Socket Hard drives are available for CF CARD and IDE 1.8inch. CASE cannot be used when IDE 2.5inch is installed.
-
Page 9: Windows Installation
EMB-CPU03 User‟s Manual 4. WINDOWS Installation 1. Connect USB KEYBOARD, USB MOUSE, and USB CD-ROM (WINDOSW CD) to EMB-CPU03 board. Also, after connecting the monitor to the DSUB 15 PIN VGA PORT, connect the power (12V, 1.5A ~ 3A) and turn on the S/W. - Page 10 EMB-CPU03 User‟s Manual 4. “Select “USB CD-ROM Drive <- Conflict 4” in “1” and press Esc to exit. 5. Select “Save values and Exit” (shortcut “X”) and exit. 6. Booting from the USB CD-ROM is made, and you can proceed according to the Windows installation order.
-
Page 11: Driver Installation
EMB-CPU03 User‟s Manual 5. Driver Installtion - There is a driver in the CD ROM enclosed with the product.. After installing windows, you need to install the following drivers. Audio Driver Installtion MyComputer => Property => Hardware => Device Manager Choose “Audio device”. - Page 12 EMB-CPU03 User‟s Manual If you double-click the execution screen, the following screen appears. Click “HW Info” in the picture below. Click the „Auto Search Touch‟ button in “HW Info” to check the connection port.
- Page 13 EMB-CPU03 User‟s Manual - After finding the port to which the Touch Controller is connected, press the OK button. - Select “Calibrate” and press the „Calibrate‟ button on the screen below. When the screen below appears, press and hold the blinking point.
-
Page 14: Optimal Display Settings For Lcd
EMB-CPU03 User‟s Manual - If you press all the way down in the correct order, the above screen appears. Press “Yes” to exit and it is done. 5-5 Optimal Display Settings for LCD Since 800 X 480 is optimal for LCD resolution, you need to change the resolution to 800 X 480. - Page 15 EMB-CPU03 User‟s Manual When the display properties screen appears, click the Advanced button in Settings. After clicking the “Show All Modes” button in the adapter section, select 800 x 480 true color, click OK, and then click Apply. If the red circle is displayed in the display properties, the setting has been applied.
-
Page 16: Appendix
(3) All DAQSYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 17 EMB-CPU03 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
