BDI ELEMENTS 8777 Instruction Manual page 10

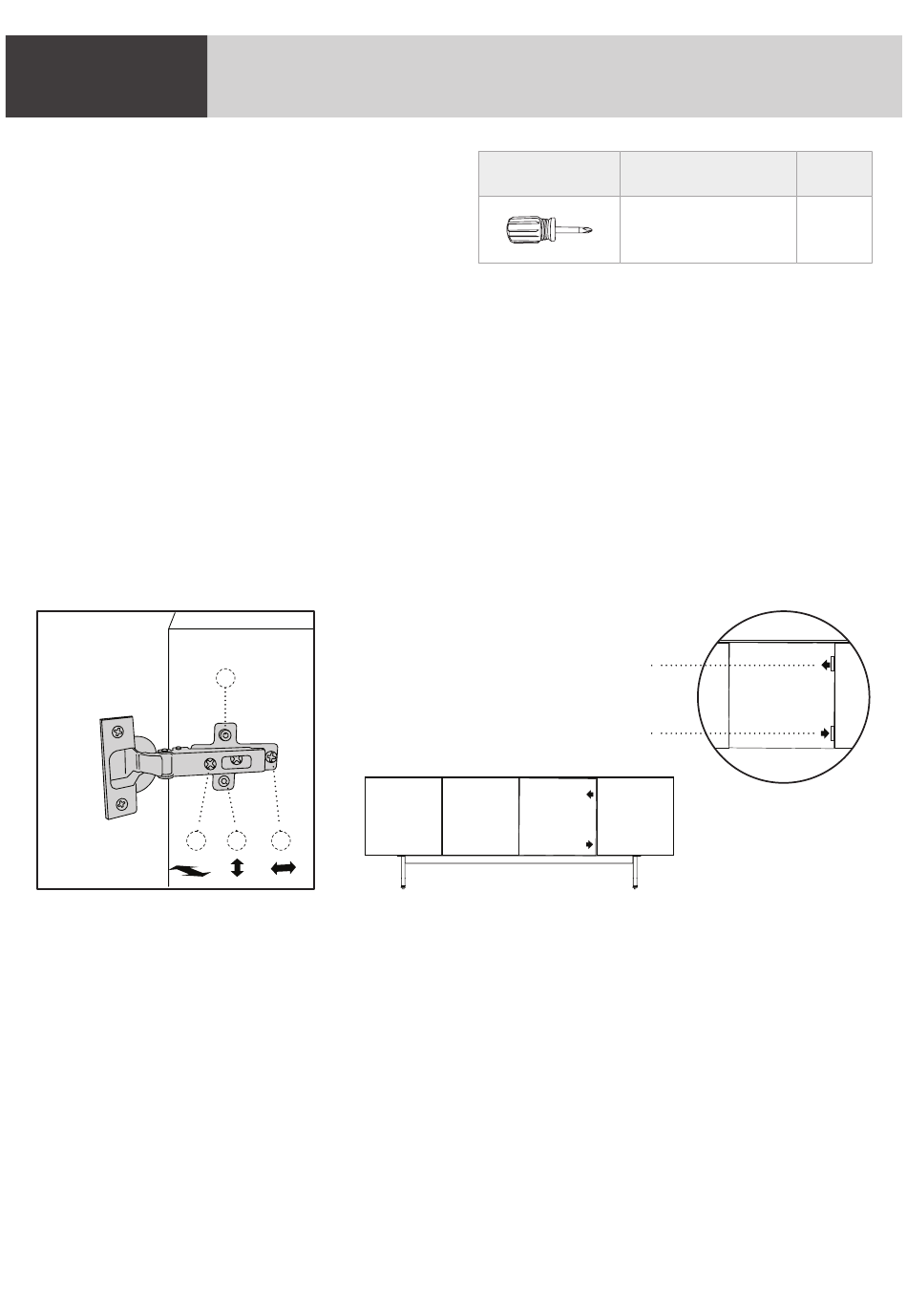

FINE TUNING
The doors on your console should be evenly
spaced and the doors should open and close
freely without rubbing against the door frame. If
the cabinet's doors appear out of alignment, this
condition can be corrected with minor adjustment
to the European hinges on each door. Because
these hinges are adjustable, adjusting one hinge element can sometimes cause the need for
adjustments to other elements. But with a few adjustments, you can modify the orientation of the
cabinet doors to make sure that they hang perfectly within your cabinet.
Use the (T1) PHILLIPS SCREWDRIVER supplied to adjust the door hinges:
n By adjusting SCREW 1, the door will move LEFT or RIGHT within the frame. Make minor
adjustments at both top and bottom hinges for best results.
n By adjusting SCREW 2, the door will move UP or DOWN.
n By adjusting SCREW 3 the entire door will move IN or OUT, opening or closing the gap between
the door frame and cabinet. (This screw rarely needs adjustment.)
1
10 | BDIUSA.COM
ADJUST DOOR HINGES (IF NEEDED)
Tightening SCREW 1 on top hinge will open
the seam between Door C & Door D here
2
Loosening SCREW 1 on this hinge will close
the seam between Door C & Door D here
Door A
2 3
Door B Door C Door D
ELEMENTS 8777 • 8779—CONSOLE BASE
PART/DESCRIPTION
T1-PHILLIPS
SCREWDRIVER
Door C
QTY
1
